Fonctionnalité
1. Bonne compatibilité : il peut être compatible avec différents tubes laser de marque 100 W-180 W, RECI, MCWlaser, EFR, YONGL, etc.
2. Réglage de la puissance du laser : entrée de 0 V à 5 V un signal analogique, peut également entrer un signal PWM.
3. circuit de commutation douce en demi-pont à courant nul. Haute efficacité et réponse rapide.
4. L'eau extérieure et la ventilation peuvent être vérifiées par un interrupteur de protection.
5. La fonction de protection en circuit ouvert peut éviter d'endommager l'alimentation du laser en cas de tube laser défectueux.
6. La tension AC 220 V ou AC 110 V peut être réglable. Garantie de 7,12 mois.
Application
1. Il a été recommandé pour une utilisation avec le tube laser MCWlaser 100W(M100) / 130W et 150W (M150 et M130) / 180W(M180).
2. Il peut également remplacer ou fonctionner avec le tube laser Co2 100W-120W / 130W-150W / 160W-200W d'une autre marque.

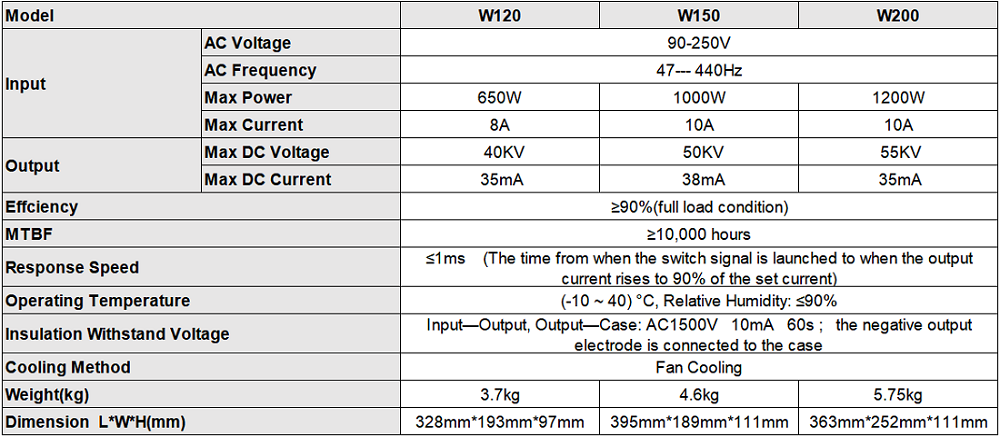

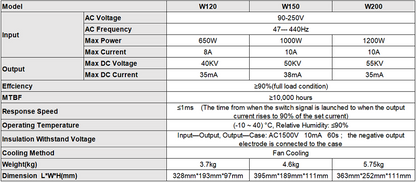

Paramètre
|
Modèle |
W120 |
W150 |
W200 |
|
|
Saisir |
Tension CA |
90 V/250 V |
||
|
Fréquence CA |
47--- 440Hz |
|||
|
Maximum d'énergie |
650W |
1000W |
1200W |
|
|
Courant maximum |
8A |
10A |
10A |
|
|
Sortir |
Tension CC maximale |
40KV |
50KV |
55KV |
|
Courant CC maximum |
35mA |
38mA |
35mA |
|
|
Efficacité |
≥90 % (condition de pleine charge) |
|||
|
MTBF |
≥10 000 heures |
|||
|
Vitesse de réponse |
≤1 ms (le temps entre le lancement du signal de commutation et le moment où le courant de sortie atteint 90 % du courant défini) |
|||
|
Température de fonctionnement |
(-10 ~ 40)。C, humidité relative : ≤90 %. |
|||
|
Tension de tenue d'isolation |
Entrée-sortie, boîtier de sortie : AC1500V 10mA 60s ; l'électrode de sortie négative est connectée au boîtier |
|||
|
Méthode de refroidissement |
Refroidissement par ventilateur |
|||
|
Poids (kg) |
3,7kg |
4,6 kg |
5,75kg |
|
|

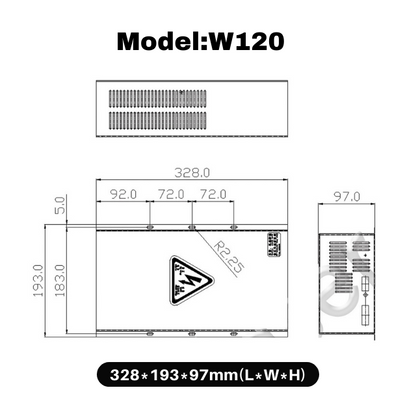

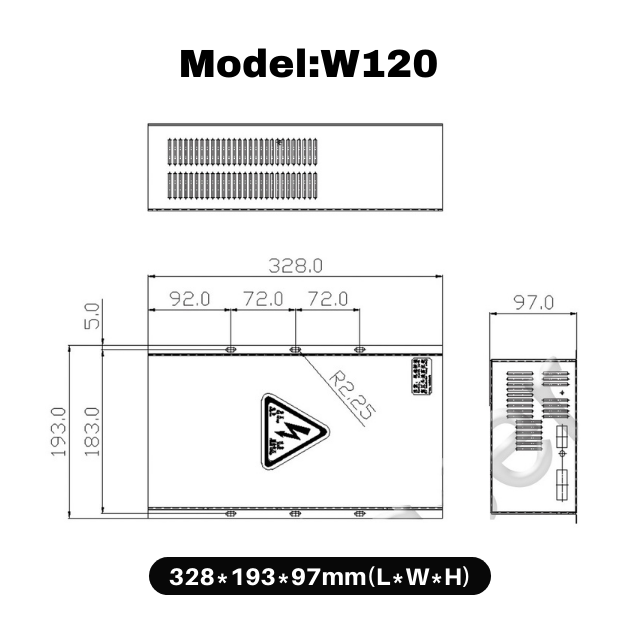

Dimension L*L*H(mm) |
328 mm*1 93 mm*97 mm |
395mm*189mm*1 11mm |
363mm*252mm*111mm |
|
