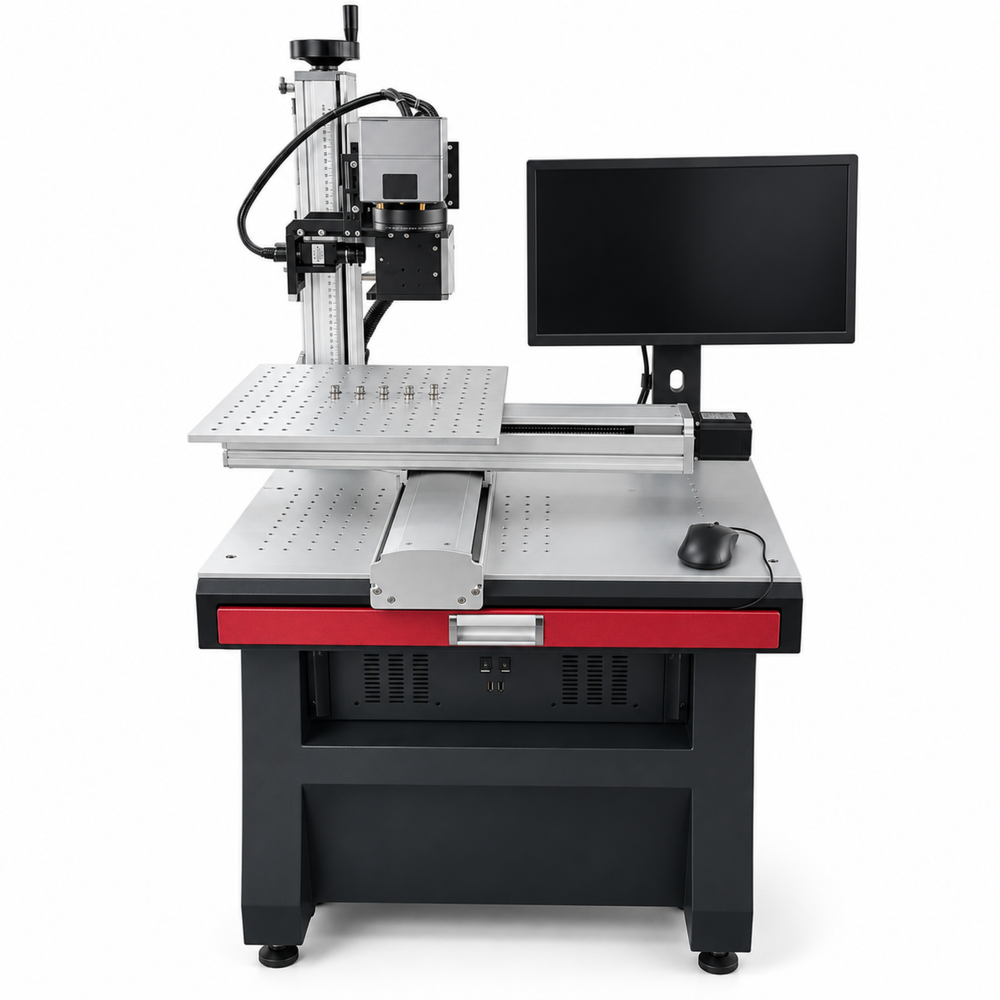

with XY Moving Table

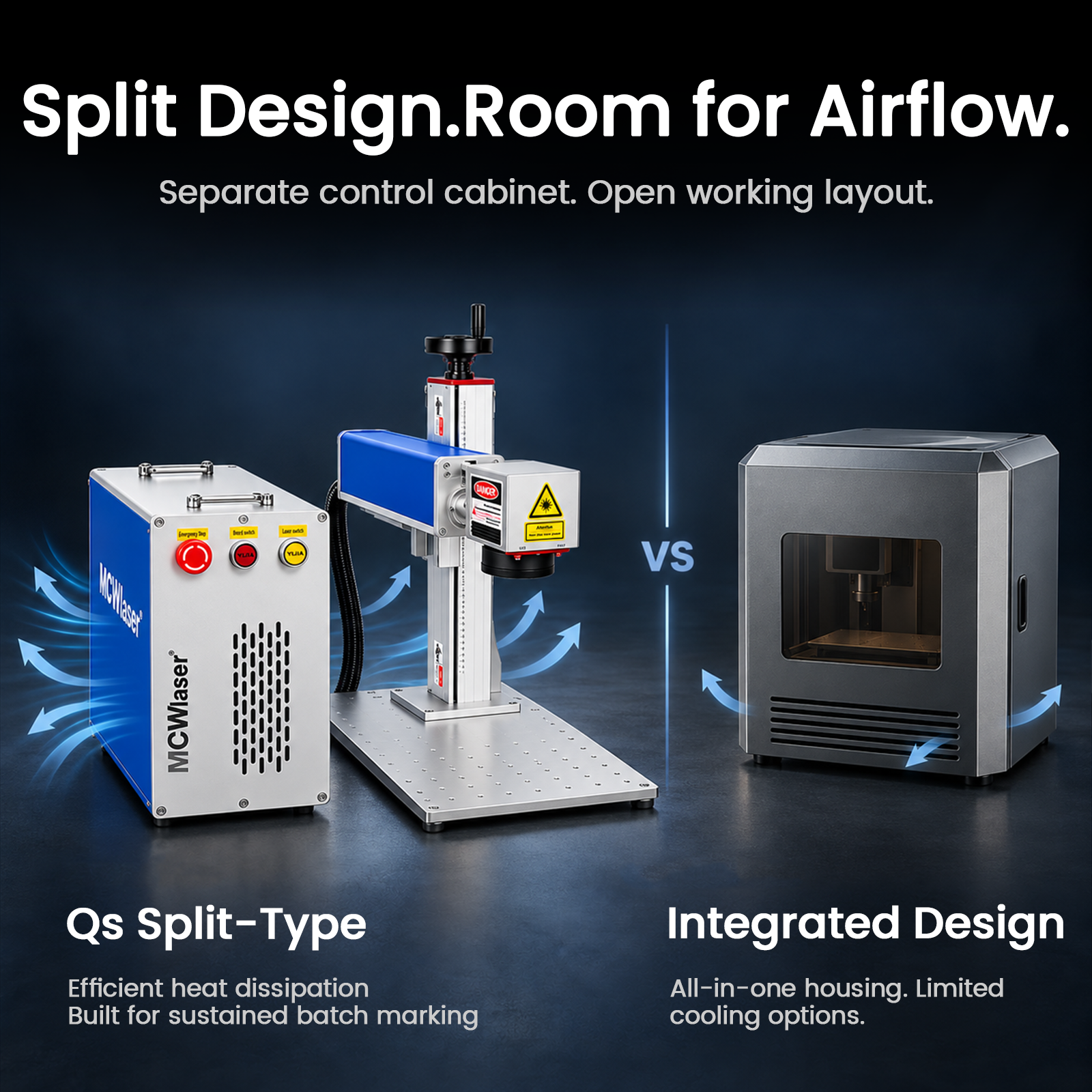

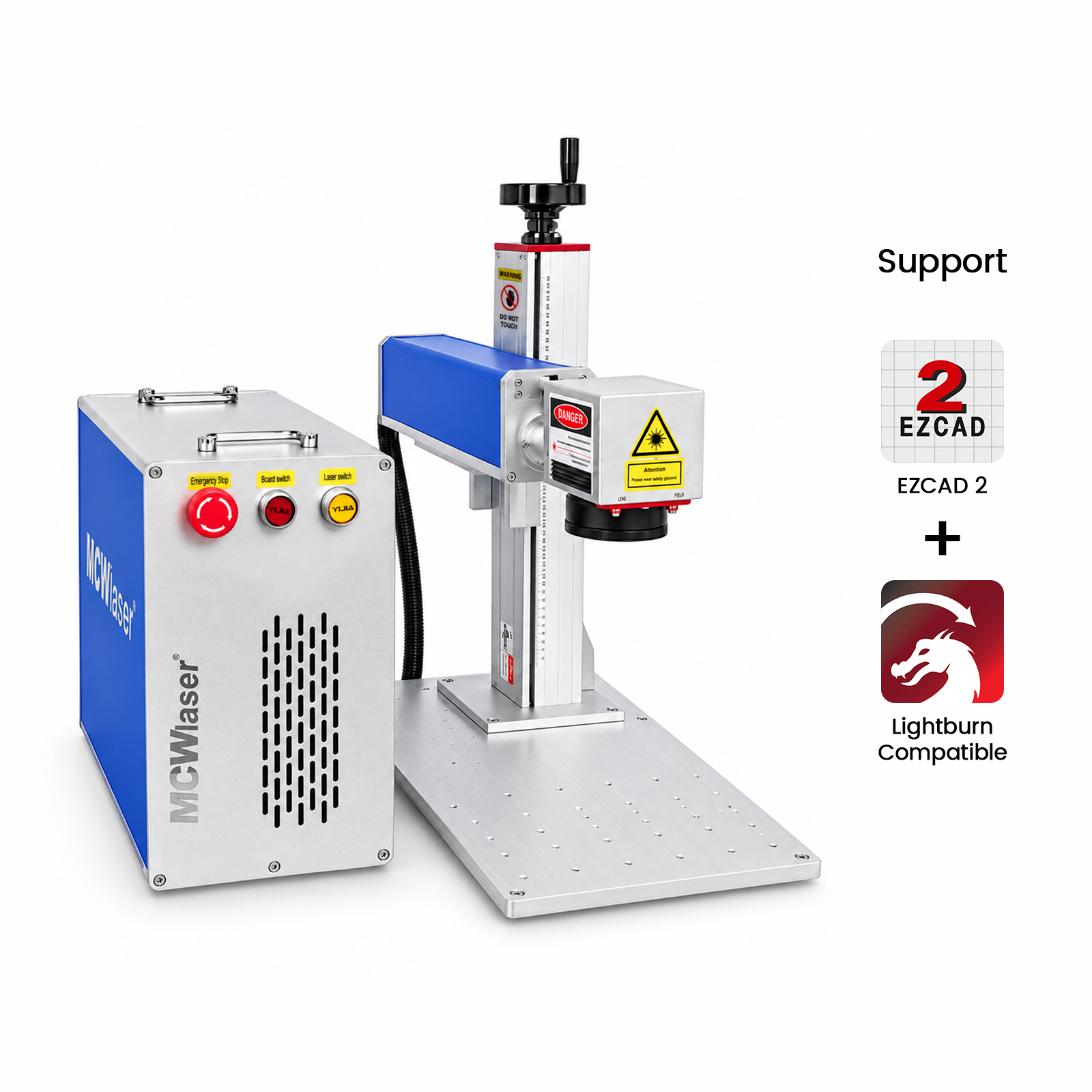

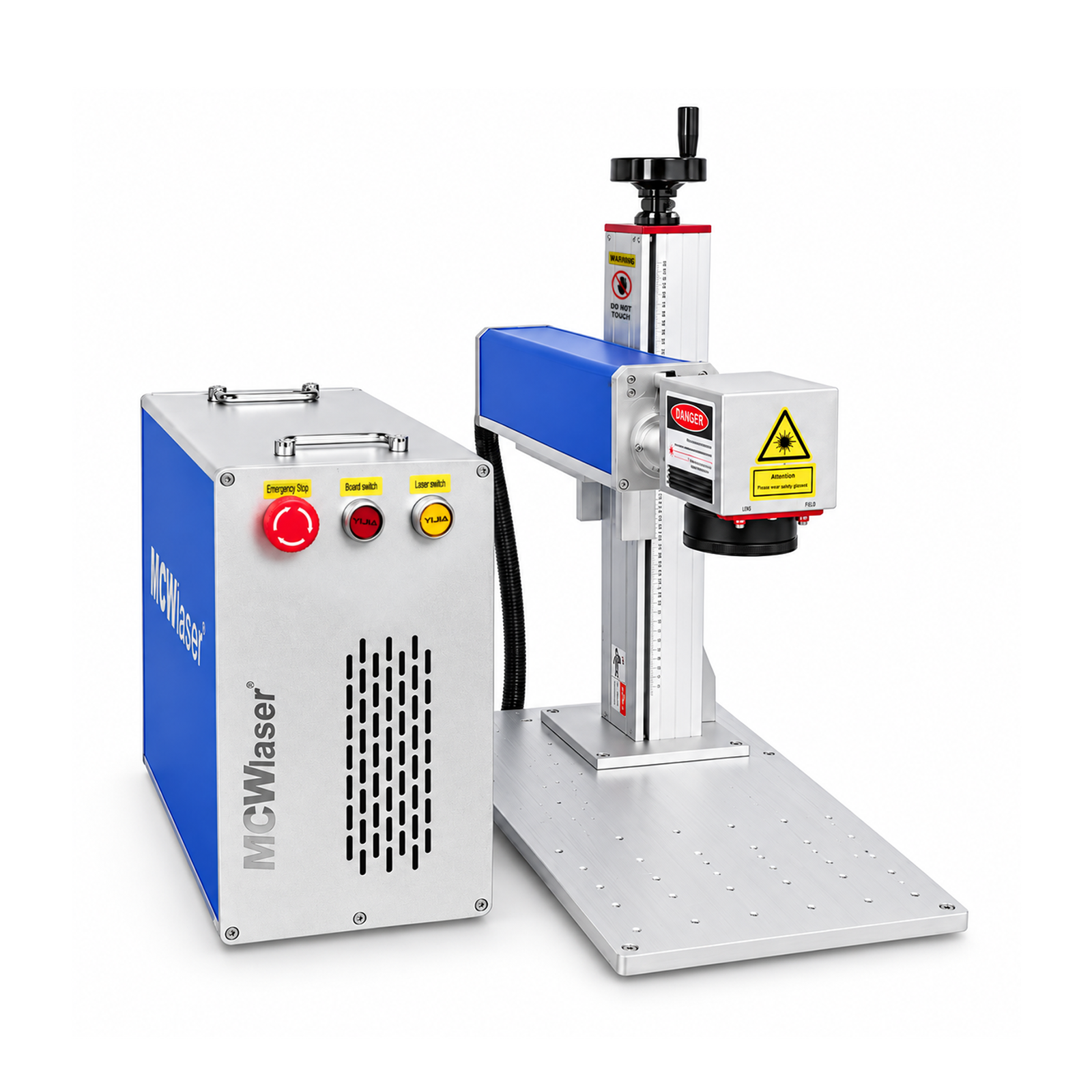

MCWlaser – graveur Laser Raycus 20W/30W/50W, Machine de marquage de Fiber de Type fendu avec zone de travail de 8.7 "X 8.7" et axe rotatif D80
FLM-FT-21R-EU
If shipping from our overseas warehouse, Order now — arrives - .
Estimer les frais d'envoi
Impossible de charger la disponibilité du service de retrait
Paramètres principaux
Puissance laser : 20 W/30 W/50 W
Source Laser: Raycus
Fréquence : 30-100 kHz
Énergie d'impulsion maximale : 1,5 mJ
Durée d'impulsion : 120-160 ns
Objectif : objectif 220x220 mm par défaut.
70x7 0mm/110x11 0mm/150x15 0mm/175x17 5mm/200x20 0mm/300x300mm en option
Longueur d'onde : 1064 nm
Axe rotatif : à trois mâchoires D80 mm par défaut.
Axe rotatif D69/D100mm/D125mm en option
Vitesse de marquage : ≤7 m/s
Logiciel : EZCad2, compatible avec Lightburn ;
Système compatible : Windows XP/Mista/Win7/Win8/Win10/Win11

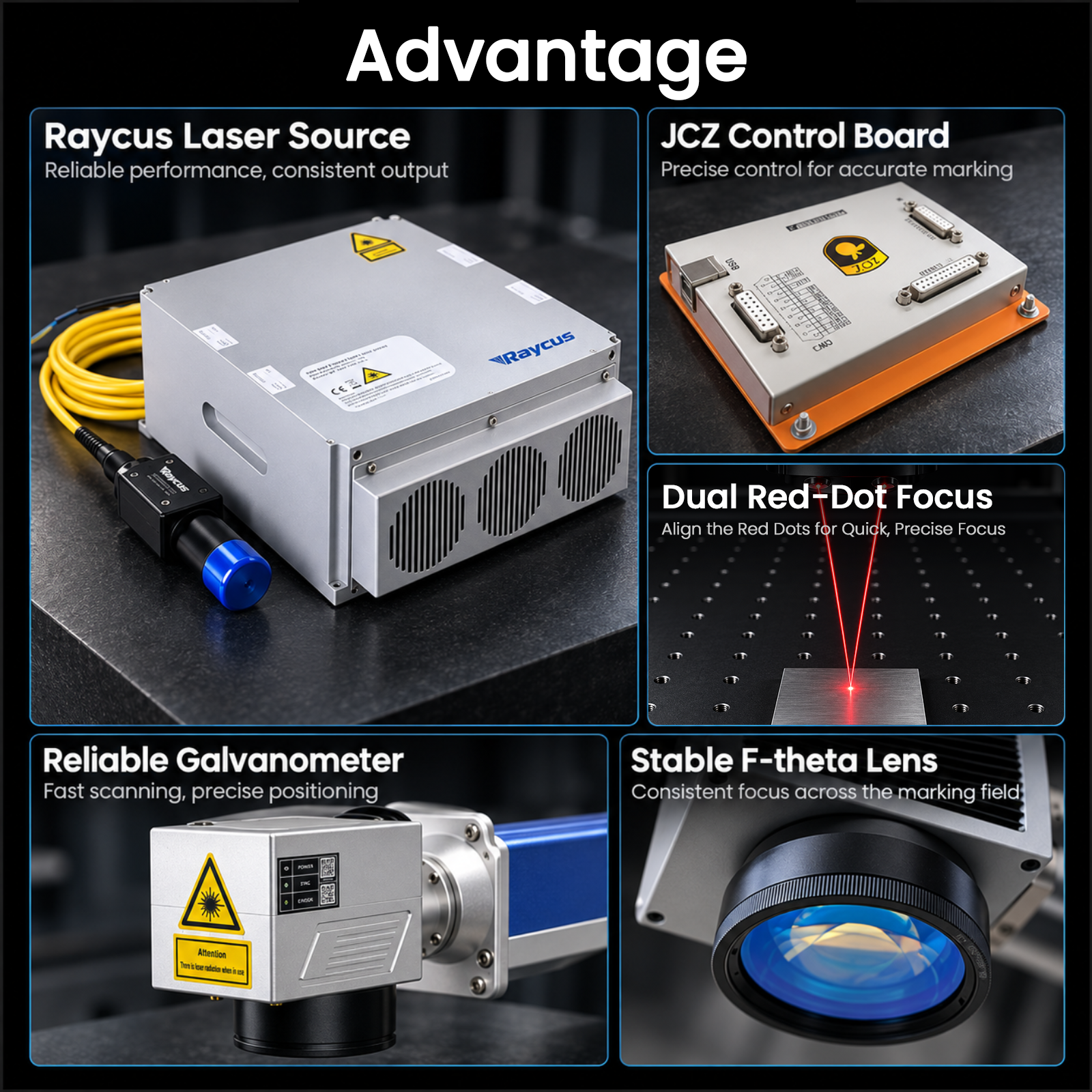

Avantage
1. La source laser Raycus a une qualité de faisceau avancée

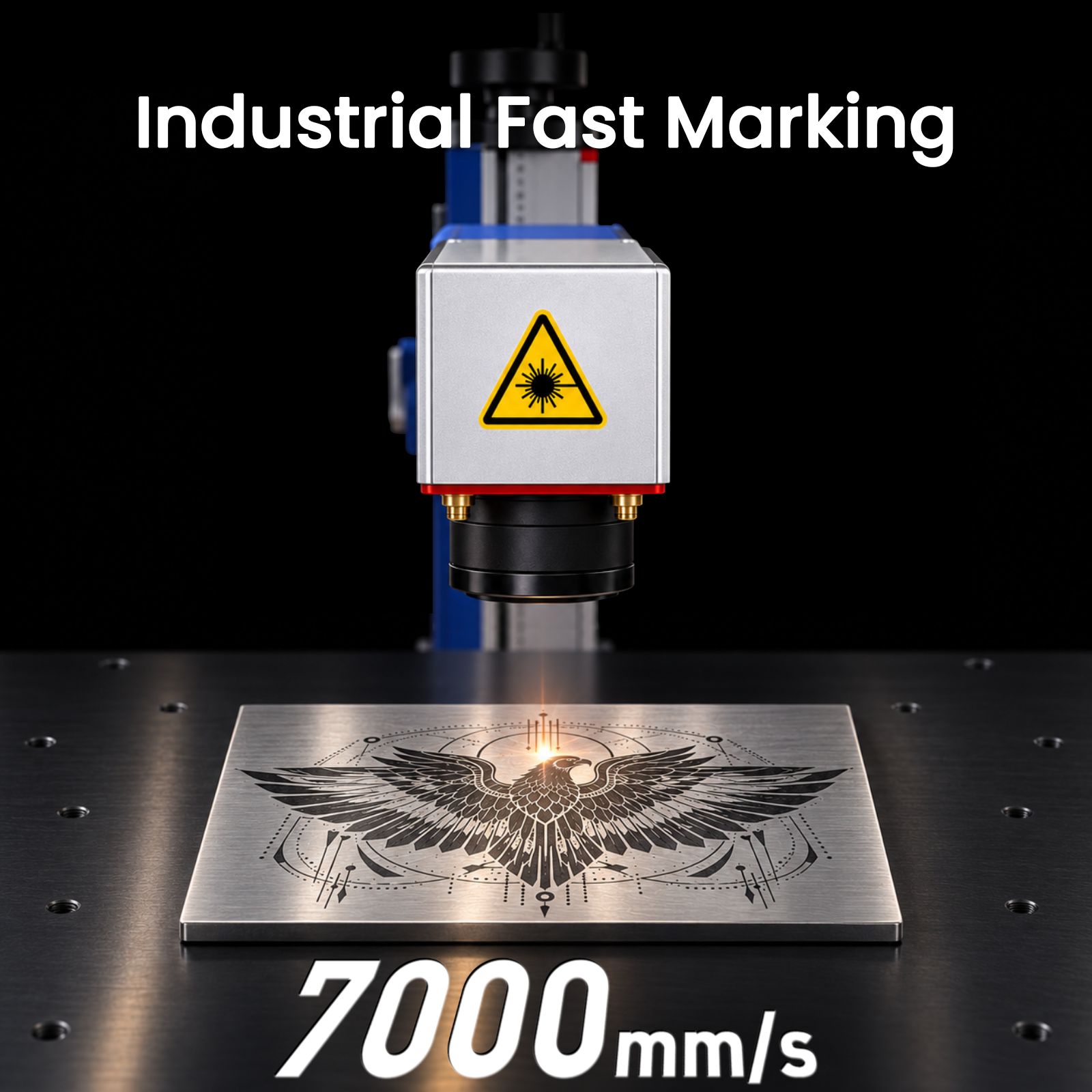

2. Vitesse de marquage galvanométrique fiable jusqu'à 7 m/s.
3. Dernier logiciel EZCAD 2.0 mis à jour (compatible avec Lightburn).
4. Objectif F-thêta stable
5. Le positionnement du double point rouge permet de trouver rapidement la mise au point.
6. Garantie de 2 ans.

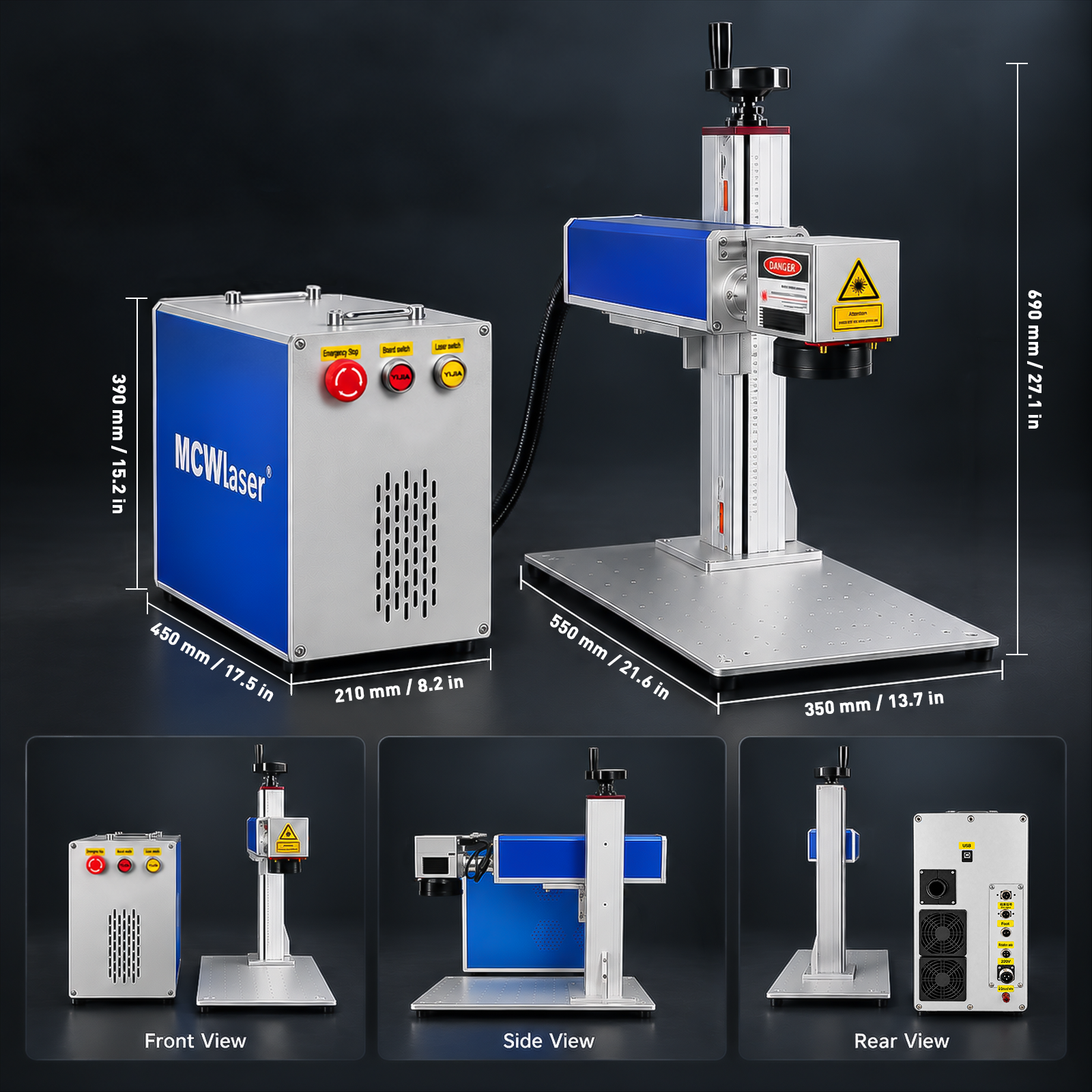

Taille poids
*Taille de la machine : 30,5x60x6 6cm/11,9x23,4x 26 pouces (L × L × H)
*Poids net : 55 kg

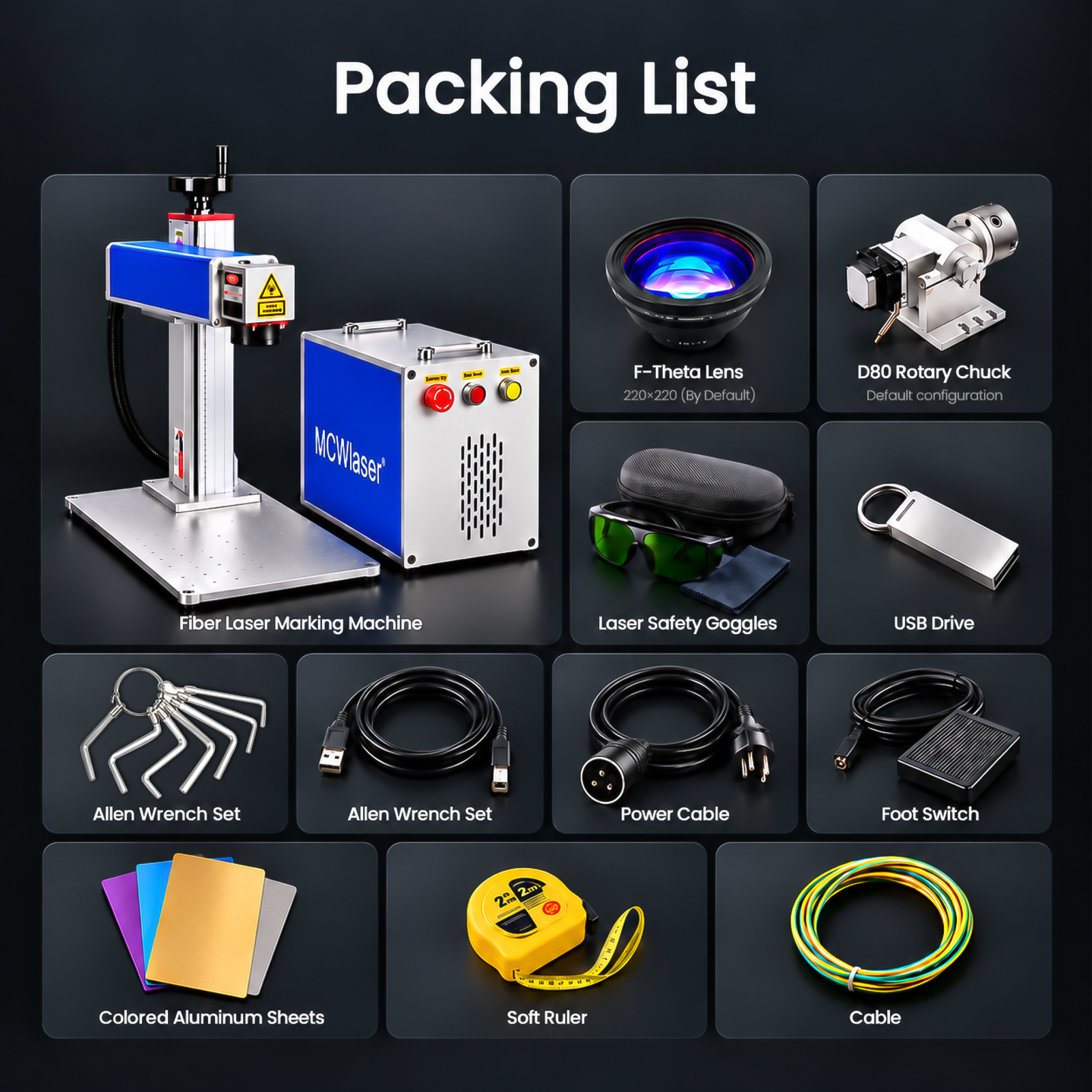

Le forfait comprend
1. Machine de marquage laser à fibre
2. Axe rotatif (D80 par défaut)
3. Lunettes de sécurité laser
4. Ruban à mesurer
5. Pédale de commande
6. Câble d'alimentation
7. Clé USB
8. Câble USB
9. Clé Allen
10. Support pour ordinateur portable
11. Feuille d'aluminium de couleur
12. Câble
13. Objectif (zone de marquage 220 x 220 mm par défaut)
Garantie
Garantie mondiale 2 ans
Pièces de rechange gratuites pendant la période de garantie
Attestation
Conforme à la FDA
Certification CE
Application
Il est principalement utilisé pour le processus de marquage fin et profond des matériaux métalliques et non métalliques. Tels que l'acier inoxydable, artificiel, l'aluminium, l'or, l'argent, le laiton, le titane, le tungstène, l'acier, le cuir, l'acrylique, les plastiques durs, la brique, le granit, le marbre, le carrelage, l'ABS, le PVC, la céramique, la pierre, etc.
Il est largement utilisé pour marquer des bijoux, des claviers de téléphone portable, des pièces automobiles, des composants électroniques, des appareils électroniques, des appareils de communication, des articles sanitaires, des boucles, des ustensiles de cuisine, des équipements sanitaires, des outils matériels, des couteaux, des lunettes, des horloges, des cuisinières, des produits en acier inoxydable, etc. .
Téléchargement manuel
En anglais : Télécharger
En allemand : Télécharger

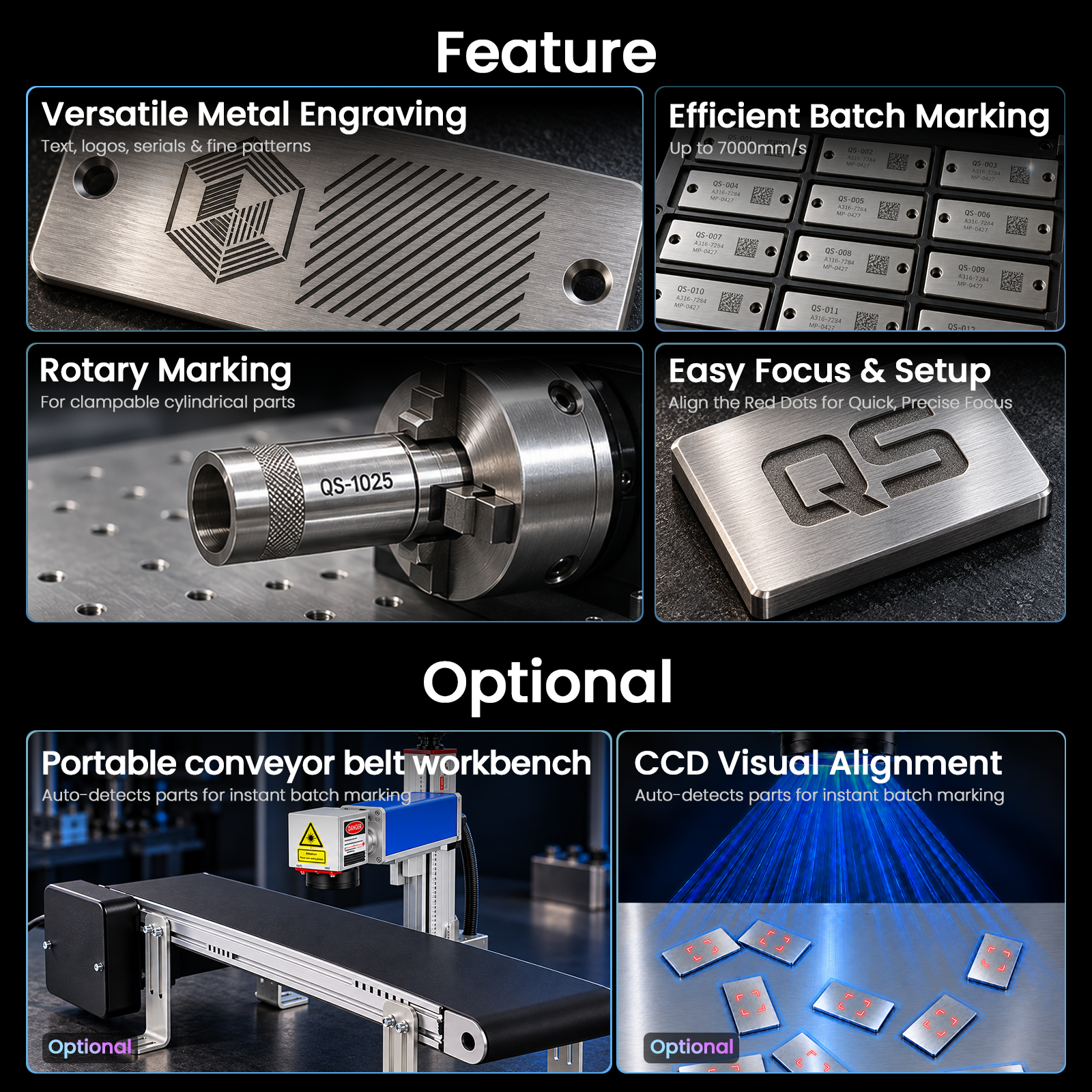

Precision Marking
Equipped with an original Raycus laser, it delivers sharp, high-contrast, permanent marks on a wide range of metals—ideal for logos, serial numbers, and QR codes.
Deep Engraving
Equipped with authentic Raycus laser source, it delivers precise deep‑engraved permanent indentations on various materials for part numbers, industrial markings and heavy‑duty identification.
Specifications
| Laser Power | 20W30W50W |
| Marking Area | 220×220mm by default; 50×50mm / 70×70mm / 110×110mm / 150×150mm / 175×175mm / 200×200mm / 300×300mm optional |
| Laser Type | Raycus Laser Source |
| Laser Wavelength | 1064nm |
| Frequency of Pulse | 30~60 KHz | 40~60 KHz | 50~100 KHz |
| Pulse Duration | 120~150 ns | 130~160 ns | 120~150 ns |
| Engraving Depth | ≤0.2mm | ≤0.4mm | ≤1.0mm |
| Marking Speed | ≤7m/s (275.6in/s) |
| Beam Quality | M²<1.6 | M²<1.5 | M²<1.6 |
| Repeat Marking Depth | ≤0.2mm (Depends on the material) |
| Reposition Accuracy | ±0.002 mm |
| Output Power Adjustment | 1~100% |

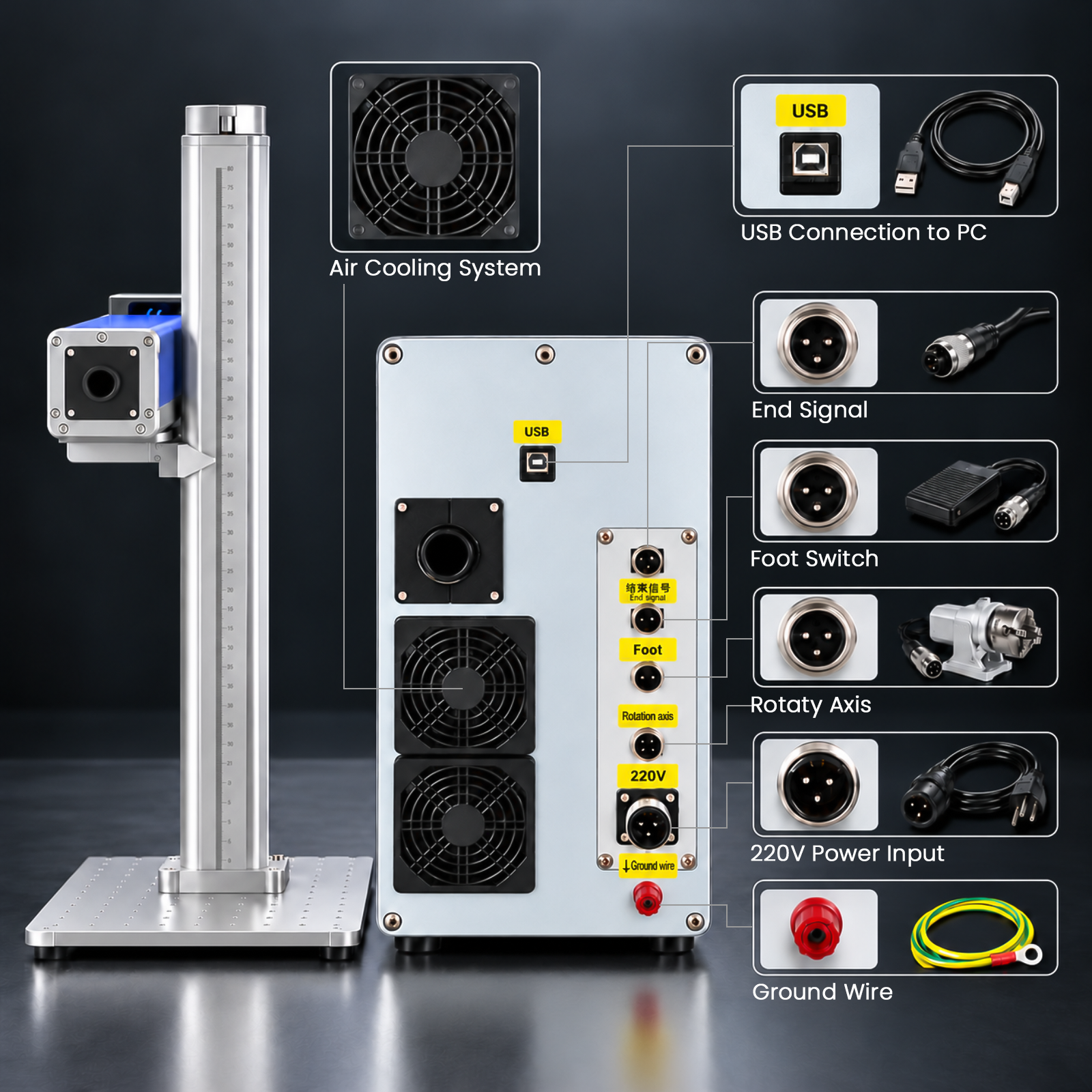

| Operation System | Microsoft Windows XP or Windows 2000, WIN7, WIN8, WIN10, WIN11 |
| Supported File Format | PLT, PCX, DXF, BMP, etc |
| Control Board & Software | Genuine JCZBoard; EzCAD2.0 (Standard) |
| Cooling Mode | Air Cooling |
| Operation Temperature | 0~40°C |
| Electrical Requirements | 110V~240V / 50Hz~60Hz |
| Power Consumption | <500W | <500W | <1000W |
| Warranty | 2-Years |
Sleek Anodized Aluminum
Crisp, high-contrast white marks
on anodized aluminum bring
custom artwork and logos to life
smoothly。
Large-Area Batch Marking
Expandable up to 300x300mm
area, handling multi-item array
marking with high speed and
precision.
Clear Industrial Traceability
Crisp QR codes and serial
numbers on metal nameplates
ensure complete tracking for your
production line。
Fine Jewelry Engraving
Micro-precise inner and outer ring
marking delivers elegant text and
patterns for custom jewelry
Durable Keycaps & Plastics
Clean, heat-contrast marking on
ABS/PBT plastics leaves crisp
legends without damaging
surfaces。
Personalized Gift Customing
Fine line engraving on brass and
stainless steel creates lasting
keepsakes, jewelry, and tags.
360° Seamless Drinkware
High-contrast laser stripping on
coated tumblers creates
full-wrap, eye-catching custom
artwork.
Sleek Anodized Aluminum
Crisp, high-contrast white marks
on anodized aluminum bring
custom artwork and logos to life
smoothly。
Large-Area Batch Marking
Expandable up to 300x300mm
area, handling multi-item array
marking with high speed and
precision.
Clear Industrial Traceability
Crisp QR codes and serial
numbers on metal nameplates
ensure complete tracking for your
production line。
Fine Jewelry Engraving
Micro-precise inner and outer ring
marking delivers elegant text and
patterns for custom jewelry
Durable Keycaps & Plastics
Clean, heat-contrast marking on
ABS/PBT plastics leaves crisp
legends without damaging
surfaces。
Personalized Gift Customing
Fine line engraving on brass and
stainless steel creates lasting
keepsakes, jewelry, and tags.
360° Seamless Drinkware
High-contrast laser stripping on
coated tumblers creates
full-wrap, eye-catching custom
artwork.
Parameter
- 57/76 Stepper motor: 1m long cord, 4 pins and 1 spare spring.
- 180° rotary positioning;elevation angle 45°/ 90°
Feature
- Stainless steel material.
- Synchronous wheel drive;Effectively eliminate jitter.
- Rotary spring clamping, improve workeffciency
- Use aviation plug fits various board card
Optional Dia
- 80mm (3.15 in) BY Default
- 69mm(2.7in)
- 100mm(3.94 in) / 125mm (4.92 in) / 160mm (6.3 in) / 200mm(7.87 in) / 300mm(11.81 in)
Expanded Application

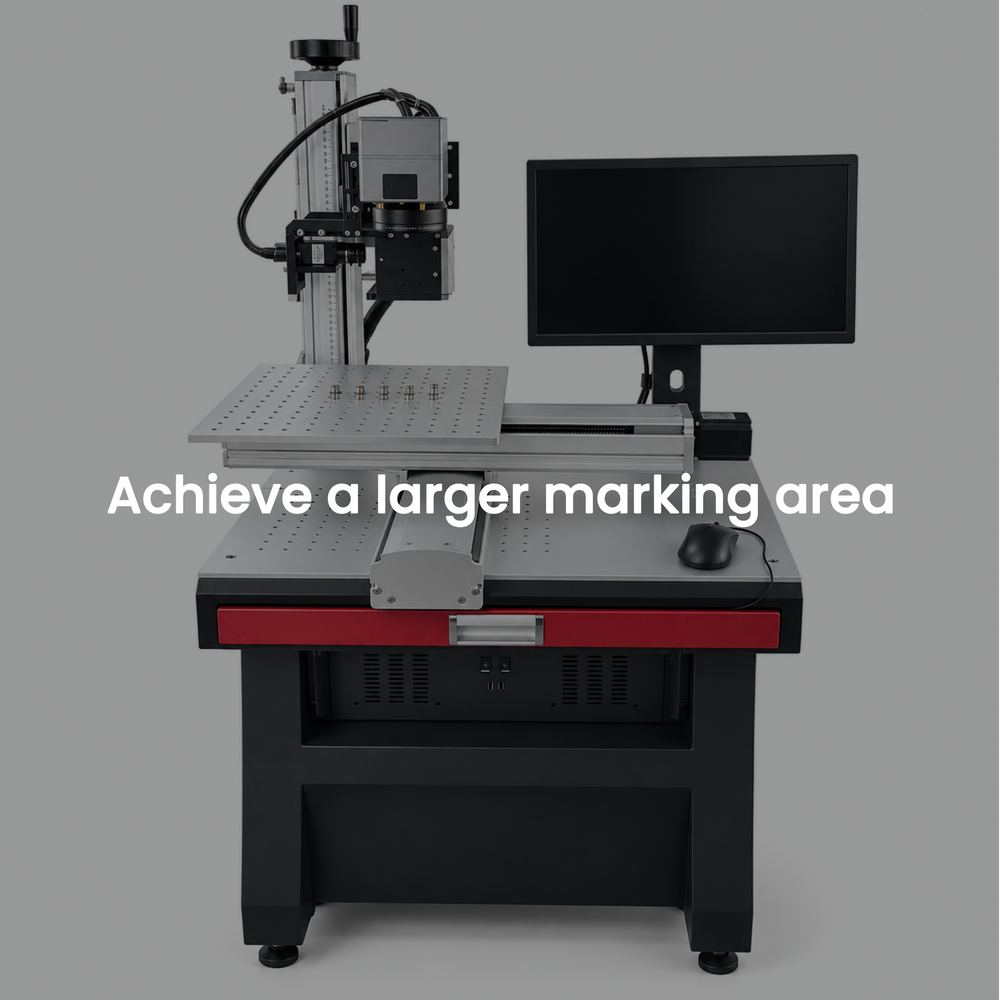

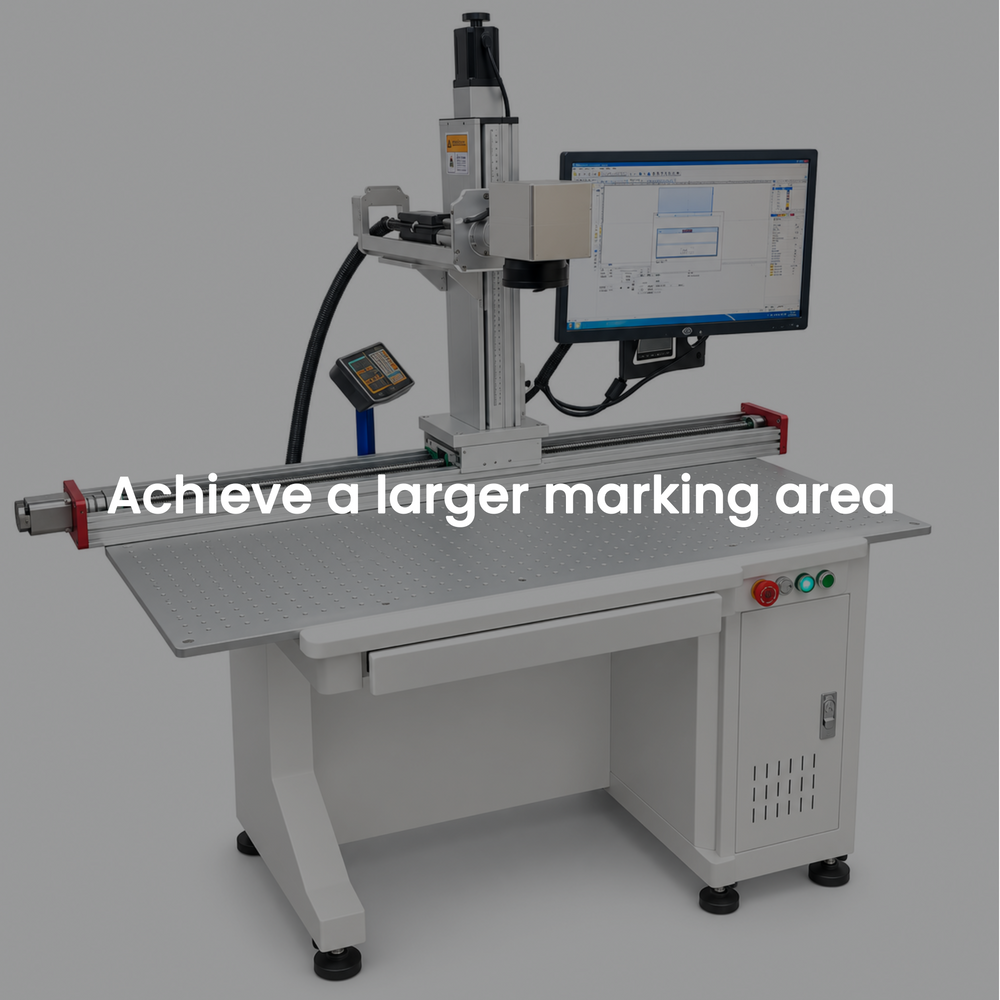

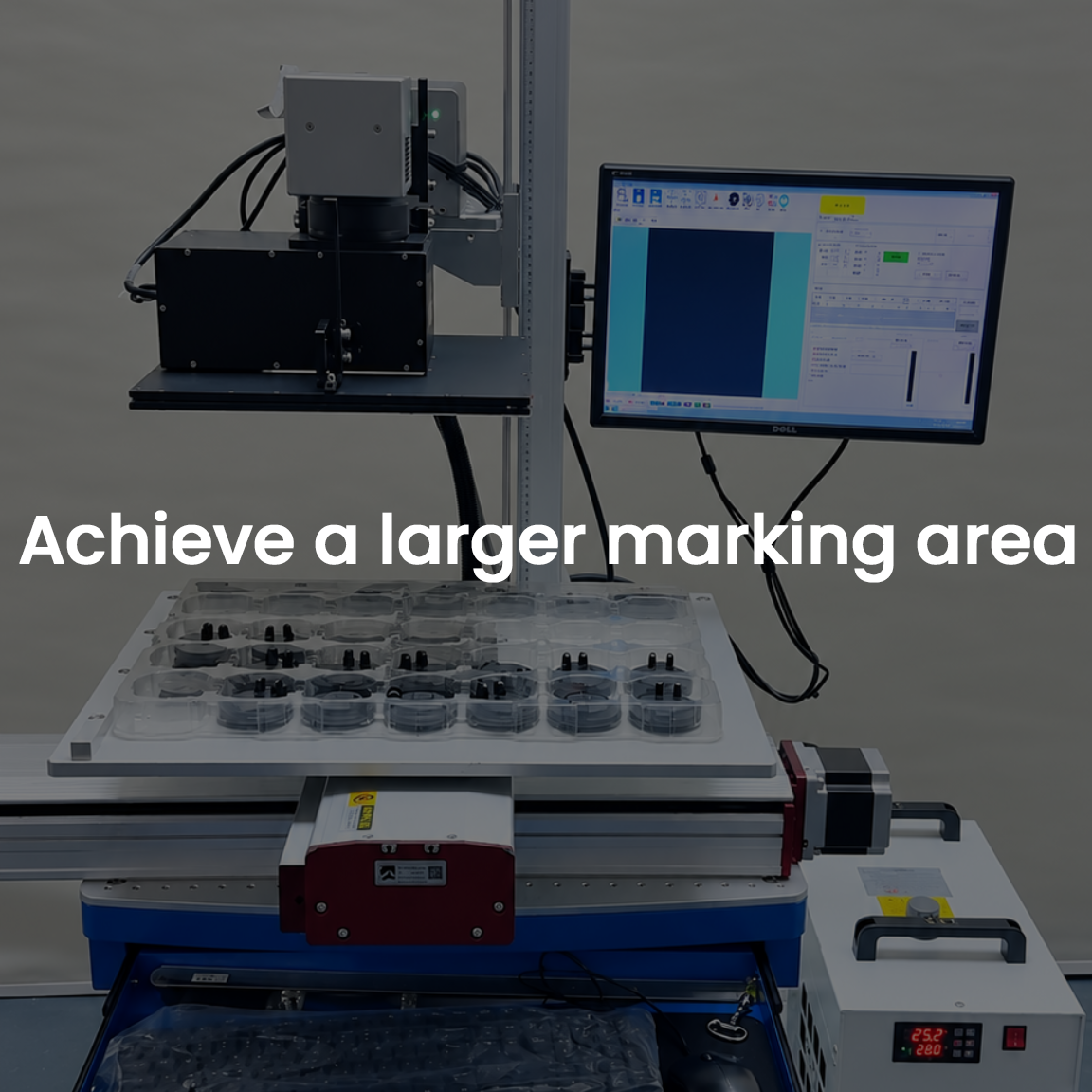

Laser marking machines equipped with a vision positioning system and motorized XY axes can use a camera to identify the position and angle of workpieces. Combined with precise movement of the worktable, this enables automatic positioning and batch laser marking of multi-station and arrayed workpieces.

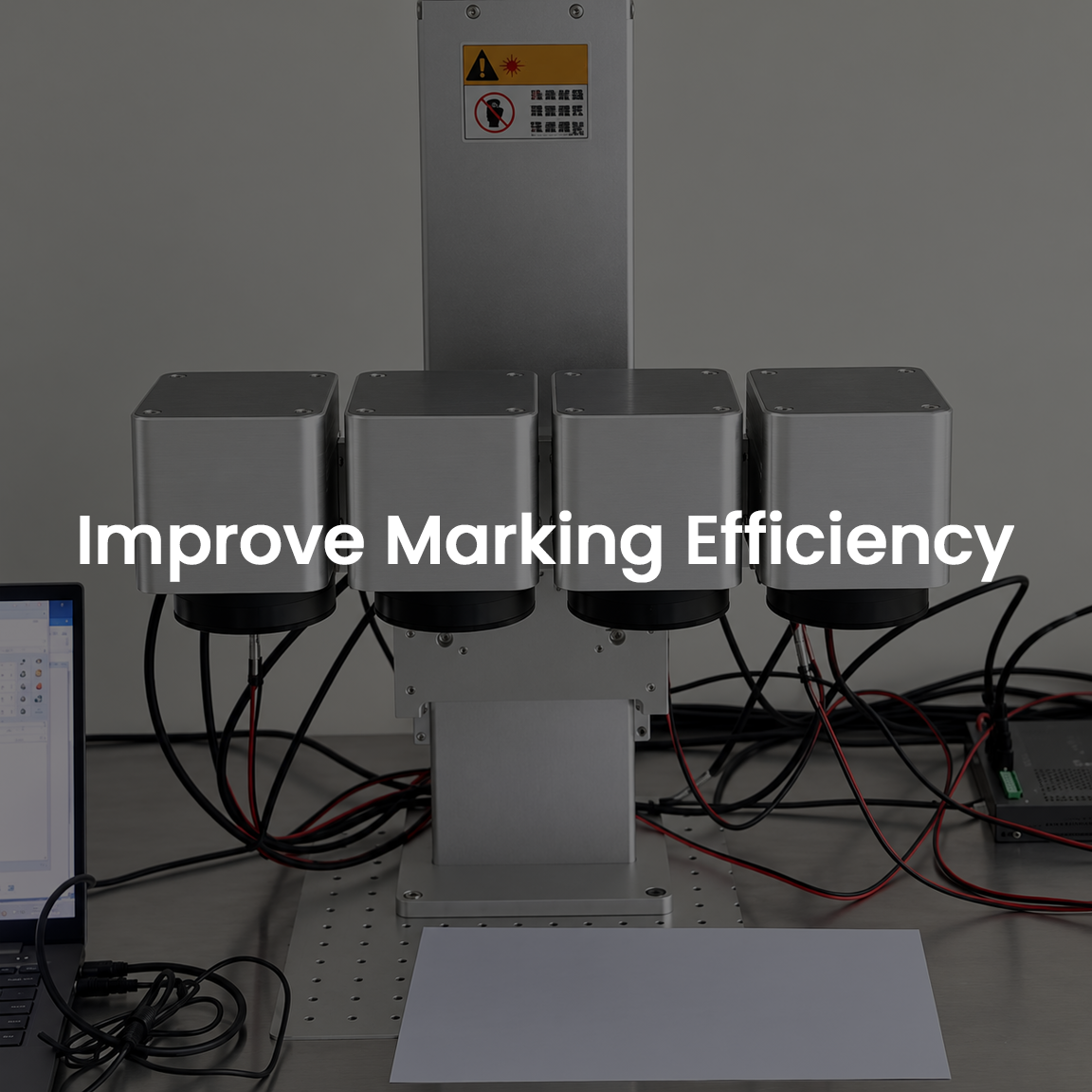

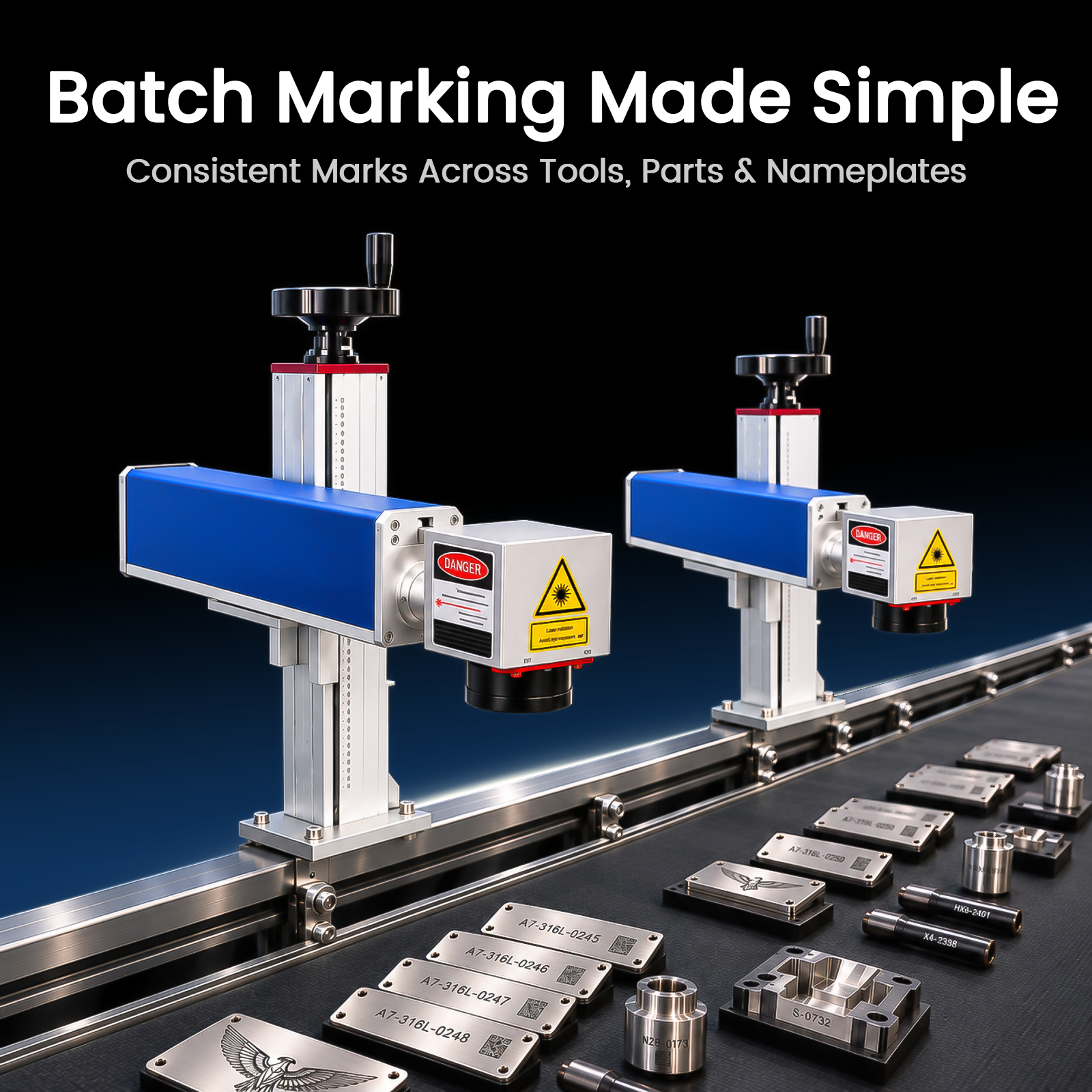

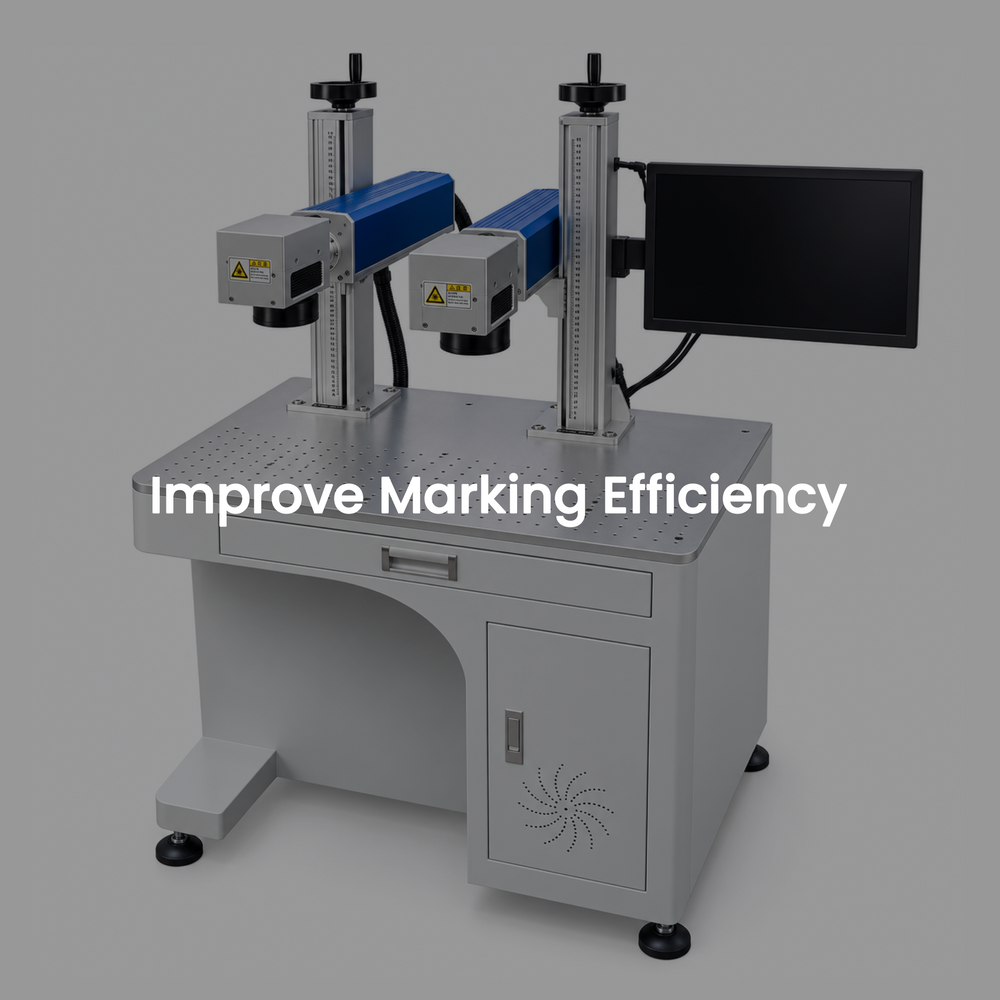

Multiple laser marking heads simultaneously mark multiple workpieces or different areas of one product, supporting mass production and multi-station processing. Coordinated heads with specialized fixtures or automated conveyors reduce repetitive positioning and waiting times, improving batch laser marking efficiency while ensuring consistent results across production.

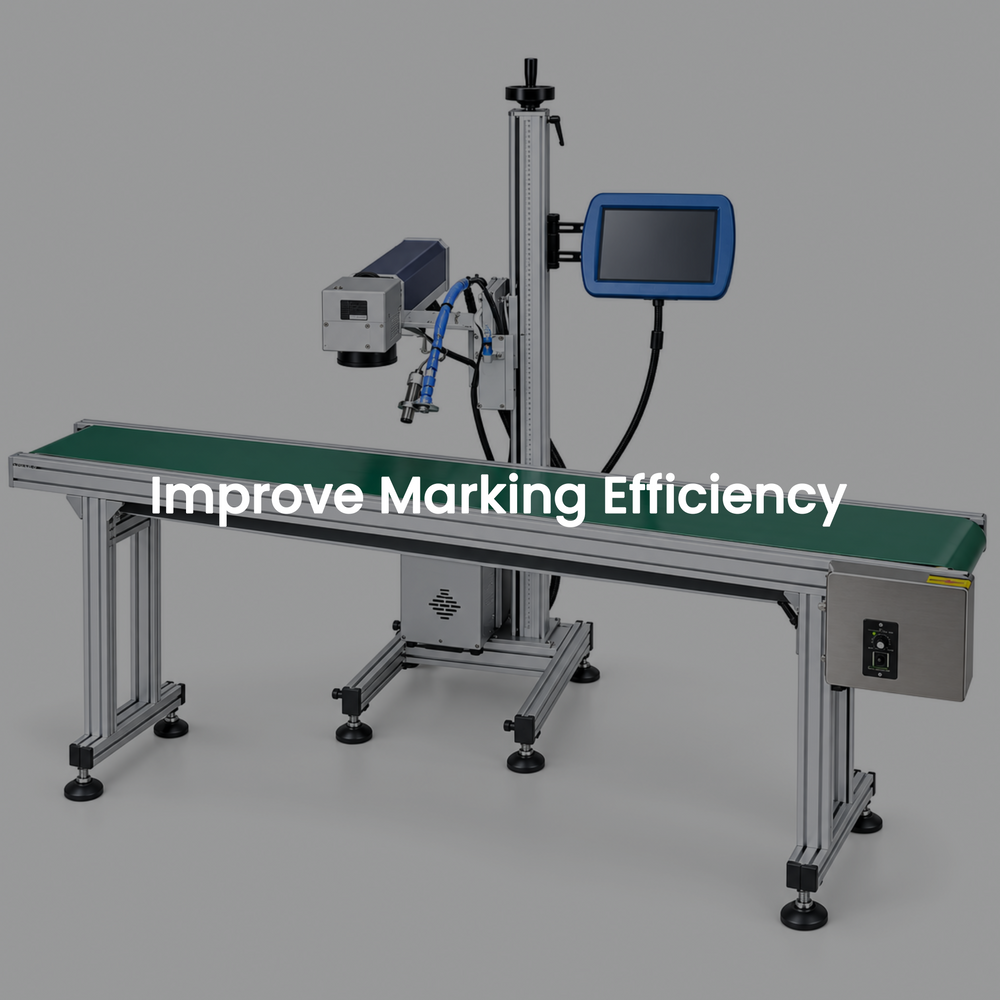

Vision-guided laser marking machines with conveyor-belt workstations enable continuous feeding, precise positioning, and batch marking, reducing manual alignment and reclamping. They mark text, serial numbers, QR codes, and logos on metal, electronic, hardware, and automotive parts, improving automated production efficiency, marking consistency, and product traceability.
Other Models

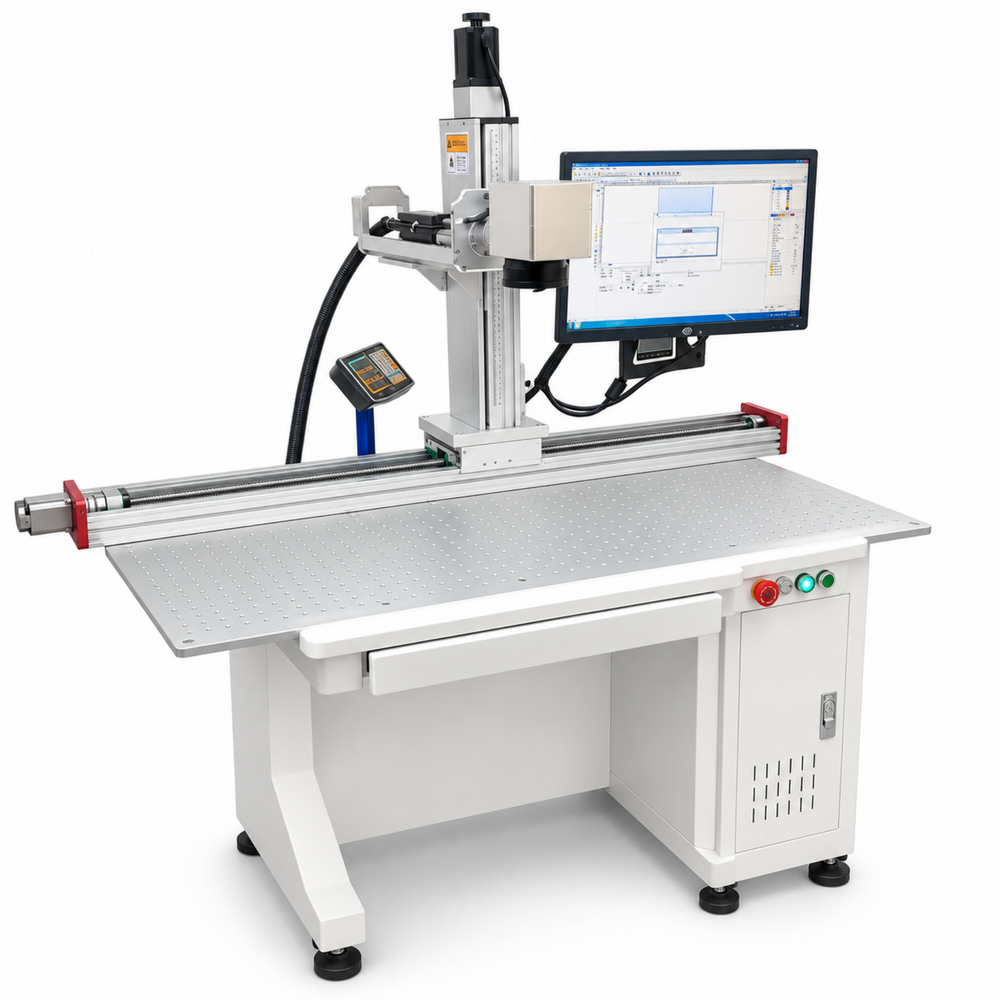

Slide-Rail Type

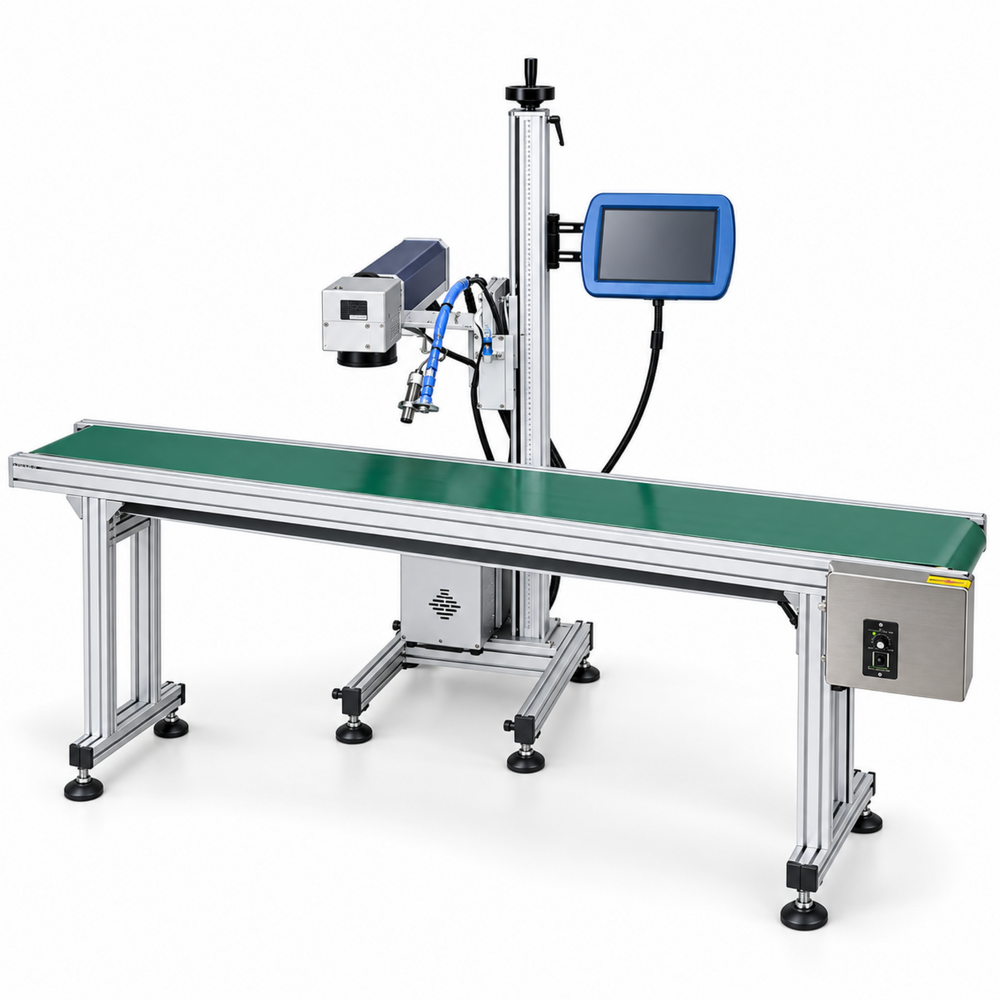

MOF

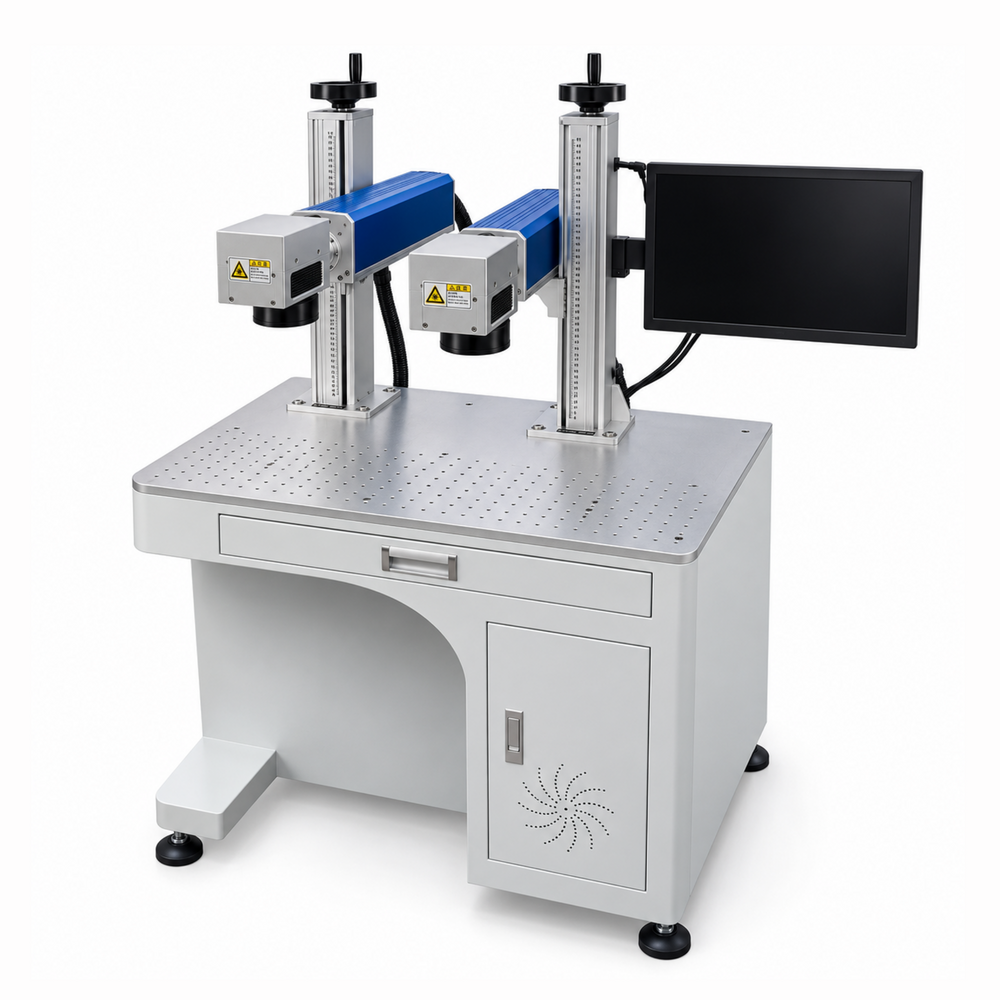

Muti-Laser Marking

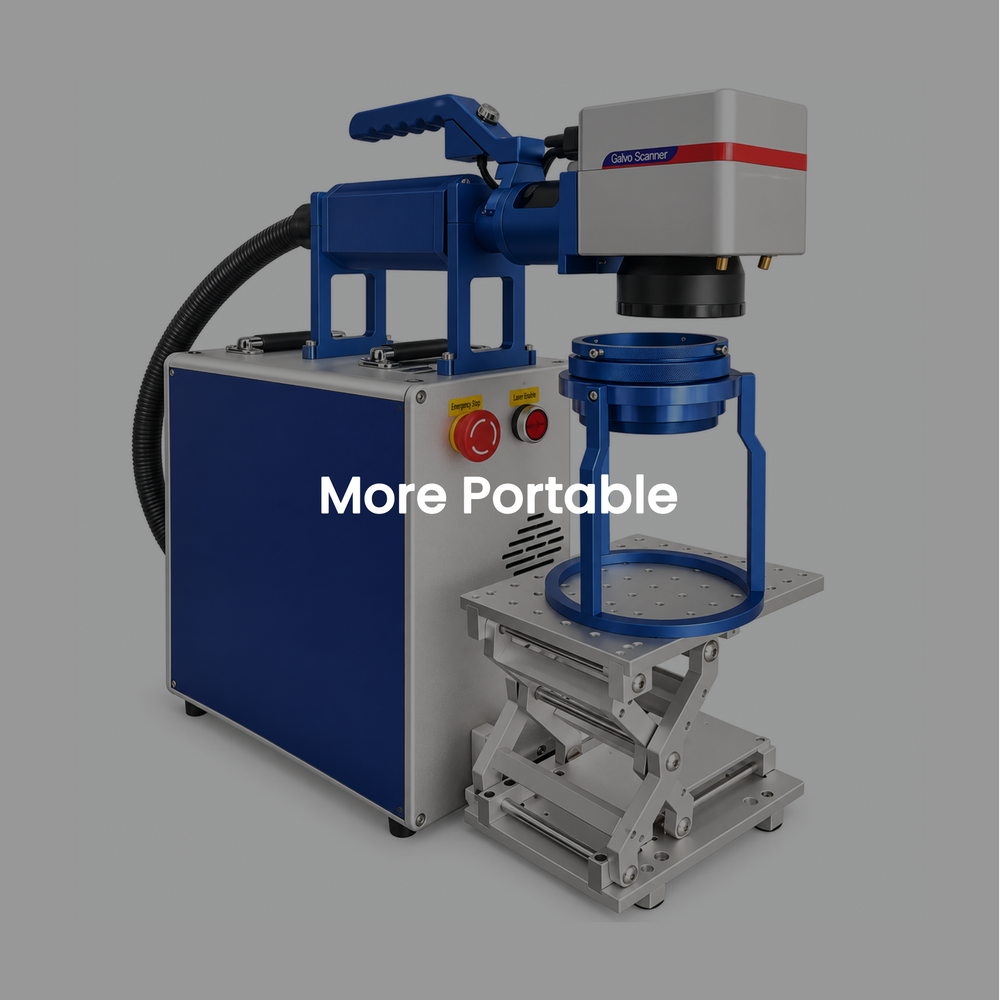

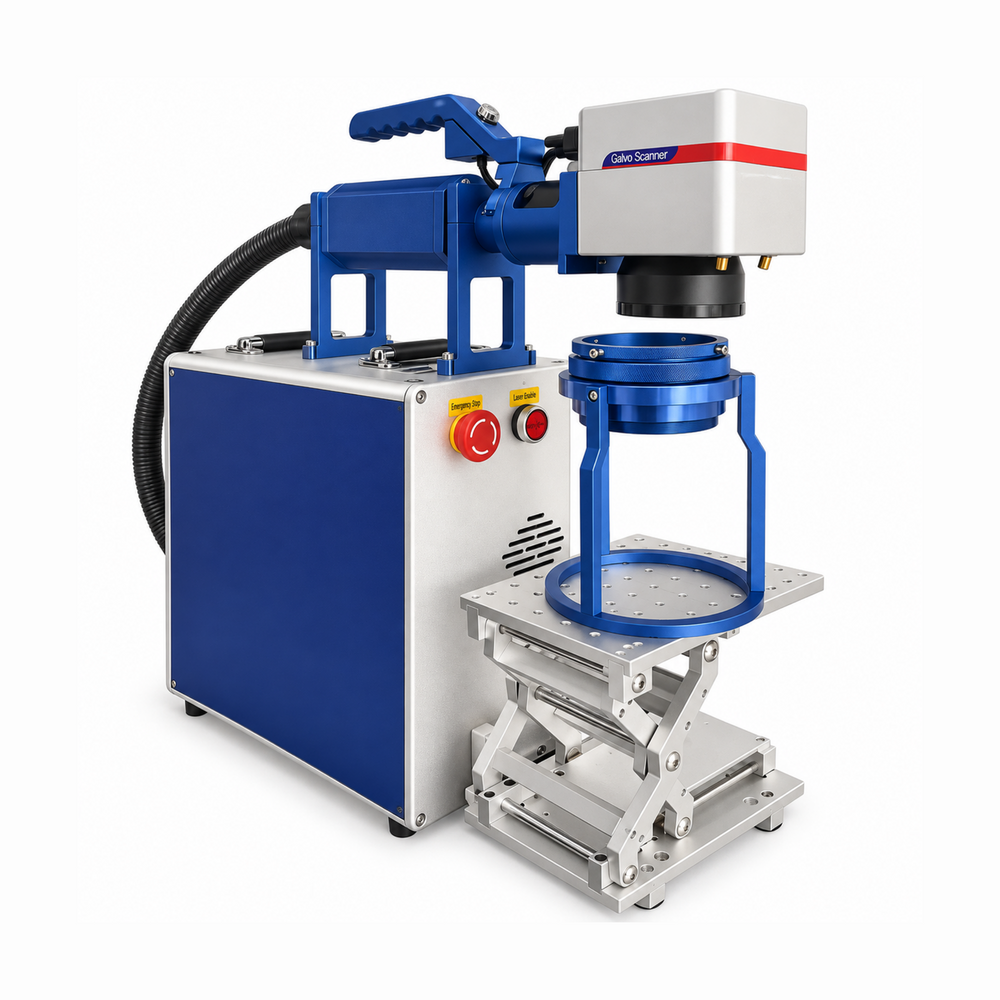

Handheld Type1

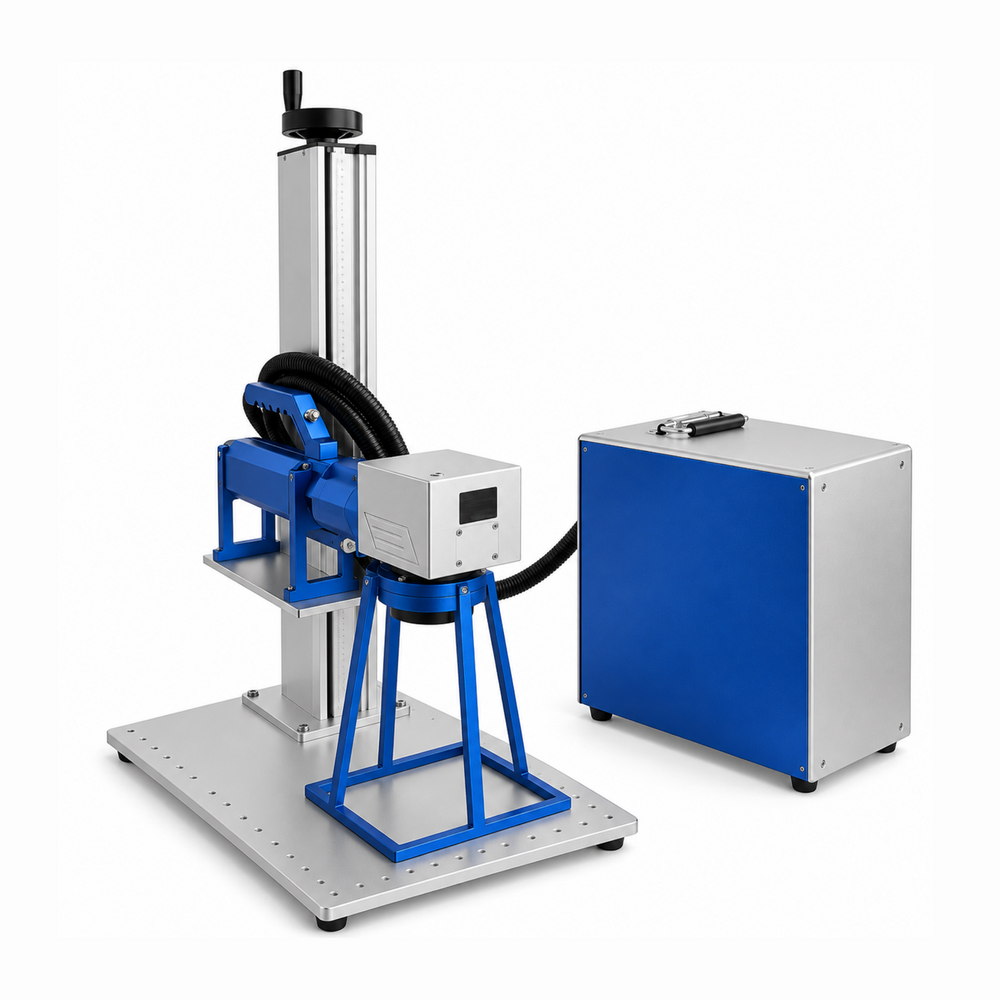

Handheld Type 2
