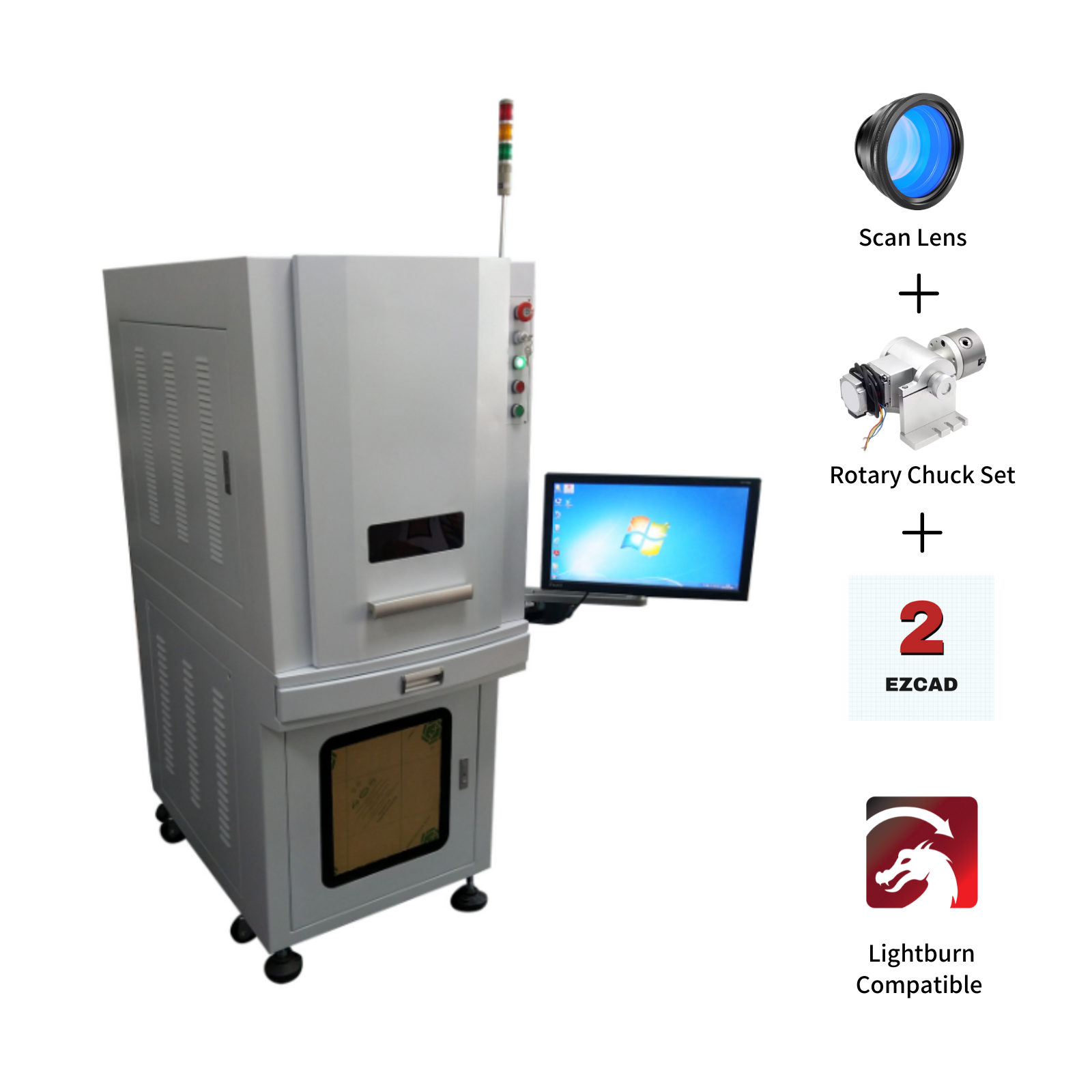

100-W-MOPA-Lasergravierer-Fasermarkierungsmaschine, geschlossen und Gehäuse Typ B
100-W-MOPA-Lasergravierer-Fasermarkierungsmaschine, geschlossen und Gehäuse Typ B
SKU:FLM-FBBGB-61R-MP
- Free shipping worldwide by sea (door-to-door optional); Shipping by air is optional
- CE/FDA is compatible
- 2 year warranty,Online or remote technology support
- MCWlaser Official Quality Inspection (100% brand new original authentic).
- Secure payments; Lifetime Tech Support (Specialists).
- Support Shipping Worldwide, US and EU stock.
- Good customer service. Please contact us at info@mcwlaser.com.
Verfügbarkeit für Abholungen konnte nicht geladen werden
Main Parmeter
Laser Power: 60W/80W/100W
Laser Source: JPT MOPAM7
Frequency: 1-4000kHz
Maximum Pulse Energy: 2.0mJ
Pulse Duration: 2-500ns
Lens: 220x220mm lens by default.
70x70mm/110x110mm/150x150mm/175x175mm/200x200mm/300x300mm
Wavelength: 1064nm
Rotary Axis:Three-jaw D80mm by default.
D69/D100mm/D125mm rotary axis optional
Marking Speed: 7000mm/s
Software: EZCad2, compatible with Lightburn;
Compatible System: Windows XP/Mista/Win7/Win8/Win10/Win11
Advantage
1. MOPA JPT M7 laser source has advanced beam quality
2. Reliable galvanometer marking speed up to 7m/s.
3. Latest upgraded EZCAD 2.0 Software (compatible with Lightburn).
4. Stable F-theta lens
5. Double red dot positioning can quickly find focus.
6. 2-year warranty.

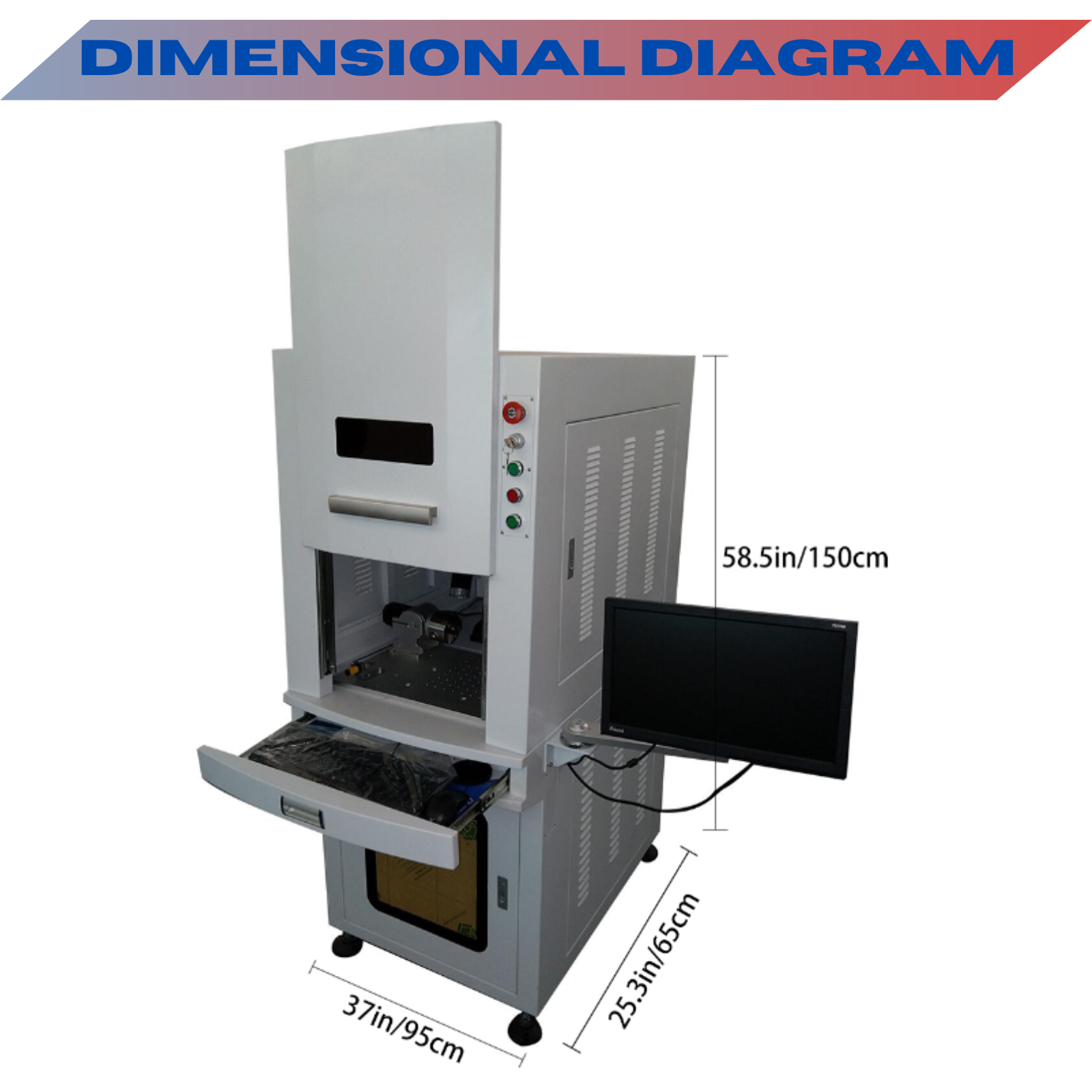

Size & Weight
Machine Size: 98.2x65x162cm/38.7x25.6x 63.8in(L×W×H)
Net Weight: 150Kg
Waranty
Worldwide Waranty 2 Years
Free replacement parts during warranty period
Certification
FDA Compliant
CE Certification
Application
It is mainly used in for the fine marking process of metal and non-metal materials, such as deep engraving, thin metal sheet cutting, anode stripping, coating striping semiconductor and electronics industries, plastic and other sensitive materials marking, and PVC plastic pipe industry. It is for especially stainless steel color making and aluminum oxide blackening.









Beschreibung

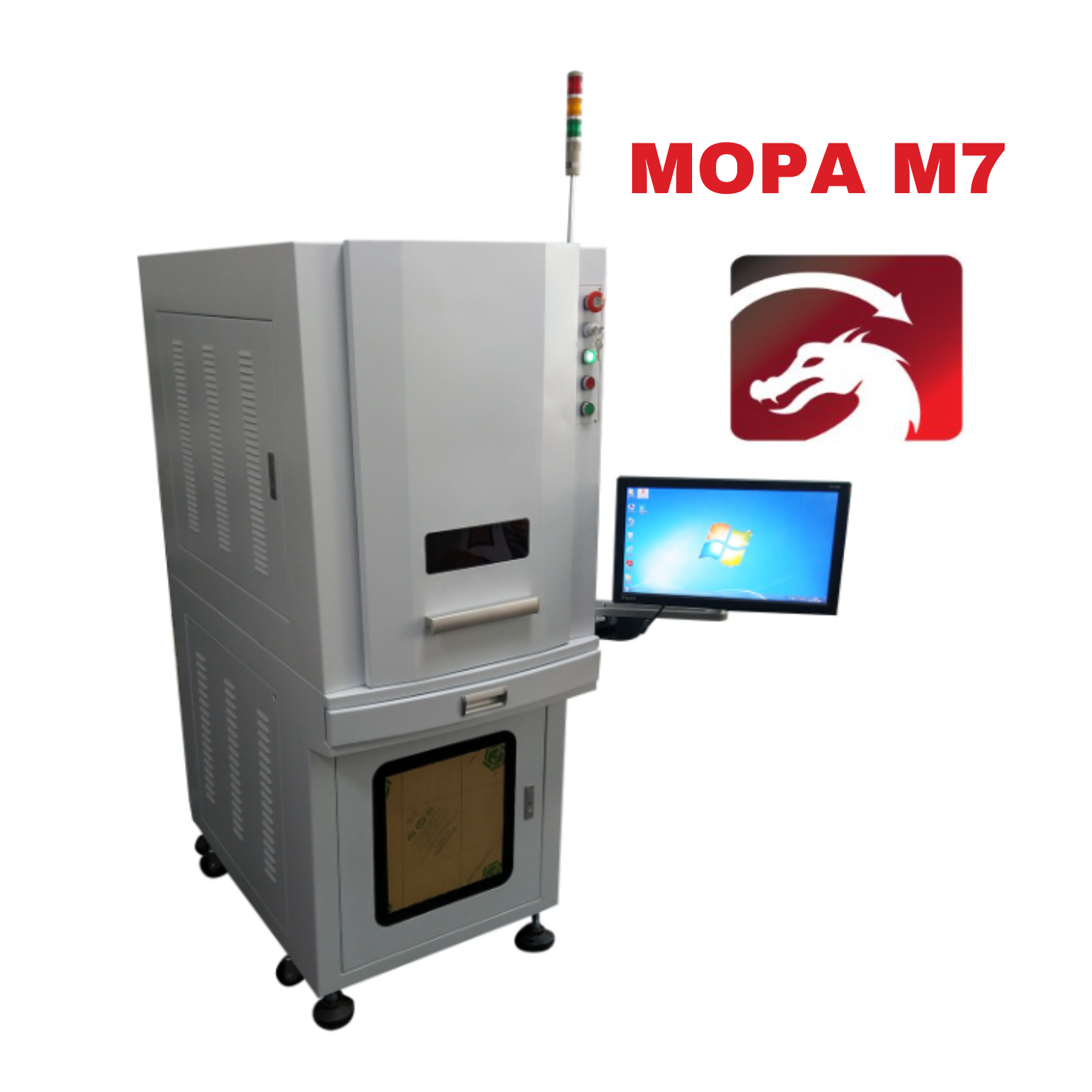

Wir stellen Ihnen die MCWlaser MOPA JPT M7 Faserlaser-Herstellungsmaschine vor – Ihre ultimative Lösung für Metallgravur- und Markierungsanforderungen!
- Mühelose Bedienung: Erleben Sie eine einfache und bequeme Nutzung mit unserer benutzerfreundlichen Oberfläche.
- Schneller und präziser Fokus: Profitieren Sie vom importierten Hochgeschwindigkeits-Galvanometer-Schnellfokussystem in Verbindung mit dem doppelten Rotlichtgerät für müheloses und präzises Fokussieren.
- Vielseitige Anwendungen: Markieren und gravieren Sie verschiedene Metallmaterialien und wählen Sie nichtmetallische Materialien mit außergewöhnlicher Präzision aus.
- Zertifizierte Qualität: FDA- und CE-Zertifizierungen gewährleisten höchste Qualitäts- und Sicherheitsstandards.
- Sorgenfreiheit: Genießen Sie ein sorgenfreies Erlebnis mit unserer 2-Jahres-Garantie und lebenslangen kostenlosen technischen Support.
- Bequeme Lieferung: Erleben Sie unseren nahtlosen Tür-zu-Tür-Service mit kostenloser Lieferung an Ihren Wunschort.
Merkmale
Vorstellung der erweiterten Funktionen der MCWlaser MOPA JPT M7 Faserlaser-Herstellungsmaschine:
-

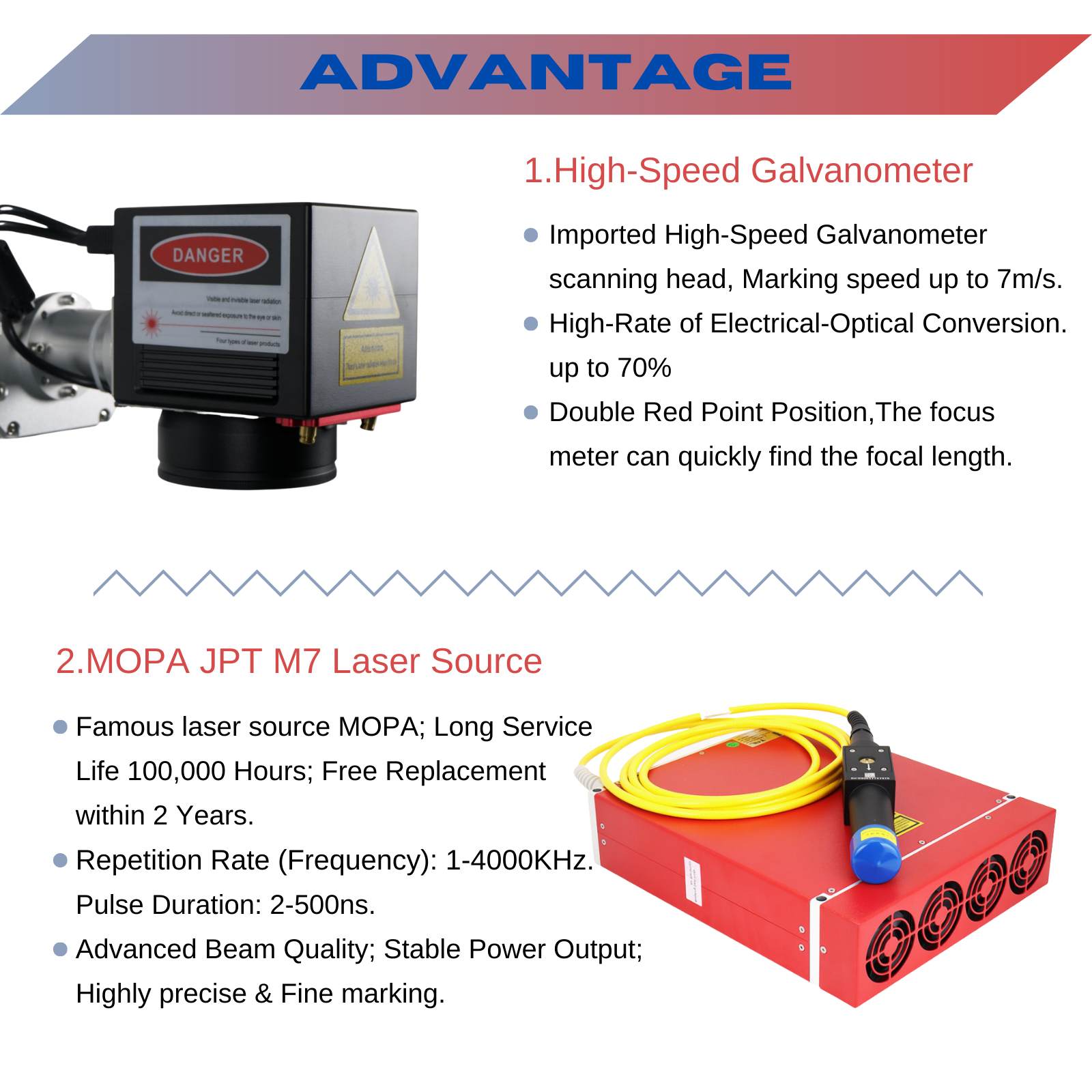

Fortschrittliche Laserquelle: Die MOPA JPT M7-Laserquelle gewährleistet eine hervorragende Strahlqualität, eine stabile Leistungsabgabe und eine höhere Markierungsgeschwindigkeit. Mit einer bemerkenswerten Lebensdauer von 100.000 Stunden bietet es eine außergewöhnliche Haltbarkeit. Genießen Sie die zusätzliche Sicherheit mit einem kostenlosen Ersatz innerhalb von 2 Jahren.
-
Zuverlässiges Galvanometer: Unser importierter Hochgeschwindigkeits-Galvanometer-Scankopf ermöglicht Markierungsgeschwindigkeiten von bis zu 7 m/s. Erleben Sie eine hohe elektrisch-optische Umwandlungsrate von bis zu 70 %, die Präzision, Effizienz und eine längere Lebensdauer gewährleistet.
-

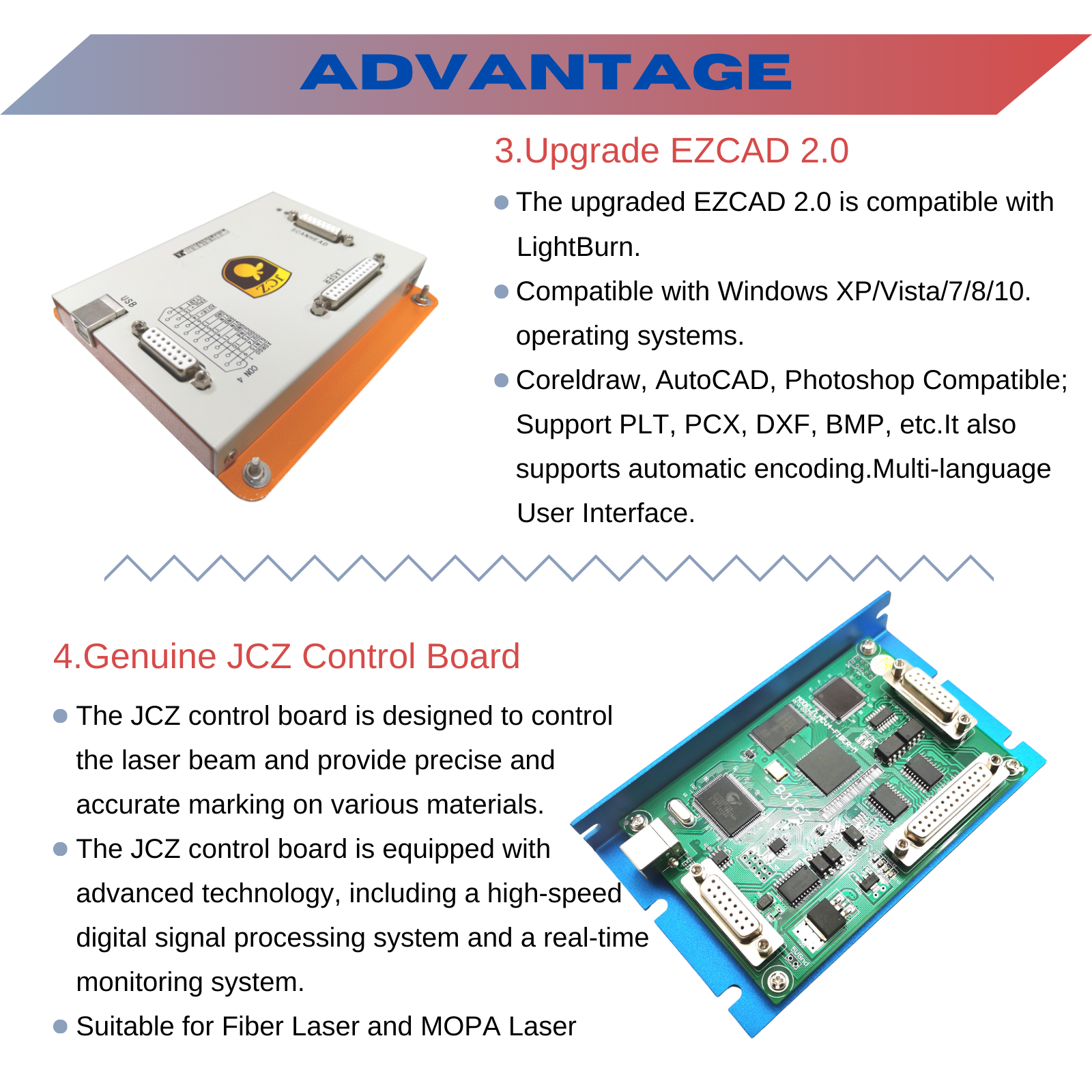

Hochmoderne Steuerung und Software: Ausgestattet mit der neuesten aktualisierten EZCAD 2.0-Steuerung (kompatibel mit Lightburn), unterstützt unsere Maschine mehrere Sprachen und bietet ein intuitives Bedienerlebnis. Kompatibel mit Windows XP/Vista/7/8/10 gewährleistet es eine nahtlose Integration in Ihr bestehendes Setup.
-
Stabile F-Theta-Linse: Profitieren Sie von Energiegleichmäßigkeit und minimaler Dämpfung mit unserer stabilen F-Theta-Linse. Es bietet einen kleinen Fokusfleck und ermöglicht so eine tiefe Kantenmarkierung. Wählen Sie aus verschiedenen Arbeitsbereichsoptionen: 70 × 70 mm, 110 × 110 mm, 150 × 150 mm, 175 × 175 mm, 200 × 200 mm, 220 × 220 mm und 300 × 300 mm, um Ihren spezifischen Anforderungen gerecht zu werden.
-
Rotlichtpositionierung: Unsere Maschine verfügt über ein doppeltes Rotpunktpositionierungssystem, das es dem Fokusmesser ermöglicht, die Brennweite schnell zu bestimmen. Beobachten Sie einfach die Oberfläche des zu markierenden Produkts und stellen Sie sicher, dass sich die beiden roten Punkte überlappen, um eine präzise Positionierung zu gewährleisten.

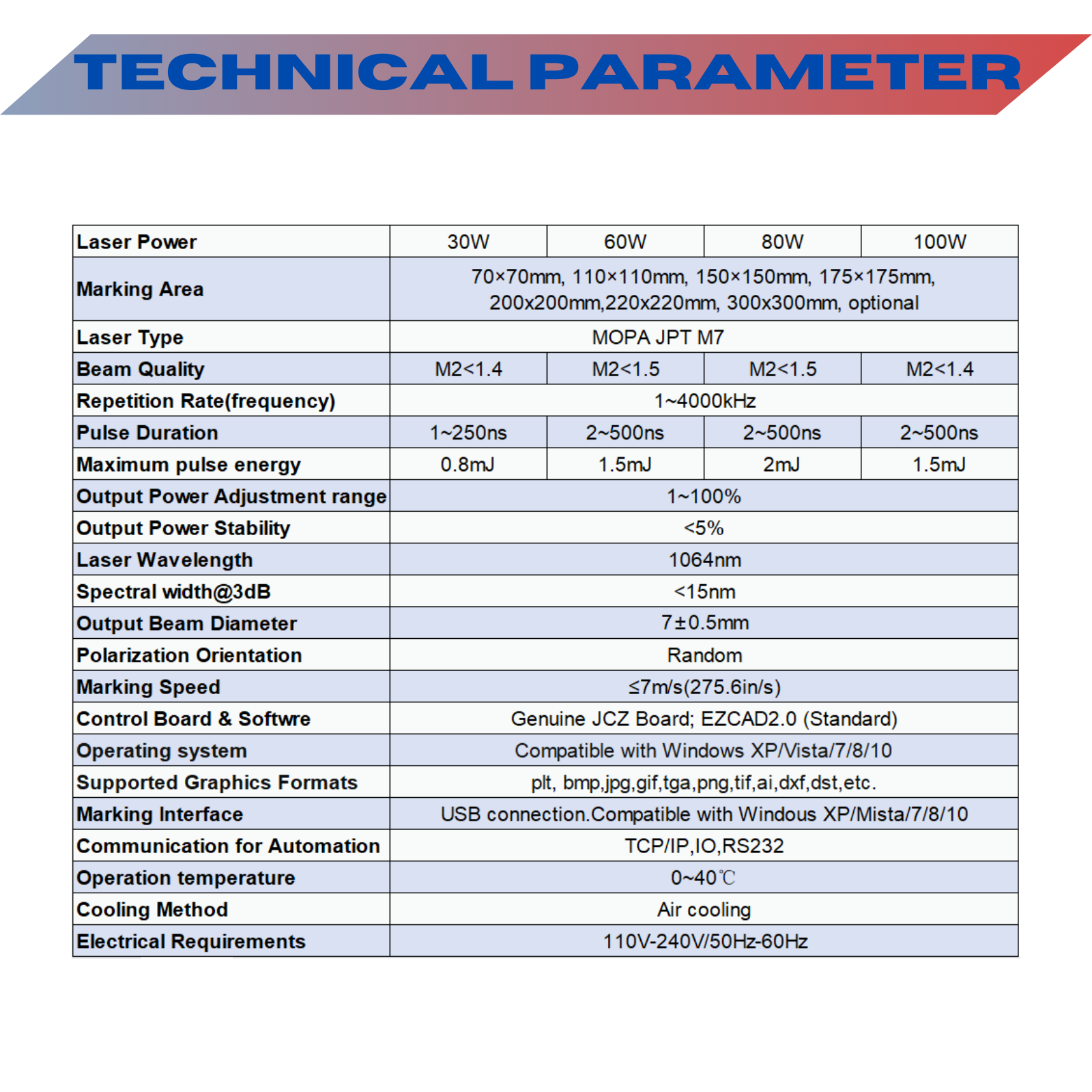

technische Parameter
Anwendung

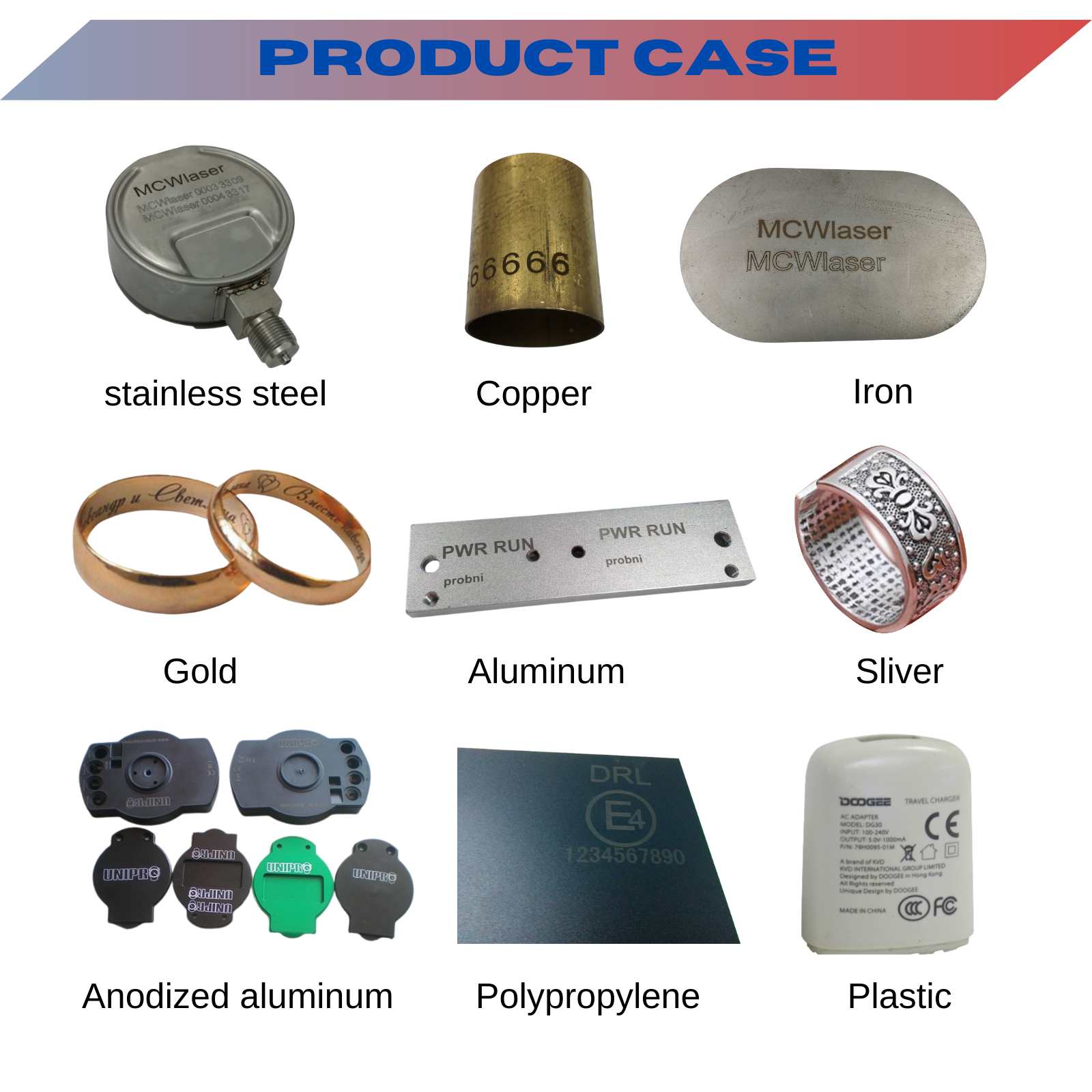

Anwendbares Material: Kohlenstoffstahl, Aluminium, Edelstahl, Messing, Kupfer, Gold, Silber usw. Auch einige Nichtmetalle wie Nylon, Lichtknopf, ABS, PVC, PES, Leder usw. Nicht sicher, kontaktieren Sie uns.

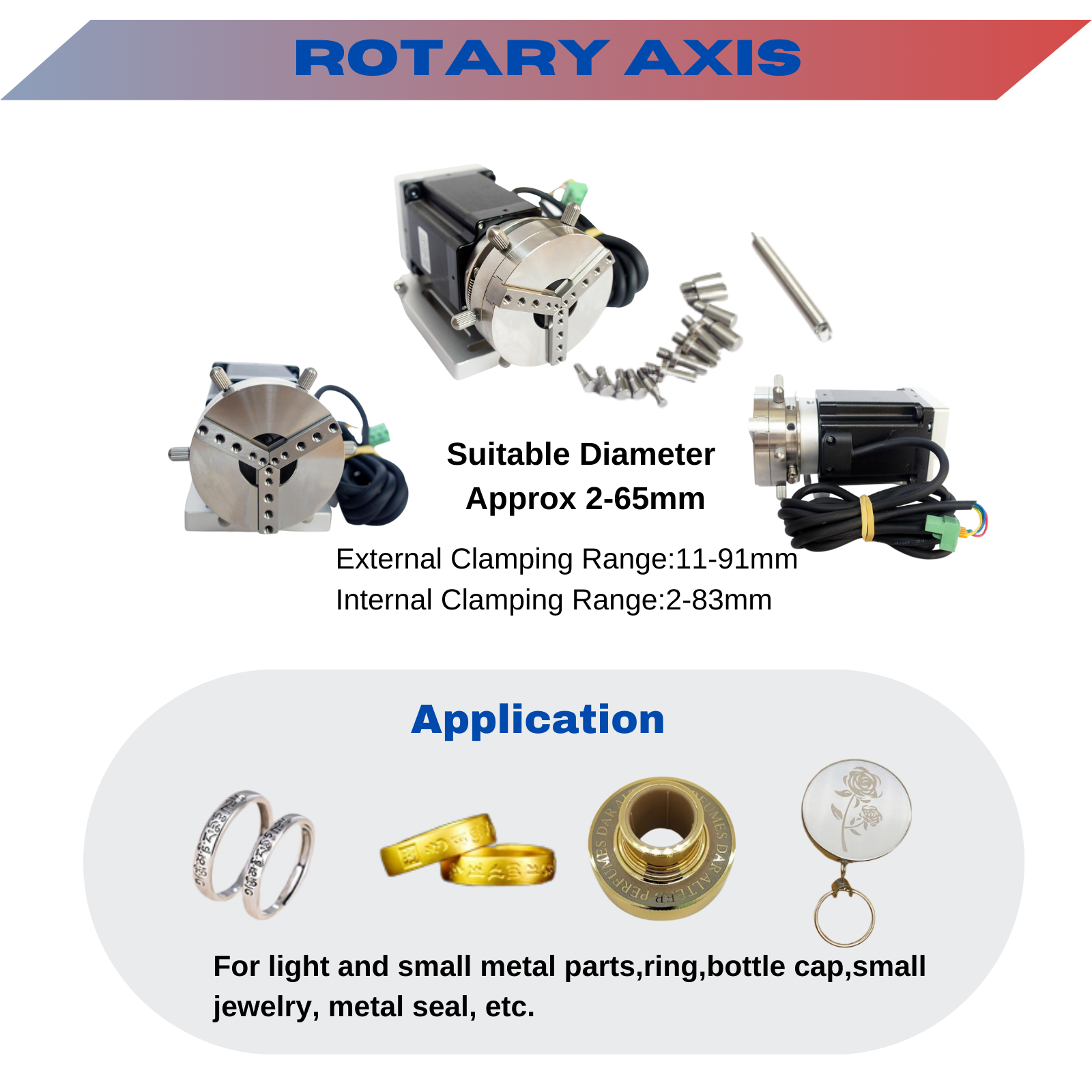

D69 Drehachse
• 69 mm (2,71 Zoll) Dreibacken.
• Externer Klemmbereich: 11–91 mm.
• Interner Klemmbereich: 2–83 mm.
• Achsenhöhe: 50 mm (Elevationswinkel 90 Grad).
• Größe des Drehfutters (L×B×H): 130×90×90 mm
• Montagelochgröße: 50 x 50 mm (M5-M6-Schrauben).
• Edelstahlmaterial; Schnelles Spannen. Synchroner Radantrieb; Jtter effektiv eliminieren. Drehfederklemmung, schnelle Montage und Demontage zur Verbesserung der Arbeitseffizienz.
• Schnittstelle nach Industriestandard, Luftfahrtstecker passend für verschiedene Platinen.
• Hauptsächlich für kleinen Schmuck und Kleinteile wie Ringe, Stifte, Flaschenverschlüsse usw. geeignet.

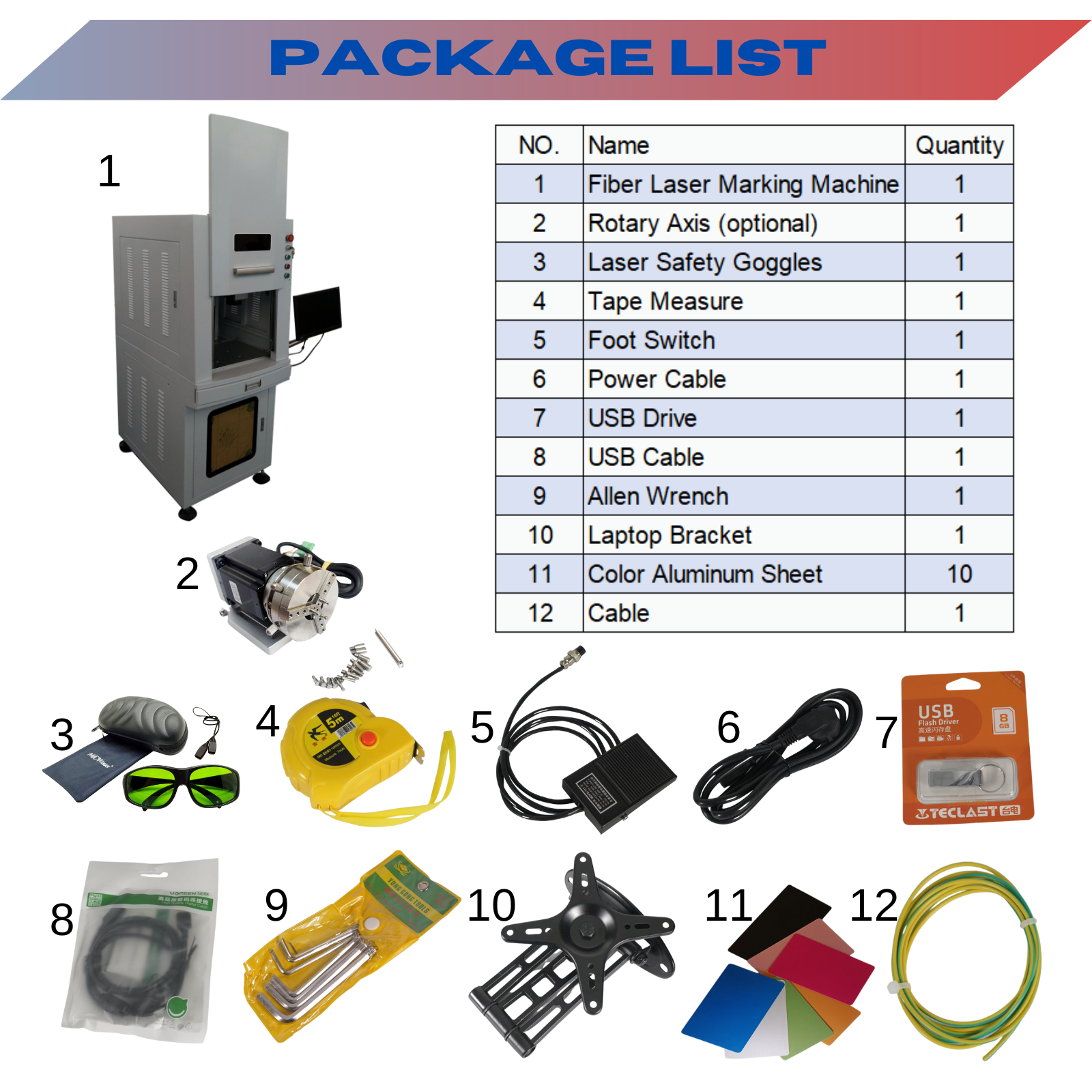

Paketliste
