MCWlaser 200W Laser Rust Removal Machine Handheld Pulse Laser Cleaning Machine Trolley Type

MCWlaser 200W Laser Rust Removal Machine Handheld Pulse Laser Cleaning Machine Trolley Type

SKU:MC-200L

Normaler Preis $15,699.00 USD
Normaler Preis $17,899.00 USD Verkaufspreis $15,699.00 USD
Sale Ausverkauft
  • MCWlaser Official Quality Inspection (100% brand new original authentic).
  • Secure payments; Lifetime Tech Support (Specialists).
  • Support Shipping Worldwide, US and EU stock.
  • Good customer service. Please contact us at info@mcwlaser.com.
Vollständige Details anzeigen

The 200W laser cleaning machine has high optical pulse energy, stable output, and strong applicability of index parameters. The machine has a self-developed electronic control system, can avoid excessive ablation during cleaning of both ends and realize efficient and precise cleaning without substrate damage.
With a compact and portable output head, the machine can realize long-term, stable, flexible, and continuous operation.
It can pre-set multiple cleaning modes, has superior operability and practicability, and may realize favorable cleaning effects, especially to the rust, oil, paint, and oxide on the surfaces of various molds, metal parts, industrial equipment, and decks.

★ Easy and convenient operation.
★ Certified: FDA and CE
★ 2-Year Warranty and Lifetime Free Technical Support.
★ Door to door service with free delivery.

Product Details

    200-WF-A2

    200-WF-A3

    200-WF-A4

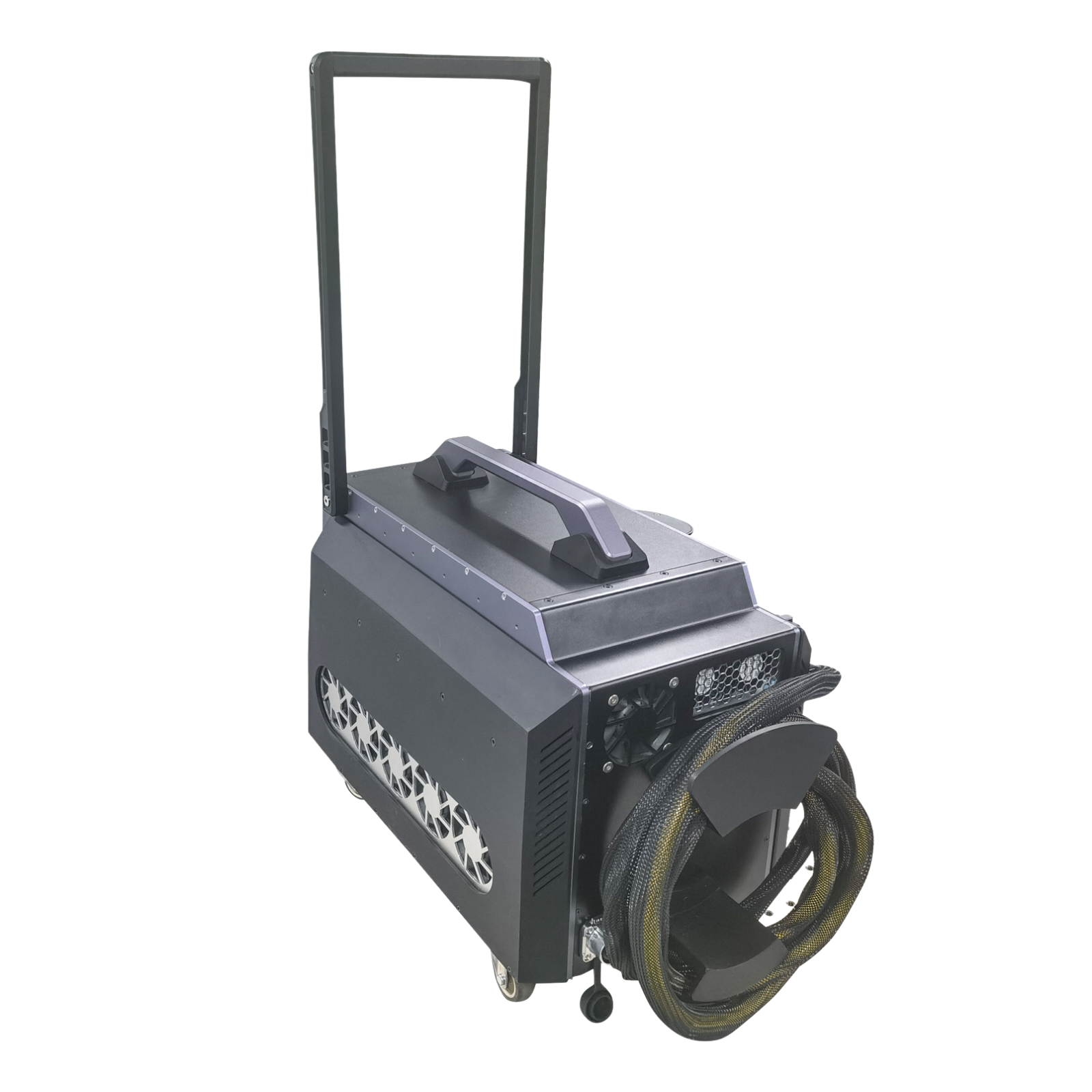

    Trolley Design

    It is easy to move around and useful for cleaning large or multiple objects.

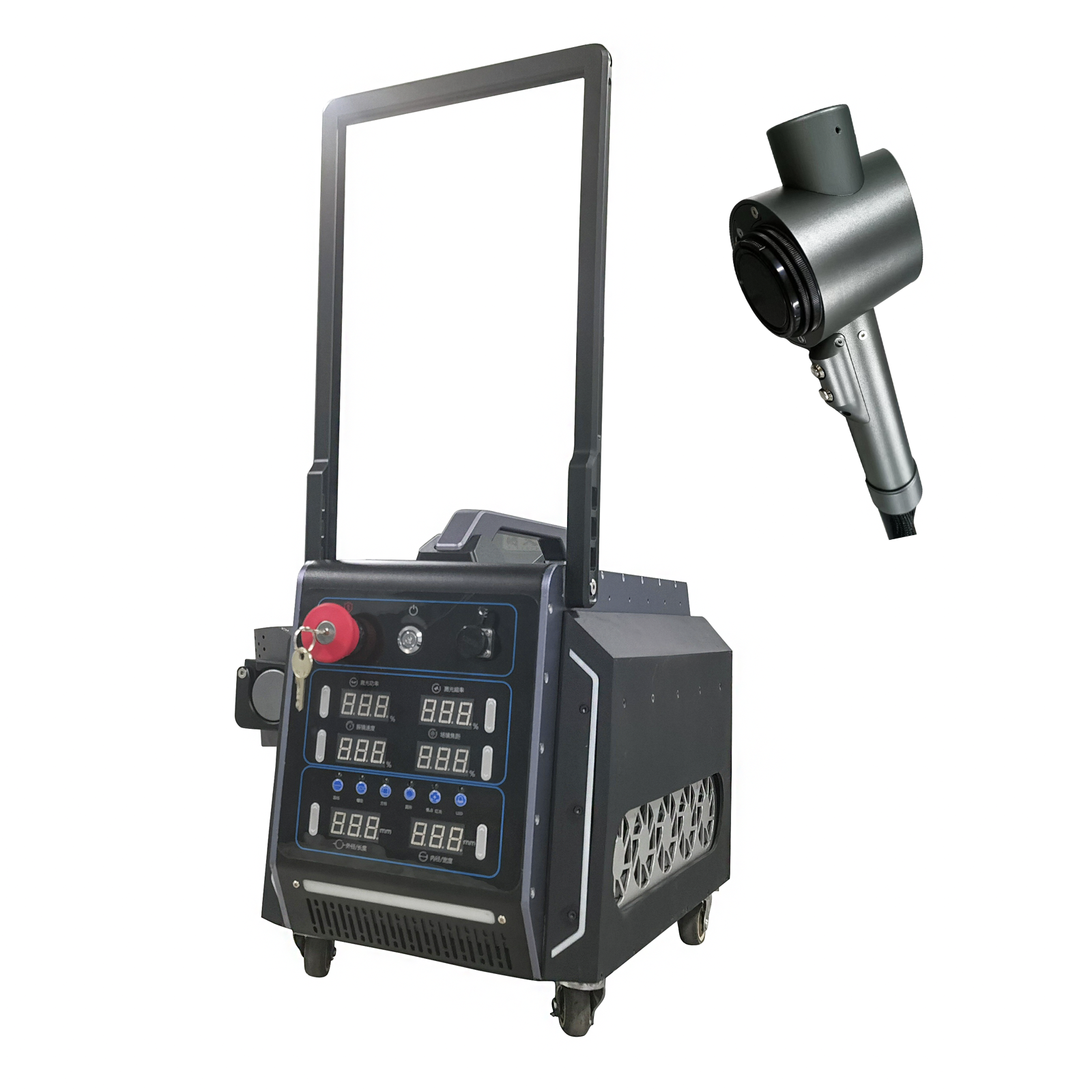

    Convenient Control Panel

    User-friendly interface. The controls are clearly labeled and easy to find.

    Compact Size

    Compact laser cleaning machines can be used to clean small, intricate parts and surfaces with precision.


    200-WF-A5

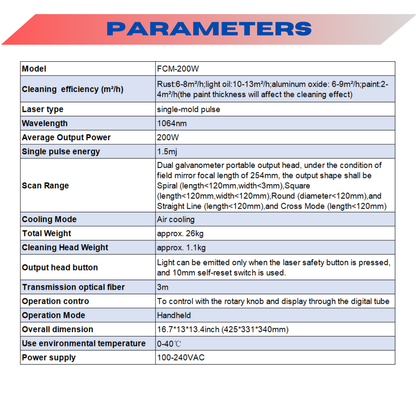

    Technical Parameters

    Operating Environment
    Model MC-200L-WF
    Supply voltage 100-240 volts AC; 50/60Hz AC
    Power consumption ≤ 1000W
    Working environment temperature 5℃~40℃
    Working environment humidity ≤80%
    Optical Parameters
    Average laser power ≥100W
    Power instability ≤ 5%
    Laser Working Mode Pulse
    Pulse width 10-500ns
    Maximum monopulse energy 1.5mJ
    Power regulation range(%) 0- 100( Gradient Adjustable)
    Repeat frequency(kHz) 133-150 (Gradient Adjustable)
    Fiber length 3m
    Cooling mode Air Cooling
     Cleaning Head Parameters
    Scan range (length * width) 0- 120mm ,continuously adjustable;
    Biaxial: supporting 8 scanning modes;
    Field mirror focal length(mm) 160mm(Optional 210mm/254mm/330mm/420mm)
     Mechanical Parameters
    Machine size(LxWxH 488×354×372mm
    Weight of whole machine 25Kg
    Cleaning head weight 1.1±0.15kg
    Operation mode  Handheld/automated
    Cleaning efficiency (m2/h) Rust: 6-8m 2/h, Light oil: 10-13m 2/h, Aluminum oxide: 6-9m 2/h, Paint: 2-4m 2/h (Paint thickness affects cleaning results)

    Laser Cleaning Mahcine Efficiency

    • Rust: 6-8m²/h;
    • Oil Stains: 10-13m²/h;
    • Aluminum Oxide: 6-9m²/h;
    • Paint: 2-4m²/h(the paint thickness will affect the cleaning effect)

    Application

    Industries: Marine industry, auto parts, rubber molds, high-end machine tools, tire molds, rail, environmental protection industry,etc.

    Package List

    ① Laser Cleaning Host    1 set
    ② Laser Output Head    1 pcs
    ③ Laser Safety Glasses    1 pcs
    ④ Power Cable    1 pcs
    ⑤ Key Switch    2 pcs
