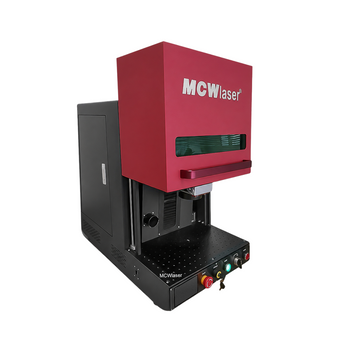

MCWlaser MP Series 60W/100W MOPA M7 Enclosed Fiber Marking Machine With D69 Rotary
Estimate shipping
Couldn't load pickup availability

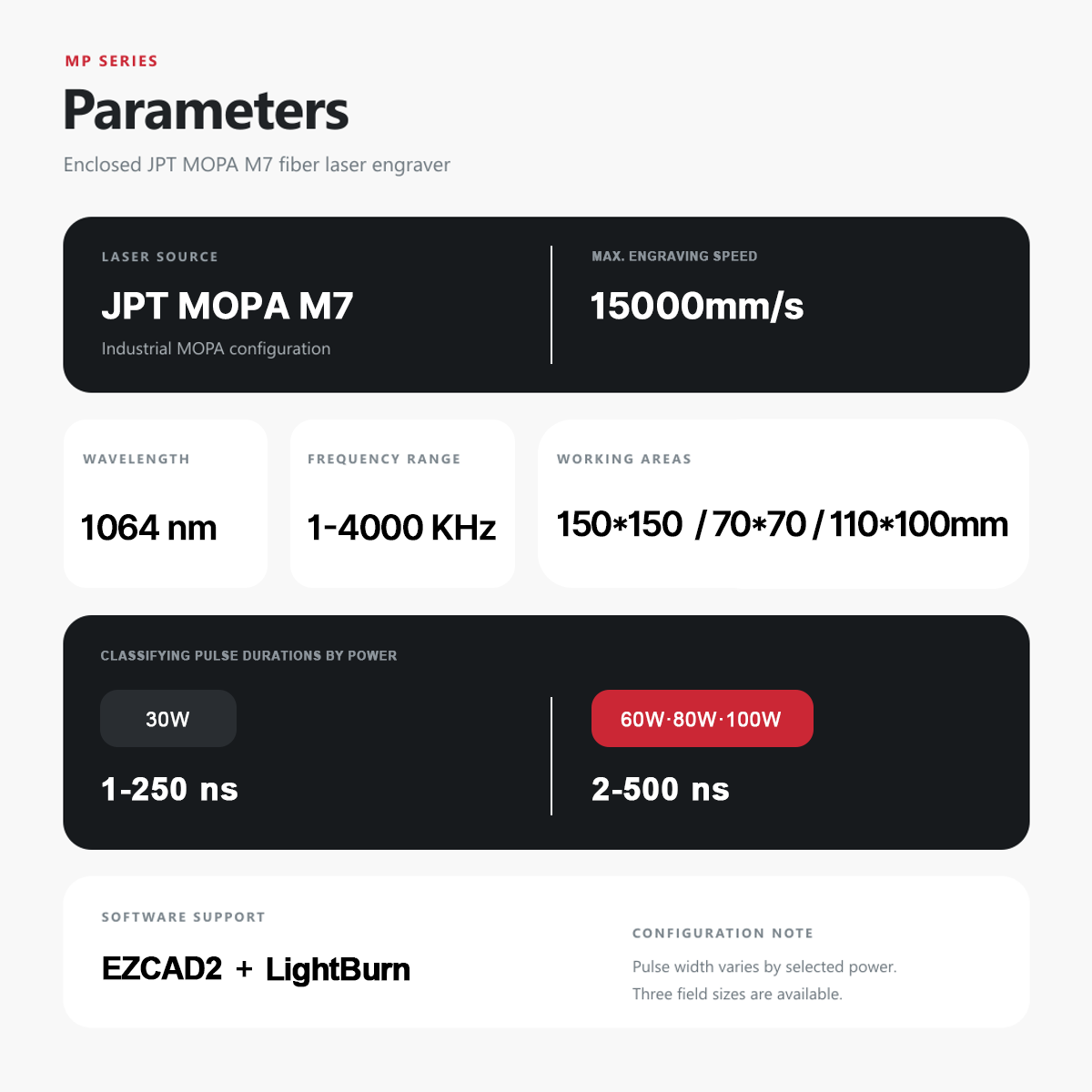

Main Parmeter
Laser Power: 30W/60W/80W/100W
Laser Source: JPT MOPAM7
Frequency: 1-4000kHz
Maximum Pulse Energy: 2.0mJ
Pulse Duration: 2-500ns
Lens: 150x150mm lens by default.
70x70mm/110x110mm/150x150mm/175x175mm/200x200mm/300x300mm optional
Wavelength: 1064nm
Rotary Axis: Three-jaw D69mm by default.
Marking Speed: 7000mm/s
Software: EZCad2, compatible with Lightburn;
Compatible System: Windows XP/Mista/Win7/Win8/Win10/Win11

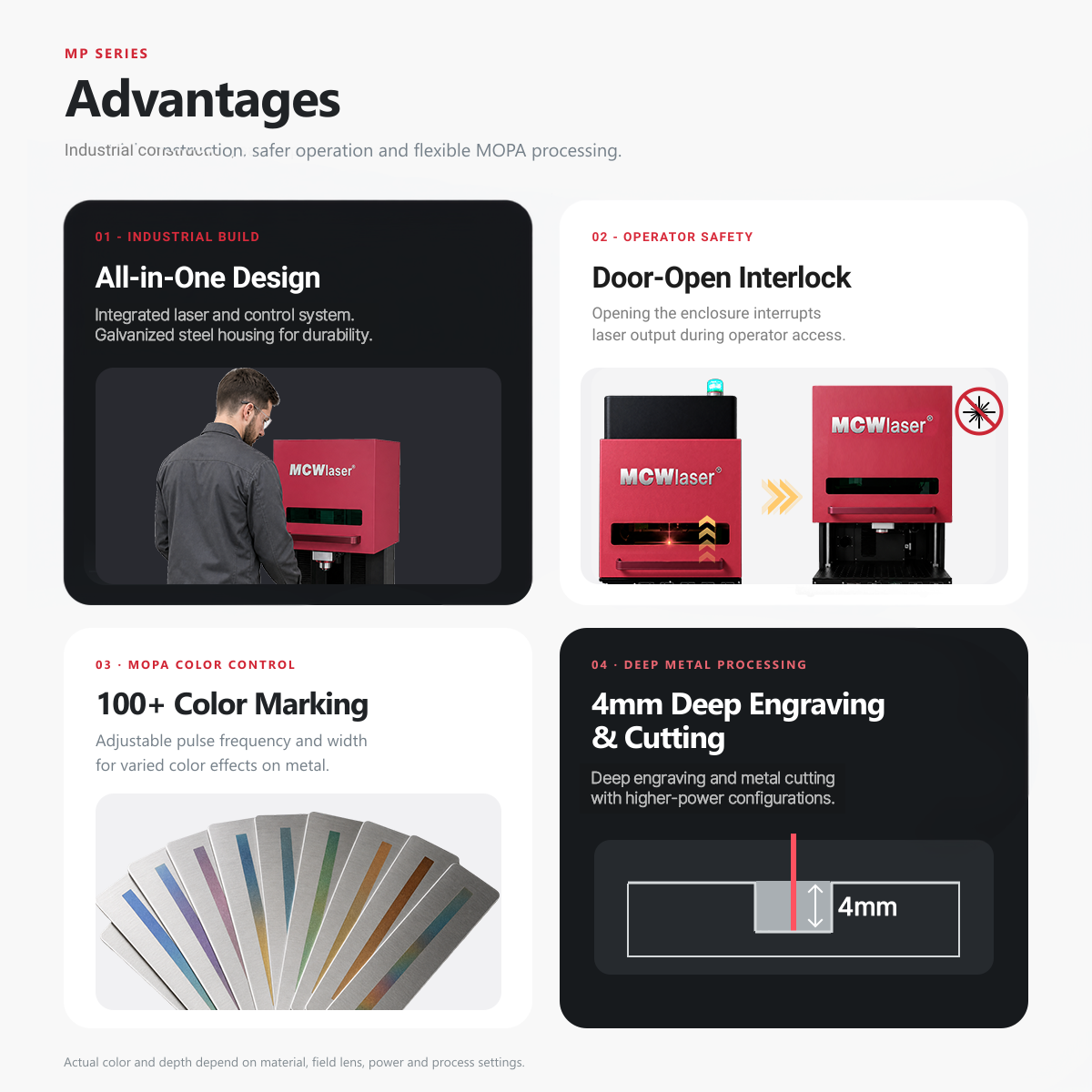

Advantage
1. MOPA JPT M7 laser source has advanced beam quality
2. Reliable galvanometer marking speed up to 7m/s.
3. Latest upgraded EZCAD 2.0 Software (compatible with Lightburn).
4. Stable F-theta lens
5. Double red dot positioning can quickly find focus.
6. 2-year warranty.

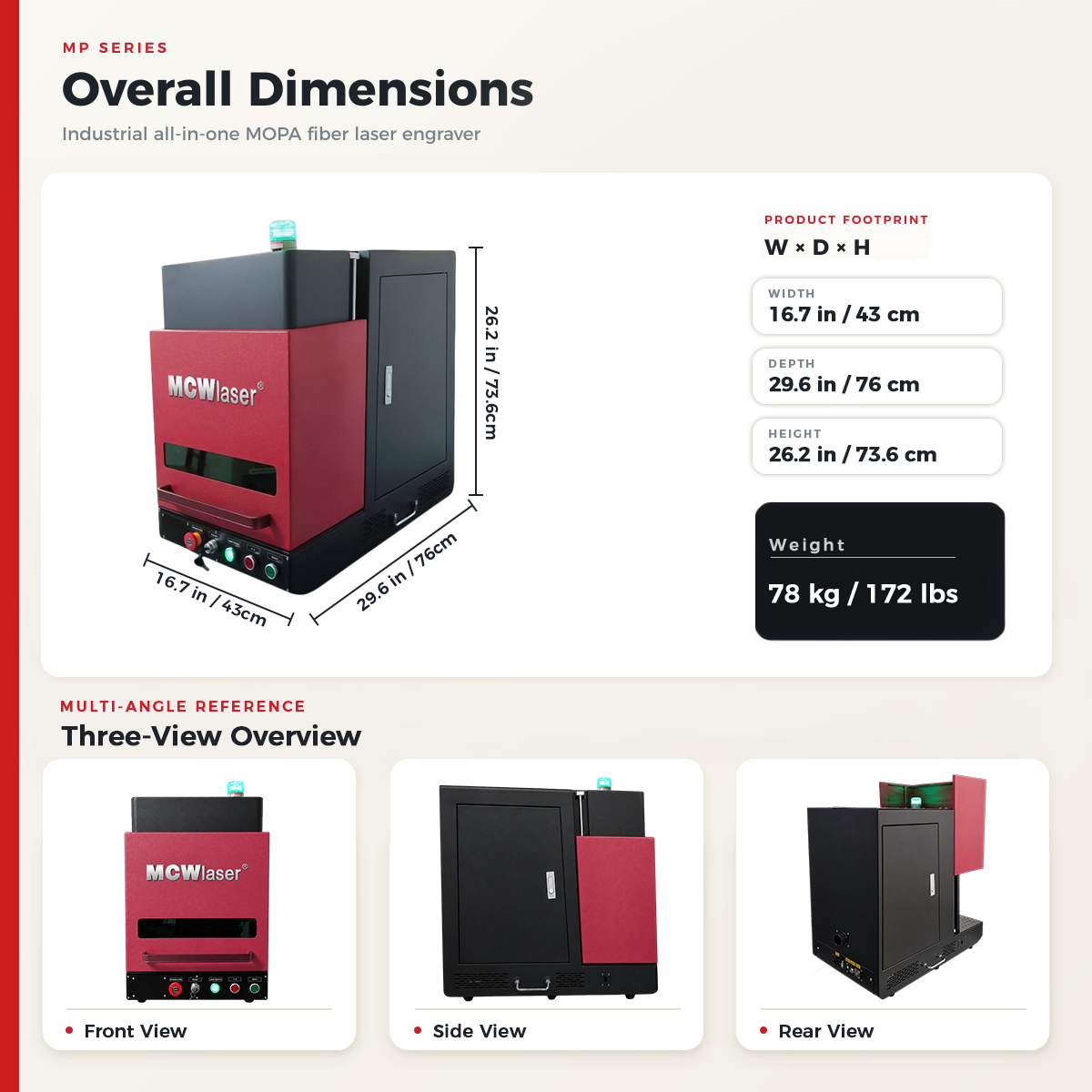

Size & Weight
Machine Size: 43x76x73.6cm/16.7x26.2x 29.6in(L×W×H）
Net Weight: 78Kg
Waranty
Worldwide Waranty 2 Years
Free replacement parts during warranty period
Certification
FDA Compliant
CE Certification
Application
It is mainly used in for the fine marking process of metal and non-metal materials, such as deep engraving, thin metal sheet cutting, anode stripping, coating striping semiconductor and electronics industries, plastic and other sensitive materials marking, and PVC plastic pipe industry. It is for especially stainless steel color making and aluminum oxide blackening.
Package Include
1. Fiber Laser Marking Machine
2. Rotary Axis (D69 by default)
3. Laser Safety Goggles
4. Tape Measure
5. Foot Switch
6. Power Cable
7. USB Drive
8. USB Cable
9. Allen Wrench
10. Color Aluminum Sheet
11. Cable
12. Lens(Marking Area 150x150mm by default)
Manual Download
English Version: Download
Features
MCWlaser 30W/60W/80W/100W MOPA M7 Enclosed Fiber Laser Engraver Marking Machine With 5.9” X 5.9“Working Area & D69 Rotary Axis
The working frequency of MOPA JPT M7 laser source can reach 1-4000kHz, the pulse width is 2-500ns,wide adjustable range, wider application.
It adopts a high-speed photodiode for fast focusing and dual red light equipment, which can focus easily.
It is mainly used in for the fine marking process of metal and non-metal materials, such as stainless steel color making, aluminum oxide blackening, anode stripping, coating striping semiconductor and electronics industries, plastic and other sensitive materials marking, and PVC plastic pipe industry.
Certified by FDA and CE, enjoy a two-year warranty and free technical support service.
Product Specifications
Make Every Piece One of a Kind
MOPA laser precisely engraves text
dates, and names on jewelry with
minimal heat.
Make Every Cup Yours
high-contrast marks on anodized
aluminum and black stainless
steel drinkware.
Precision You Can Trust
corrosion-resistant serial marks on
surgical instruments for full
traceability through sterilization.
Engrave Time Itself
Precisely deep engraves watch
dials,case backs & components for
premium watch manufacturing.
Bring Ideas to Life
Deep engraving & vibrant color
marks on metal for standout
custom goods.
Precise Industrial Cutting
Cut gears & components with
thickness up to 4mm.
Make Every Piece One of a Kind
MOPA laser precisely engraves text
dates, and names on jewelry with
minimal heat.
Make Every Cup Yours
high-contrast marks on anodized
aluminum and black stainless
steel drinkware.
Precision You Can Trust
corrosion-resistant serial marks on
surgical instruments for full
traceability through sterilization.
Engrave Time Itself
Precisely deep engraves watch
dials,case backs & components for
premium watch manufacturing.
Bring Ideas to Life
Deep engraving & vibrant color
marks on metal for standout
custom goods.
Precise Industrial Cutting
Cut gears & components with
thickness up to 4mm.
Application
Be mainly for Small Jewelry and Hardware, such as ringspen
bottle cap,etc.
Feature
- Stainless steel material
- Quick clamping, Synchronous wheeldrive, Effectively eliminate jtter;
- Fast mounting and dismounting to improve work efficiency;
- Industrial standard interface,use aviation plug fits various board card
Parameter
- 69mm (2.71in) Three-jaw.
- External Clamping Range:11-91mm
- Internal Clamping Range:2-83mm.
- Axis Height:50mm(elevation angle 90 degree
- Rotary Chuck Size(LxWxH):130x90x90mm
- *Mounting Hole Size:50x50mm(M5 M6 Screws)
Packing List
