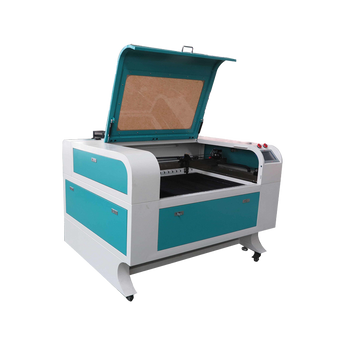

MCWlaser 80W~100W CO2 Laser engraver & Rotary Chuck 60*90cm Working Area
Feature
1. Imported linear guides, famous brand stepper motors, high torque, low heat, low noise, stable operation, ensure high precision and high speed.
2. High-quality co2 laser tube and power supply to ensure full power and long service life.
3. Upper and lower honeycomb platform, enhance the ability to deal with smoke and debris and process materials of different thickness;
3. Red light positioning, automatic blowing, water protection, emergency automatic stop.
4. The software can be embedded in CorelDRAW\CAD software to directly output graphic files, and also handle a variety of graphics formats, including EMF/JPG/PLT/WMF/BMP/JPEG, etc.
5. The machine comes with USB port, supports U disk function, can realize off-line operation, realize file sharing.
6. Color screen control panel, multi-language selection (English, French, German, Italian, Spanish, etc.).
7. The computer system used includes Win 7, Win 8, Win10, Window XP. Mac system does not include.
8. Reinforced and thickened fuselage to enhance the stability and service life. Transport is safer.
9. Optional spare parts: Rotary chuck
Parameter
| Power supply: | AC220士10%50 HZ/AC110+10%50 Hz |
| Laser type | Hermetic co2 glass tube |
| Worktable | Honeycomb or alumium knife worktable |
| Cutting thickness | 18 mm (Depends on different materials) |
| Applicable Materials | Acrylic,Glass,crystal,wood,leather,cloth,rubber,papermarble,ceramic,etc. |
| Max moving speed: | 4o,000 mm/min |
| Laser energy control: | 1-100% set by hand or software |
| Min shaping character: | Character 3*3 mm;letter: 2*2 mm |
| Operating temperature: | 5°C-35°℃ |
| Data transfer interface | uSB /Udisk/Ethernet |
| System environment: | WINDoWs 2000/ XPistaWin7Win8/win10 |
| Cooling way: | Water cooling and protection system |
| Graphic format supported: | The file which CorelDraw,AutoCad,CaDian,llustrator and laserwork can identify |
| Memory | 256 MB |
| Color Separation | Separation of cutting up to 256 colors |
| Package Inclusion | focus ruler,Software,VIDEO USER MENU CD,Air pump gun,Power cables,USB cables, cW3000/CW5000 industrial chiller(optional),Water Pipe,Smoke Vent-pipe,Air Blow Pipe ,exhaust fan,Tools bag |
| warranty | 2 years for machine consumable items : laser tube 3 months /laser tube 10 months,lens and mirrors 3 months |
| Dimensions | |
| Dimensions(package) | 1620*1560*1290 mm |
| Net IGross Weight | 360/500KGs |
Applicable Industry
Advertising, art gifts, clothing, leather, toys, architectural decoration, computer embroidery, packaging and printing, paper products, shoemaking, furniture, model industries, crafts, stamp, etc.
Applicable Material
| Material | Engraving | Cutting | Material | Engraving | Cutting |
| Natural wood | √ | √ | Paper | v | v |
| Acrylic | √ | v | Mylar | v | v |
| Glass | v | x | Pressboard | √ | v |
| Bouble color plate | √ | √ | Rubber | √ | v |
| Bamboo | √ | √ | Plywood | v | √ |
| MDF | √ | √ | Fiberglass | √ | v |
| Cloth | √ | √ | Painted metal | √ | v |
| Leather | √ | v | Plastic | v | v |
| Marble | √ | x | Ceramic | √ | x |
| Matte boards | √ | √ | Coated Metal | √ | x |
| Stone | √ | x | Other materials | √ | √ |
