Description

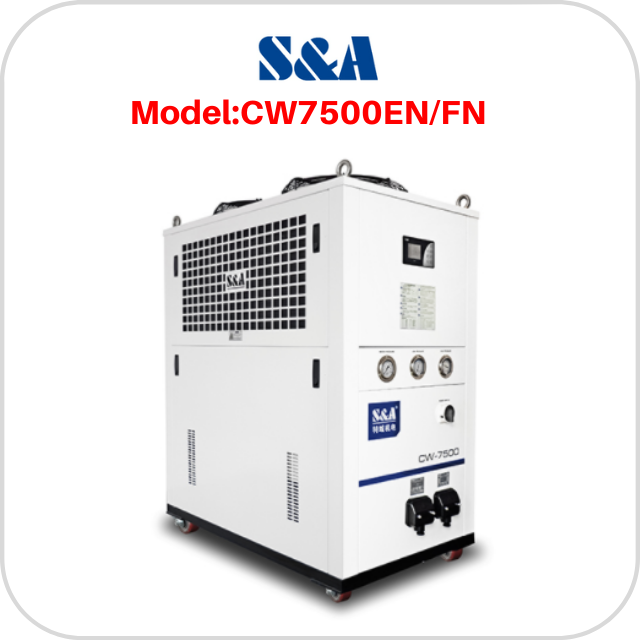

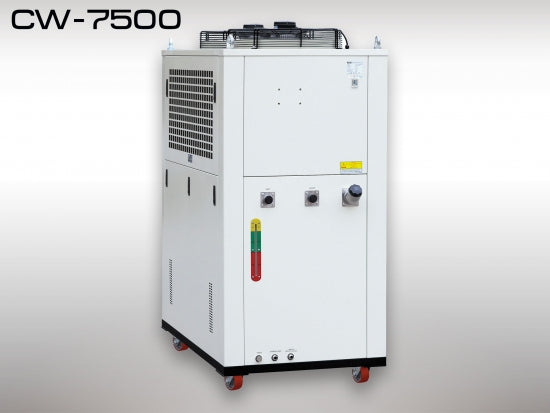

The S&A CW-7500 refrigeration industrial water chiller system is a powerful solution with 14000W cooling capacity. It supports the Modbus-485 communication protocol, allowing communication between the laser system and multiple water chillers. This feature enables two important functions: monitoring the working status of the chillers and modifying the parameters of the chillers as needed. With this advanced capability, users can better control and optimize the performance of their laser systems, improving overall efficiency and productivity.

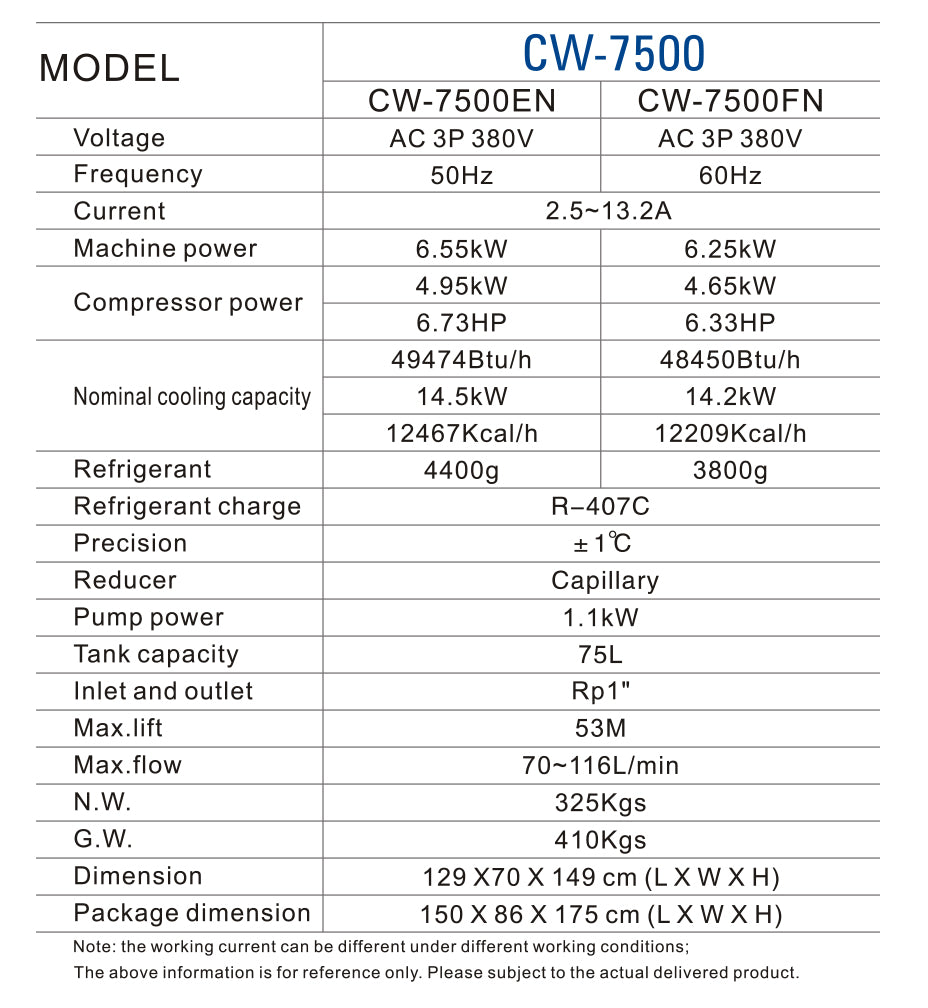

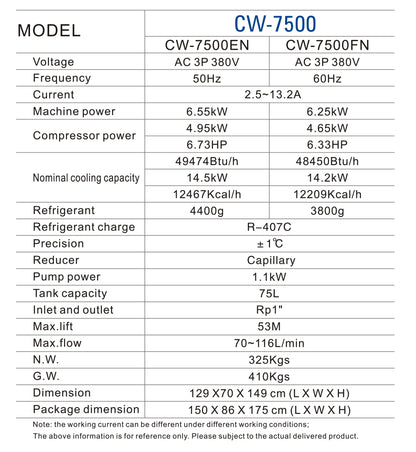

Parameter
MODEL |
CW-7500 |
|
CW-7500EN |
CW-7500FN |
|
Voltage |
AC 3P 380V |
AC 3P 380V |
Frequency |
50Hz |
60Hz |
Current |
2.5~13.2A |
|
Machine power |
6.55kW |
6.25kW |
Compressor power |
4.95kW |
4.65kW |
4.65kW |
4.65kW |
|
Nominal cooling capacity |
49474Btu/h |
48450Btu/h |
14.5kW |
14.2kW |
|
12467Kcal/h |
12467Kcal/h |
|
Refrigerant |
4400g |
3800g |
Refrigerant charge |
R-407C |
|
Precision |
±1℃ |
|
Reducer |
Capillary |
|
Pump power |
1.1kW |
|
Tank capacity |
75L |
|
Inlet and outlet |
Rp1" |
|
Max.lift |
53M |
|
Max. flow |
70~116L/min |
|
N.W. |
325Kgs |
|
G .W. |
410Kgs |
|
Dimension |
129 X70 X 149 cm(LXW X H) |
|
Package dimension |
150X86X 175cm(LX W X H) |
|
Note: the working current can be different under different working conditions;
The above information is for reference only. Please subject to the actual delivered product.
Features
That is correct. The S&A CW-7500 Refrigeration industrial water chiller system has a cooling capacity of 14000W and comes with optional environmental refrigerant. It has a precise temperature control of ±1°C and features an intelligent temperature controller with 2 control modes that can be applied to different occasions. The chiller also has various setting and display functions, dual temperature to satisfy different needs, and features long adsorption filtrating and test functions to conform to fiber laser device operating requirements.
In addition, the chiller has multiple alarm functions, including compressor time-delay protection, compressor overcurrent protection, water flow alarm, and over high/low temperature alarm. It also has multiple power specifications and is approved by CE, RoHS, and REACH. The chiller comes with optional heater and water filter, and it supports Modbus-485 communication protocol, which allows the communication between the laser system and multiple water chillers to achieve two functions: monitoring the working status of the chillers and modifying the parameters of the chillers.
