MCWlaser Smoke Purifier XL-500 Filter Fume Extraction System

$1,797.00 $1,468.00 Save 18%
Model: XL-500
SHIPPING FROM: China/5-9 Days
  • MCWlaser Official Quality Inspection (100% brand new original authentic).
  • Secure payments; Lifetime Tech Support (Specialists).
  • Support Shipping Worldwide, US and EU stock.
  • Good customer service. Please contact us at info@mcwlaser.com.

Features

1. The fuselage metal frame structure, strong durability.
2. Microcomputer chip control, digital display, remote control available.
3. Filter failure alarm system.
4. Multi-layer filtration and rapid purification.
5. DC brushless motor made it a stable performance and long life.
6. Impeller made of special alloy material, anti-corrosion and larger suction.
7. Dust collection and filtration, odor filtration, fire proof.
8. Noise reduction design
9. Equiped with observation widow, you can view the sevice condition at any time.

Dimensions & weight

Dimensions:550*440*885
Weight:60KG

Waranty

One years

Certification

CE Certification

Package lnclude

XL - 500 Fume Extractor * 1
Power cord * 1(3M 10A/250V)
Smoking pipe * 1(bamboo pipe 65mm*1.4M or 75mm*1.4M)
Outside exhaust pipe * 1
Remote control * 1(infrared, maximum straight line distance 10M)
Fire proof protection net * 1
PP Medium Filter * 1
Primarry Filter * 1
Activated Carbon Filter * 2
Product Manual * 1

Main Application

Laser welding machines
Laser marking machines
Laser cleaning machines

Model: XL-500
SHIPPING FROM: China/5-9 Days

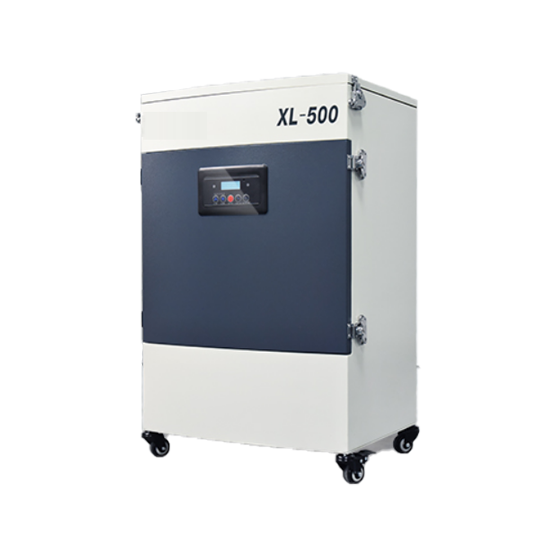

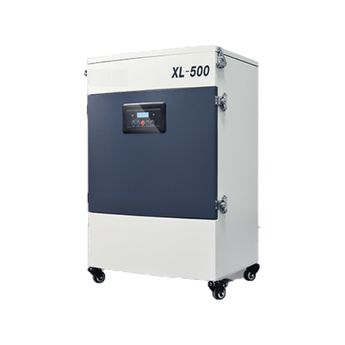

The Smoke Purifier XL-500 is an advanced and powerful air purification system specifically engineered to tackle smoke and airborne pollutants. This device is designed to effectively remove and neutralize smoke particles, fumes, and harmful gases that are commonly found in industrial settings.
The XL-500 model offers a formidable air-cleaning capacity, making it ideal for factories, manufacturing plants, workshops, and large-scale industrial facilities. Its 5 Layers filtration system, including HEPA and activated carbon filters, ensures thorough purification and enhanced air quality by capturing and eliminating a wide range of pollutants.

Parameter

Modle Certification
XL-500 CE
Power Warranty
450W 1 Year
Efficiency Filter
99.97% 5 Layers
No-load speed(r/min) Flow Rate(m³/h)
5500 700
Load wind speed(m/s) Negative pressure(Pa)
31 3000
Weight(kg) Noise(db)
60 <60
Dimensions(L*W*H) Voltage
550*440*885 AC220V/AC110V

size



Filter structure


Stainless Steel Fire Screen

425*335*25mm *1

First Effect Cotton Filter Core

450*380*100mm *1

PP High Efficiency Filter Core

450*380*100mm *1

Activated Carbon Filter Core

450x380x50mm*2

Cartridges are placed according to the standardconfiguration.
Note: Do not place the filter layer in a confusing position, but followthe direction of the arrow on the filter layer! Do not touch the inner faninlet with your hands!


Application

Applied for controlling dust, smoke, and harmful particles generated by soldering, laser work, and dust production.

Soldering
During the soldering process, a lot of fumes are generated. The particles in the smoke and harmful gases will cause great harm to the operator and the environment.

Laser
Suitable for laser marking machines. The smoke produced by laser includes inhalable powder, methanol methyl acrylate, ethyl phenyl acrylate copolymer and other volatile matter that is pungent odor.

For specific applicable machines, please consult customer service.

Dust Powder
In many industries. dust and powder substances are involved.The production of these substances will cause inconvenience and serious impacts

Our products are suitable for various machines and industries, including laser marking machines, and can effectively remove inhalable powder, methanol methyl acrylate, ethyl phenyl acrylate copolymer, and other volatile matter.

For more information on our products and how they can be applied to your specific machines and industries, please consult our customer service team. With our solutions, you can ensure a safer and healthier working environment for both operators and the environment.
