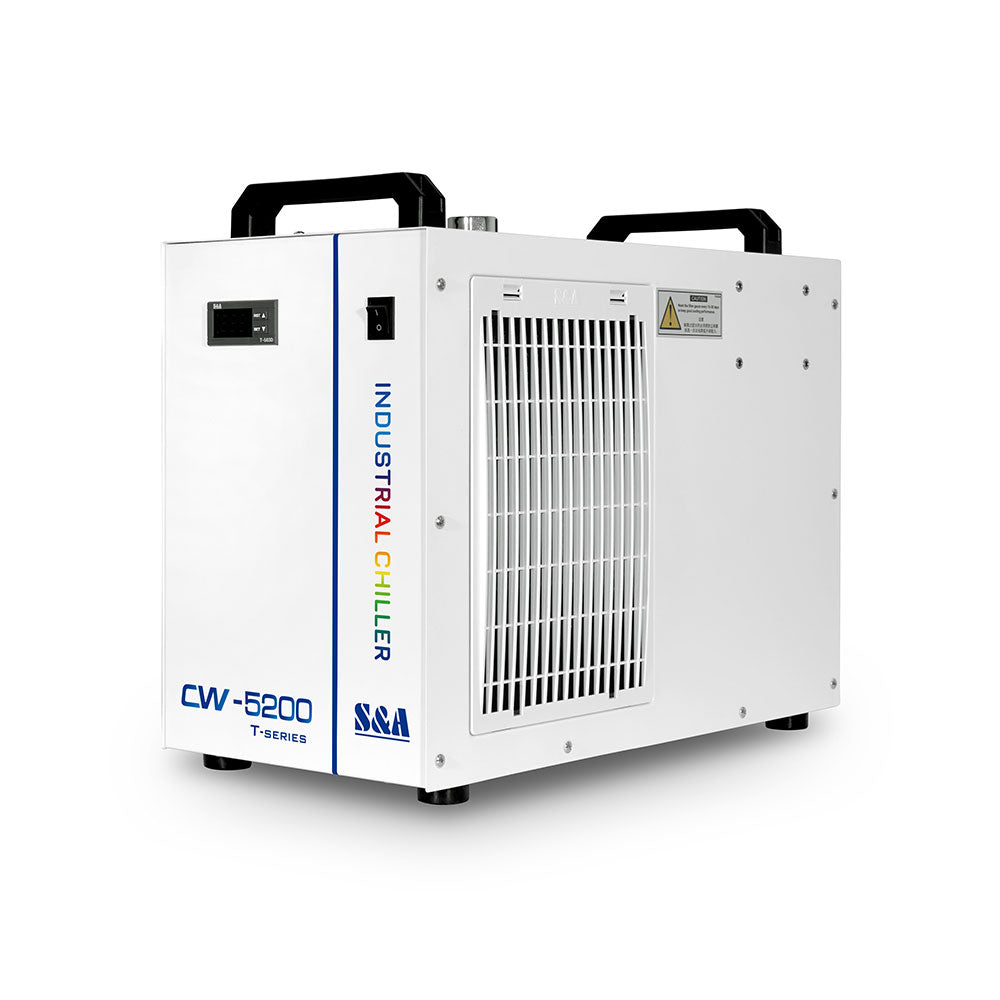

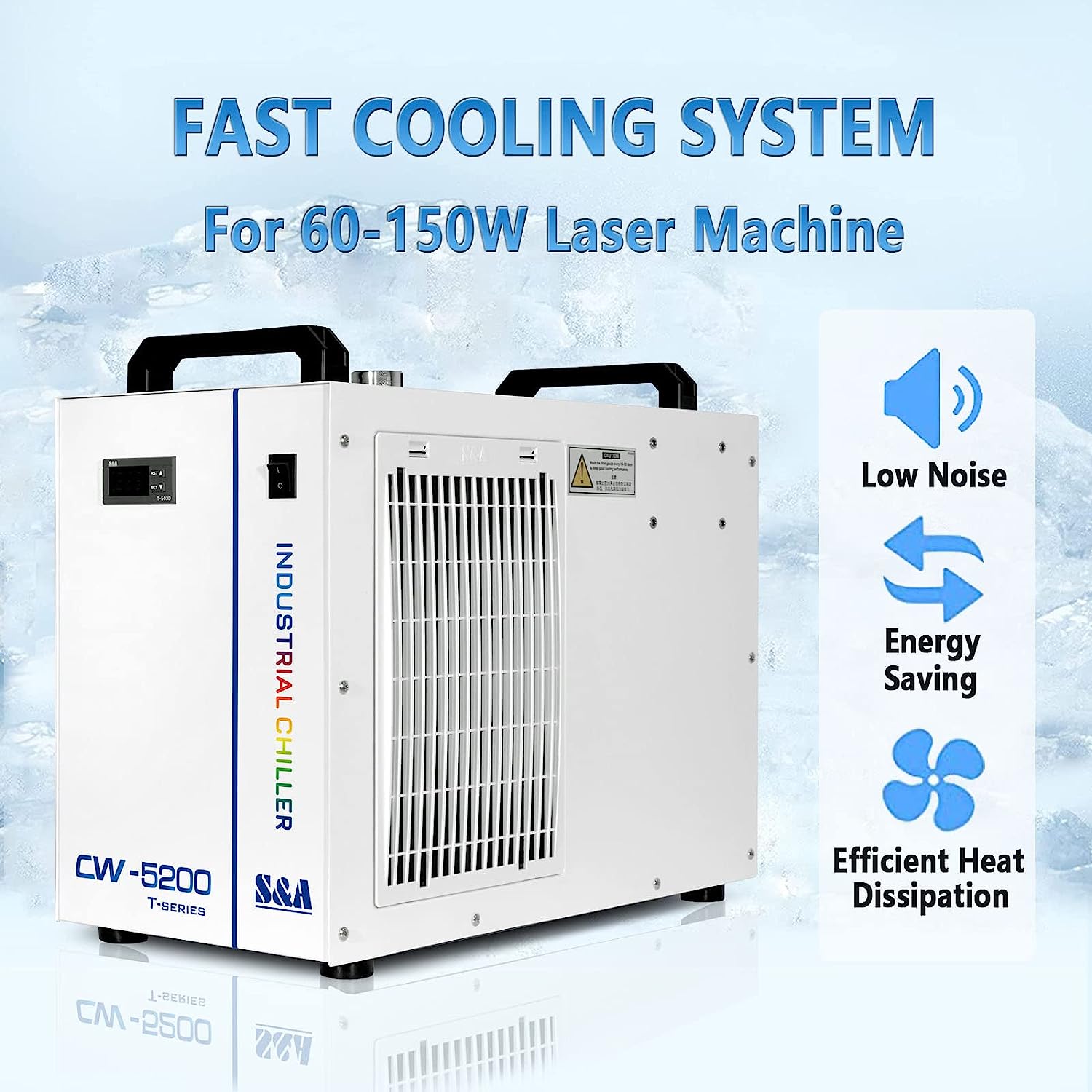

S&A Genuine CW-5200 Series (CW-5200DH/TH/DI/TI) Industrial Water Chiller Cooling Water
Main Parmeter
*Machine power: 0.82 KW
*Tank capacity: 7L
*cooling capacity: 2 .08kW,7098Btu/h
*Refrigerant charge: 420g
*Max.flow:16L/min
Advantage
*Powerful Cooling Performance
*Precise Temperature Control
*Alarms and Protection Function
*Constant temperature and intelligent temperature two temperature control modes
Size & Weight

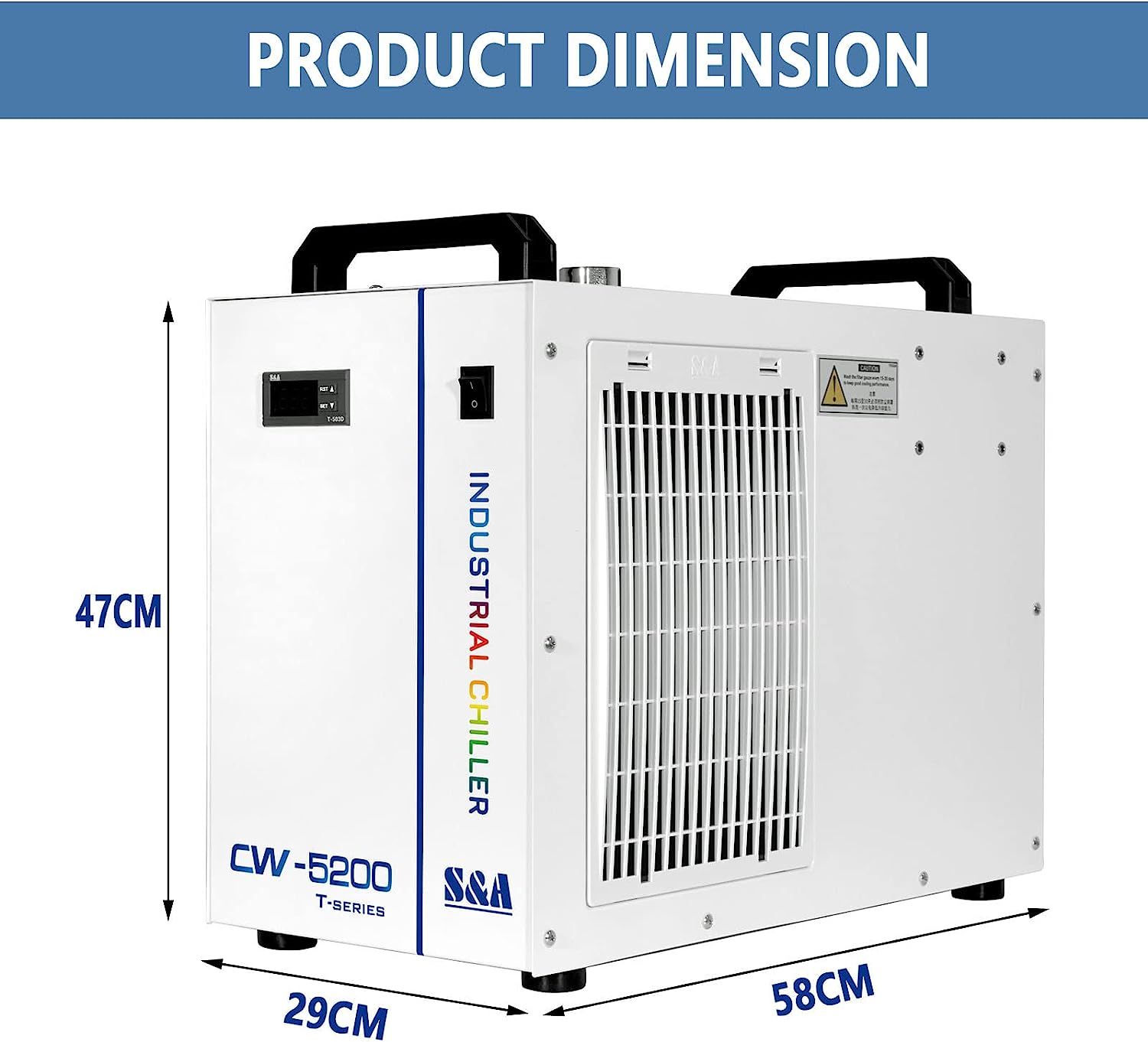

*Machine Size:58x29X47 cm (L×W× H)
*Net Weight:26Kgs
Waranty
*Worldwide Waranty 2 Years
*Free replacement parts during warranty period
Certification
*FDA Compliant
*CE Certification
*RoHS Certification
Manual Download
S&A CW-5200 industrial water chiller is the best fit to cool CO2 laser machines. The 1.85 gallon (7L) water tank runs at 3.4 gpm to remove heat from the CO2 laser tube. With cooling capacity up to 5699Btu per hour and temperature error within 0.5°C, CW-5200 can easily cool down up to 150W CO2 laser tube.
This water chiller has a cooling capacity of 1400W and has been awarded a design patent certificate, as well as CE and RoHS certifications.
Features
【Powerful Cooling】 Genuine S&A CW-5200 water chiller uses standard R410a refrigerant with 330g charged to keeps the laser cutting and engraving machine up to 150W-180W well and cool during use; Its 3.4 gpm flow rate and 0.9hp compressor cools up to 5699 Btu per hour
【Large Capacity Water Tank】1.85 gallon (7L) water tank features closed design to reduce water evaporation and provide long service between fills; Precision scale shows water level; Easy to observe and know when water filling is needed.

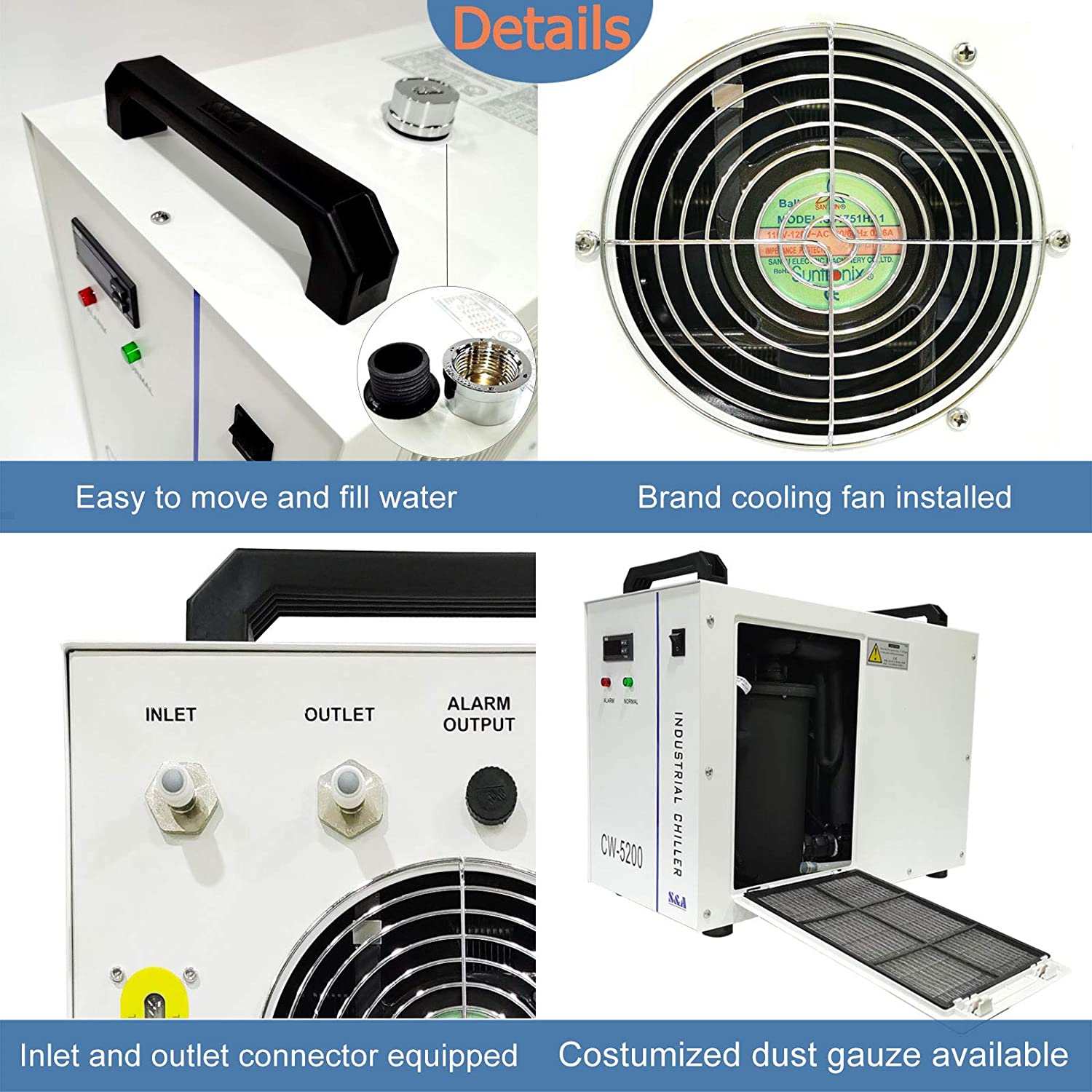

【High Quality Materials】Water inlet and outlet ports made from precision-engineered brass,it has long-term corrosion resistance;Friendly handle and customized dust-proof net;Dual cooling fans,high heat dissipating capacity.

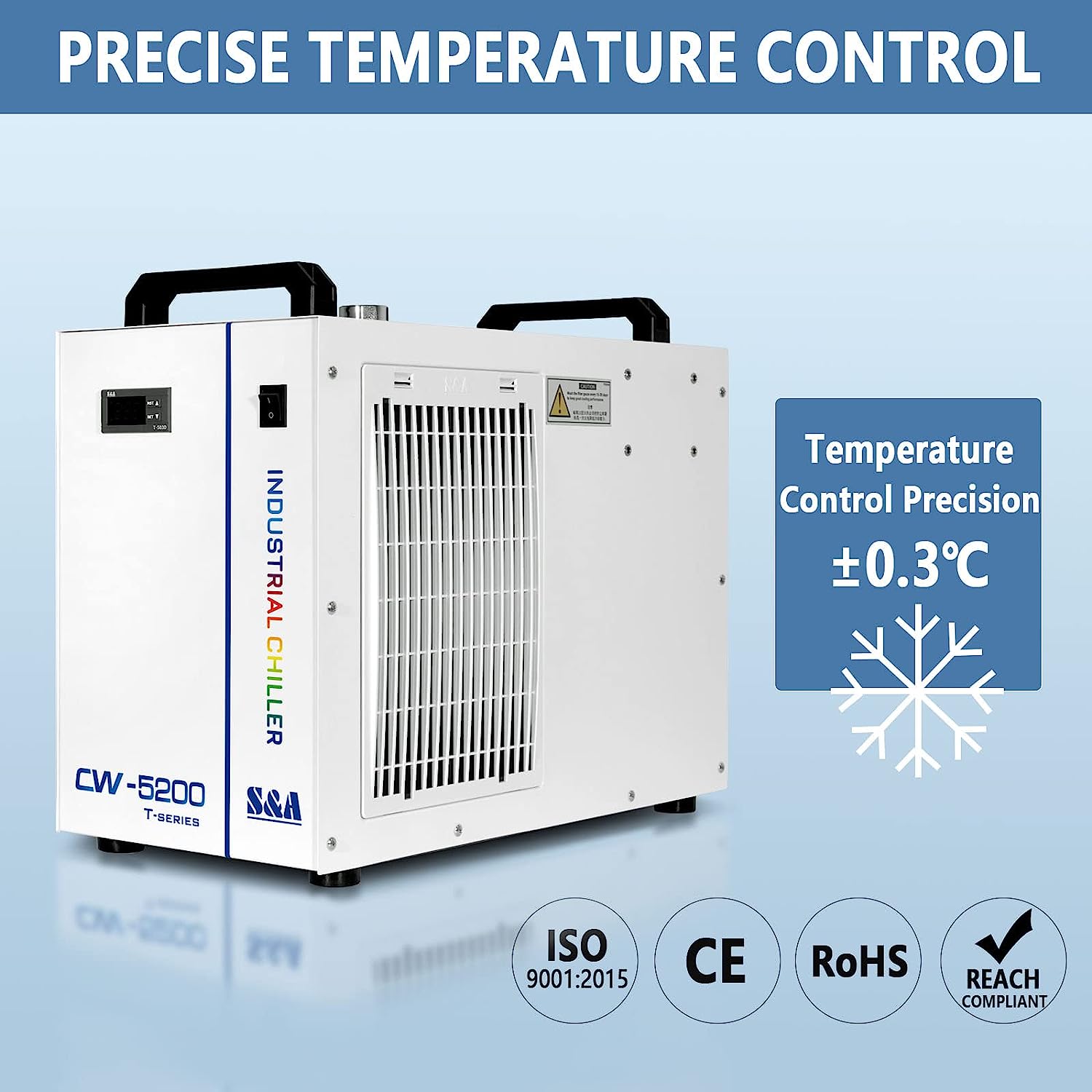

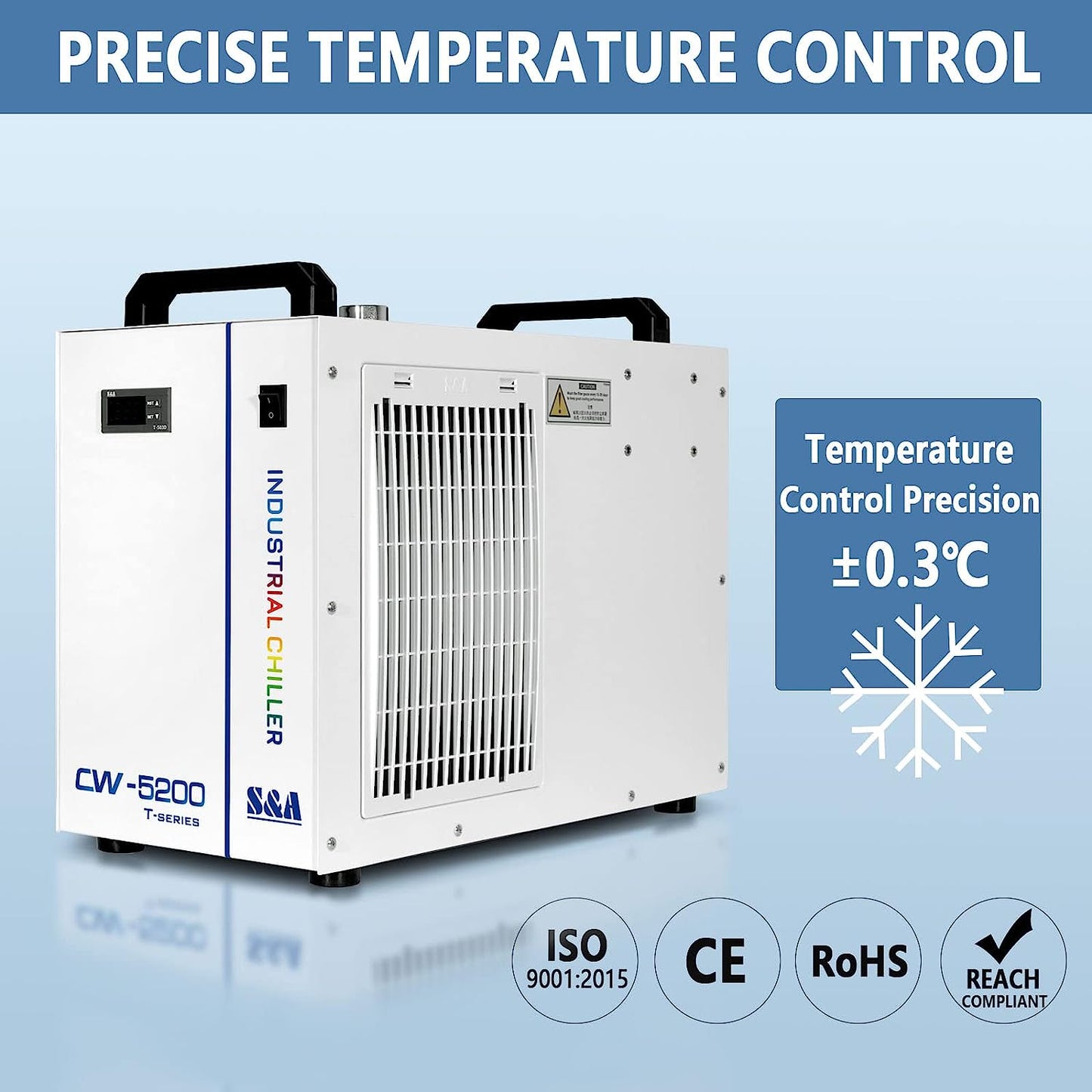

【Precise Temperature Control】S&A industrial water coolers have dual mode temperature control (automatic and intelligent),It can keeps the temperature constant within 0.3°C;Constant & Intelligent temperature mode; Automatically adjust the temperature according to the indoor environment temperature; Manually set the temperature between 5-40 degree.

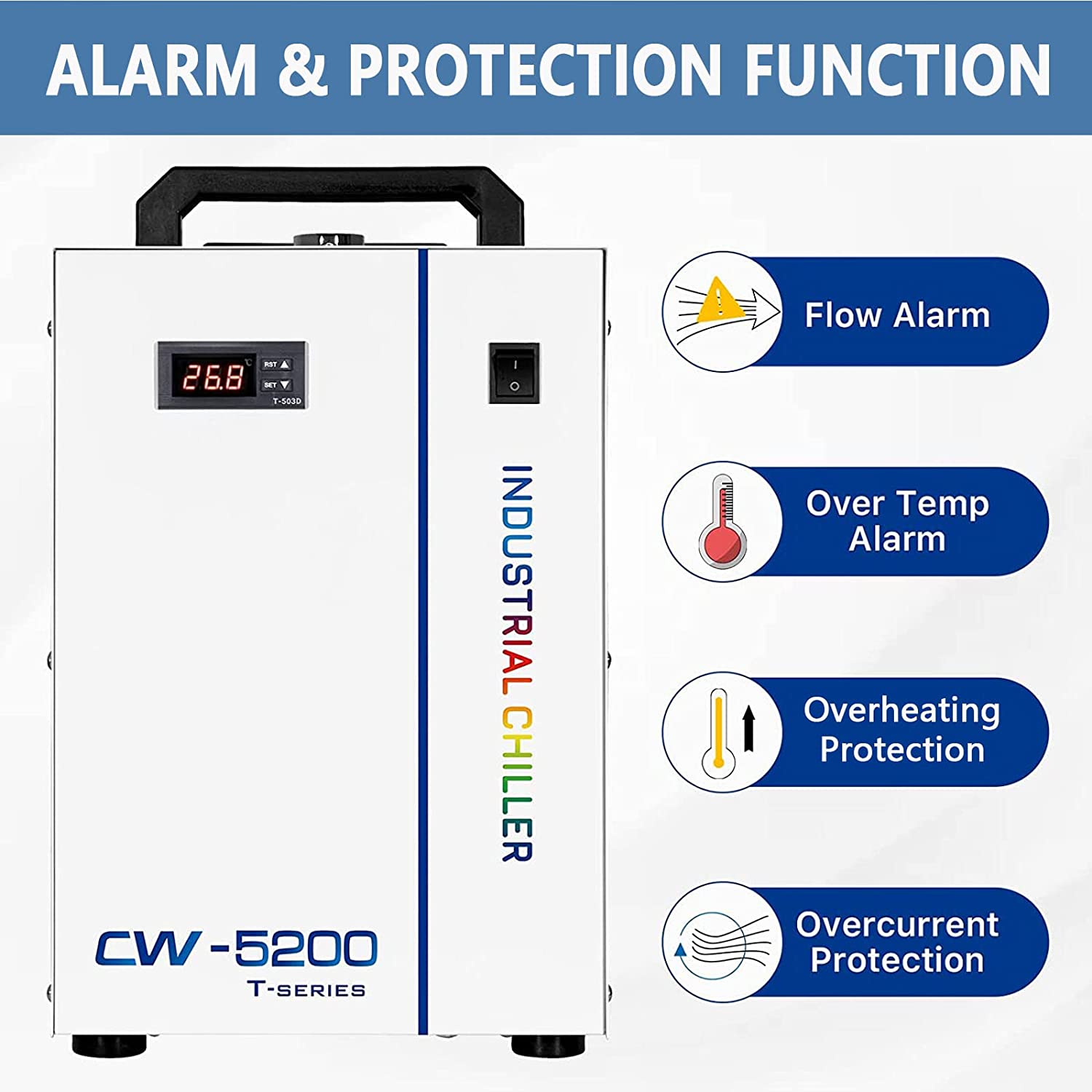

【Operational Safety】Our water coolers have multiple protection and alarm functions,automatic alarm prompt in case of abnormal flow;if the working water temperature is too high, it will give an automatic alarm;Compressor overcurrent protection: protect refrigeration stability.
【2 years warranty period】Two-year warranty and lifetime professional tech support. Free spare parts and free replacement devices based on actual faults during the maintenance period.
Parameter and Structure
| MODEL | CW-5200TH | CW-5200DH | CW-5200TI | CW-5200DI |
| Voltage | AC 1P 220~240V | AC 1P 110V | AC1P 220~240V | AC1P 110V |
| Frequency | 50/60Hz | 60Hz | 50/60Hz | 60Hz |
| Current | 0.5~4.8A | 0.5~8.9A | 0.6~4.9A | 0.6~8.6A |
| Max.power consumption | 0.62/0.74kW | 0.79kW | 0.62/0.74kW | 0.79kW |
| Compressor power | 0.49/0.61kW | 0.66kw | 0.49/0.61kW | 0.66kW |
| 0.65/0.81HP | 0.9HP | 0.65/0.81HP | 0.9HP | |
| Nominal cooling capacity | 4879Btu/h | |||
| 1.43kW | ||||
| 1229Kcal/h | ||||
| Pump powe | 0.05kW | 0.09kW | ||
| Max.pump pressure | 12M | 25M | ||
| Max.pump flow | 13L/min | 15L/min | ||
| Refrigerant | R-134a | R-410a | R-134a | R-410a |
| Precision | ±0.3℃ | |||
| Reducer | Capillary | |||
| Tank capacity | 6L | |||
| Inlet and outlet | 10mm OD 10mm Barbed connector | 10mm10mm Fast connector | ||
| N.W | 25Kg | 22Kg | 25Kg | 23Kg |
| G.W. | 28Kg | 25Kg | 28Kg | 26Kg |
| Dimension | 58X29X47cm(LXWXH) | |||
| Package dimension | 65×36×51cm (LXWXH) | |||
Note: the working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product.
Alarm function
| E1 | E2 | E3 | E4 | E5 |
|---|---|---|---|---|
| Over high room temperature | Over high water temperature | Over low water temperature | Room temperature sensor failure | Water temperature sensor failure |
Thermostat parameters list:
| Order | Code | Project Setting | Range |
Factory
Setting
|
Notes |
|---|---|---|---|---|---|
| 1 | F0 | Temperature setting | F9 – F8 | 25 | Constant temperature control effecting |
| 2 | F1 | Temperature difference values | -15 - +5 | -2 | Intelligent control effecting |
| 3 | F2 | Cooling hysteresis | 0.1 – 3.0 | 0.8 | |
| 4 | F3 | Way of control | 0 - 1 | 1 |
1: intelligent
0: constant temperature
|
| 5 | F4 | Alarm for over high water temperature | 1 - 20 | 10 | |
| 6 | F5 | Alarm for over low water temperature | 1 - 20 | 15 | |
| 7 | F6 | Alarm for over high room temperature | 40 - 50 | 45 | |
| 8 | F7 | Password | 00 - 99 | 8 | |
| 9 | F8 | The allowed highest water temperature | F0 - 40 | 30 | |
| 10 | F9 | The allowed lowest water temperature | 1 – F0 | 20 |
lnstallation and Use
The following are the installation and use conditions of our water chillers for your reference.
Our water chiller is used for cooling water. If it is other liquids, please make sure there is no corrosion for the water chiller.
When using our water chiller, the water inlet of the water chiller needs to connect with the water outlet of your equipment, and the equipment water inlet connects with the water outlet of our water chiller. It is the closed loop
It is required to meet
1. The water flow is uniform
2. There is no impurity in the circulating water.
Application
The CW-5200 chiller is a versatile cooling system suitable for various laser machines, including 150W metal laser cutting machines, acrylic CO2 laser cutting machines, laser cutters, CO2 laser cutting and engraving machines, UV laser marking machines, 8W-15W UV laser machines, laser marking machines, and UV curing system printers.

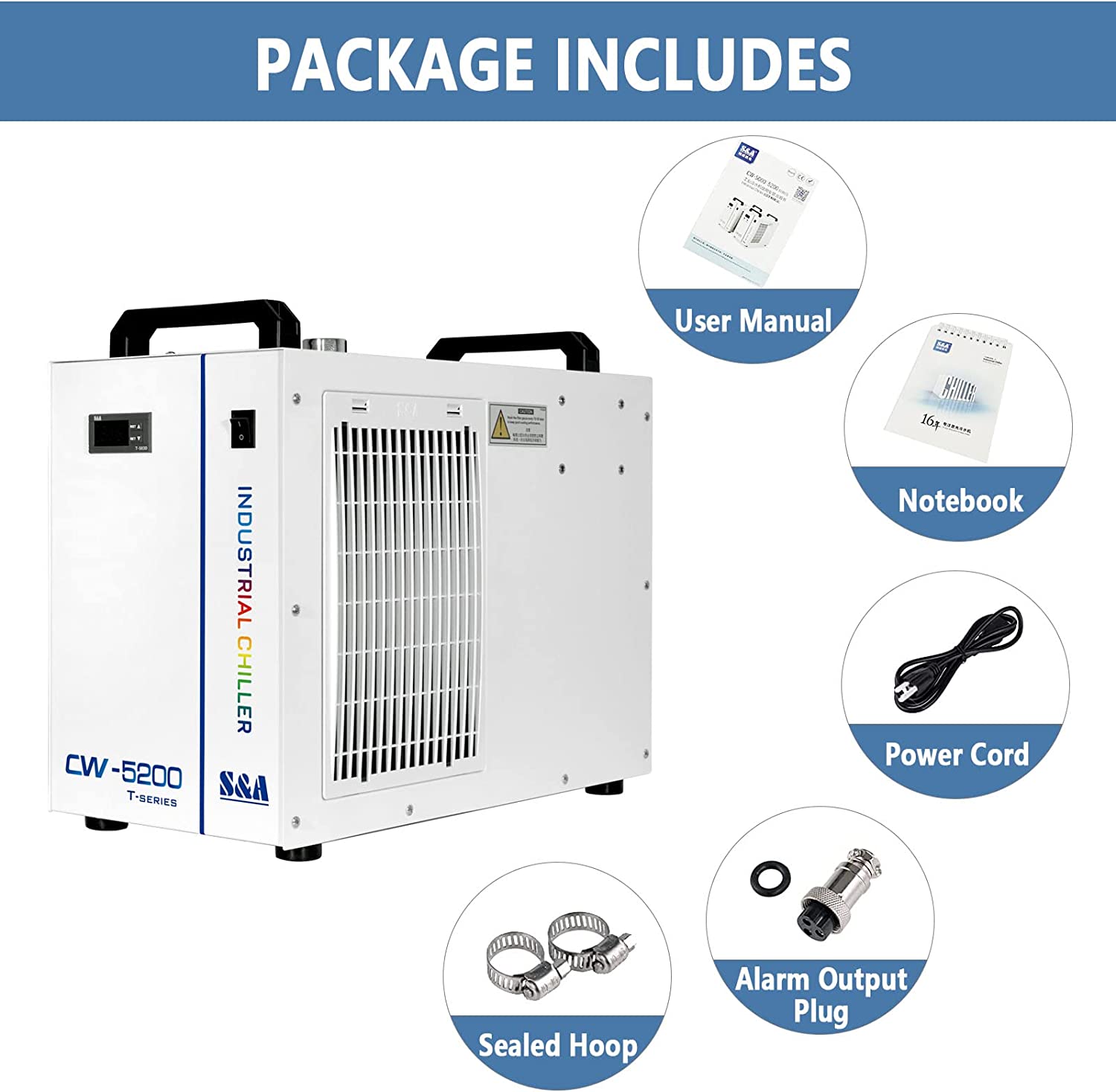

Packaging list
Maintenance
Cleaning and Antifreeze
1. To ensure good heat dissipation, please open the lid to clean the dirt after the cooler is used in the long term.
2. Ethanol can be used as a short-term antifreeze, but it is corrosive and needs to be emptied within a week.
Users in cold areas should use noncorrosive special antifreeze.
It is recommended to choose CLARIANT (Clariant) brand, there are two types of antifreeze suitable for laser systems:
1) Antifrogen-N glycol-water type (industrial products, toxic to human body)
2) Antifrogen-L propylene glycol-water type (food grade, harmless to human body)
Water Tank Water Exchange Method and Frequency
1. To exchange the water in the tank, drain the waste water out of the tank using the drain outlet, and refill the tank with clean water through the filling hole.
2.The frequency of water exchange is crucial for maintaining the quality of the circulating water and maximizing the service life of the laser tube. It is recommended to exchange the purified water once a month and the running water twice a month. It is also advised to use purified water for optimal performance.
