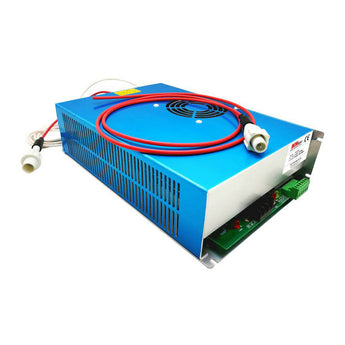

DY10 DY13 DY20 CO2 Laser Power Supply DY Series For RECI CO2 Laser Tube

DY10 DY13 DY20 CO2 Laser Power Supply DY Series For RECI CO2 Laser Tube

SKU:PS-DY101-US

Regular price $150.00 USD
Regular price $160.00 USD Sale price $150.00 USD
Sale Sold out
Model
Shopping From
  • MCWlaser Official Quality Inspection (100% brand new original authentic).
  • Secure payments; Lifetime Tech Support (Specialists).
  • Support Shipping Worldwide, US and EU stock.
  • Good customer service. Please contact us at info@mcwlaser.com.

Parameter

Model

DY10

DY13

DY20



Ac voltage

110V1 220v

Ac Frequency

47---440Hz

Max Power

450W

55ow

10oow

Max current

5A

8A

10A

output

Max DcVoltage

35KV

4oKV

5oKV

Max Dc current

25mA

28mA

35mA

Effciency

≥90%(full load condition)

MTBF

≥10,000 hours

Response speed

≤1ms(The time from when the switch signal is launched to when the output
current rises to 90% of the set current)

perating Temperature

(-10~40)C,Relative Humidity:≤90%

Insulation Withstand Voltage

Input—Output, Output—Case:AC1500V10mA 60s; the negative output
electrode is connected to the case

cooling Method

Fan Cooling(option)

Weight(kg)

1.75kg

2.25kg

2.75kg

Dimenslon L-WH(mm)

78mm*155mm*175mm

78mm61mm*247mm

79mm*200mm*290mm

Description

  1. Excellent Compatibility: The D' series power supply ([DY10/DY13/DVY2D) is specifically designed for Reci Wl series laser tubes (Model W1/W2/W4W6/WB). It is also compatible with other CO2 laser tubes ranging from 80W to 150W.
  2. High Voltage Output: The power supply operates on AC 220V or AC 110V voltage (optional) and can deliver a maximum output voltage of DC 35KV.
  3. Cutting or Sculpting Type: The cutting type offers excellent power stability and strong adaptability, while the Sculpting Type provides a quick response speed and high-quality engraving effect. It can also help extend the service life of Reci laser tubes.
  4. Easy Control and Operation: The power supply is easy to operate with a "TEST" button that allows manual testing of the output laser.
  5. 12-Month Warranty: The power supply comes with a 12-month warranty for your peace of mind.

Application

  1. lt was recommended for use with RECl laser tube 75W 80W 90W 100W 130W 150W(W1/W2/W4/ W6/W8 model).
  2. 2. It can also replace or work with the RECl old model SI S2Z1Z2S4Z4S6Z6S8 Z8 model.
