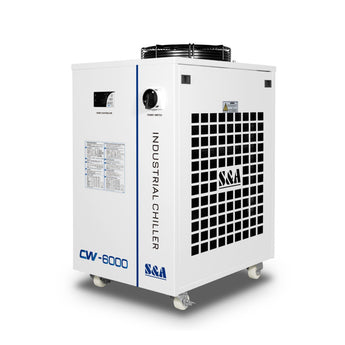

S&A CW-6000 Series (CW-6000AH/AI/AN/BH/BI/DH/DI/BN/DN) Industrial Water Chiller

$1,388.00 $1,188.50 Save 14%

Two-year Warrnty

Model: CW-6000AH 220V 50Hz
Shopping From: China/5-9 Days
  • MCWlaser Official Quality Inspection (100% brand new original authentic).
  • Secure payments; Lifetime Tech Support (Specialists).
  • Support Shipping Worldwide, US and EU stock.
  • Good customer service. Please contact us at info@mcwlaser.com.

Main Parmeter

*Machine power: 1.2-1.58KW
*Tank capacity: 15L

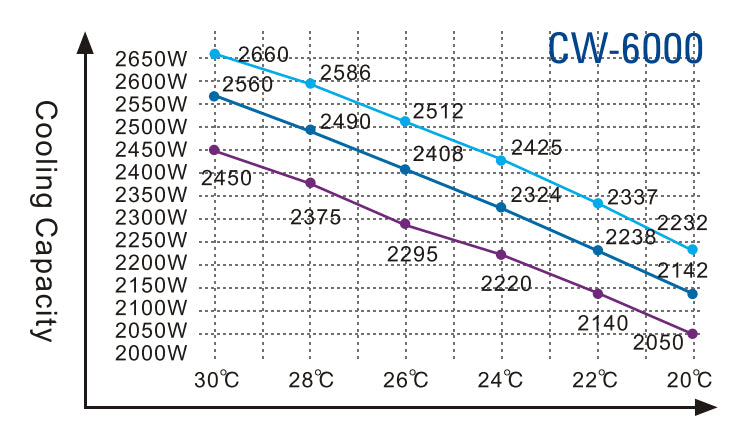

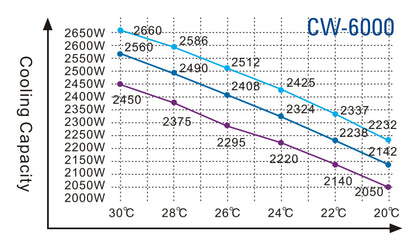

*Cooling capacity: 3.11-3.15kW, 10611-10731Btu/h
*Refrigerant charge: 650-800g
*Max.flow:13-70L/min

Advantage

*Powerful Cooling Performance
*Precise Temperature Control
*Alarms and Protection Function
*Constant temperature and intelligent temperature two temperature control modes

Size & Weight

*Machine Size:67×47× 89 cm (L×W× H)
*Net Weight:60-72Kgs

Waranty

*Worldwide Waranty 2 Years
*Free replacement parts during warranty period

Certification

*FDA Compliant
*CE Certification
*RoHS Certification

Package Include

* 1X Machine
* 1X User Manual
* 1X Notebook
* 1X Power Cord
* 1X Alarm Output Plug
* 1X Sealed Hoop

Application

1. Mainly used for cooling 300W above CO2 glass laser tubes;
2. UV laser markers, Polyurethane FoamSealing Dispenser,CO2 Laser Cutting Machine,Fiber Laser Welding Machine,Semiconductor Laser or equipment with cooling capacity requirements of 3.11-3.15kW or less.
3. If you are unsure, please contact us at info@mcwlaser.com.

Manual Download

English Version: Download

Cautions & Troubleshooting

Model: CW-6000AH 220V 50Hz
Shopping From: China/5-9 Days

The S&A CW-6000 industrial water chiller is popular for its two temperature control modes - constant temperature and intelligent temperature control. It fits to cool UV printers and laser-cutting machines. Refrigerant charge up to 650-800g.The 15L water tank runs at a max of 70L/min to remove heat from the CO2 laser tube. With a cooling capacity of up to 3.15 kW and temperature error within 0.5°C, CW-6000 can easily cool down up to 300W CO2 laser tube.
CW-6002: Dual inlet and outlet series (option); heating device (option); filter(option)

This water chiller has been awarded a design patent certificate, as well as CE, FDA, and RoHS certifications.

Suggestion:
Intelligent temperature control mode for summer
Constant temperature control mode for winter

Features

【Powerful Cooling】 Genuine S&A CW-6000 water chiller uses standard R410a refrigerant with 650-800g charged to keeps the laser tube up to 300Wabove well and cool during use; Its 13L/min- 70L/min flow rate and1.06-1.12KW compressor cools up to 10611-10731Btu/h.

【Large Capacity Water Tank】3.96 gallon (11L) water tank features closed design to reduce water evaporation and provide long service between fills; Precision scale shows water level; Easy to observe and know when water filling is needed.

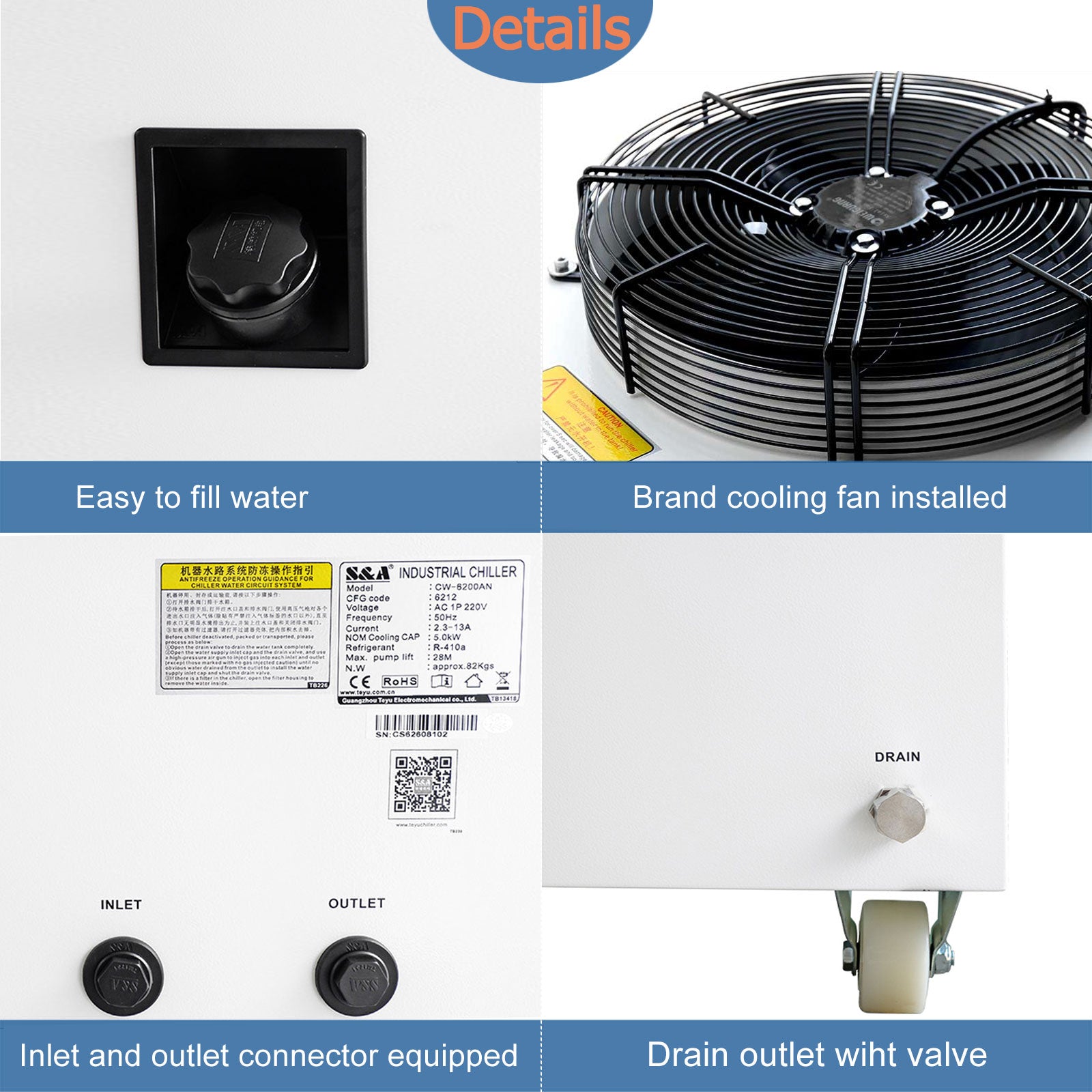

【High Quality Materials】Water inlet and outlet ports made from precision-engineered brass,it has long-term corrosion resistance;Friendly handle and customized dust-proof net;Dual cooling fans,high heat dissipating capacity.

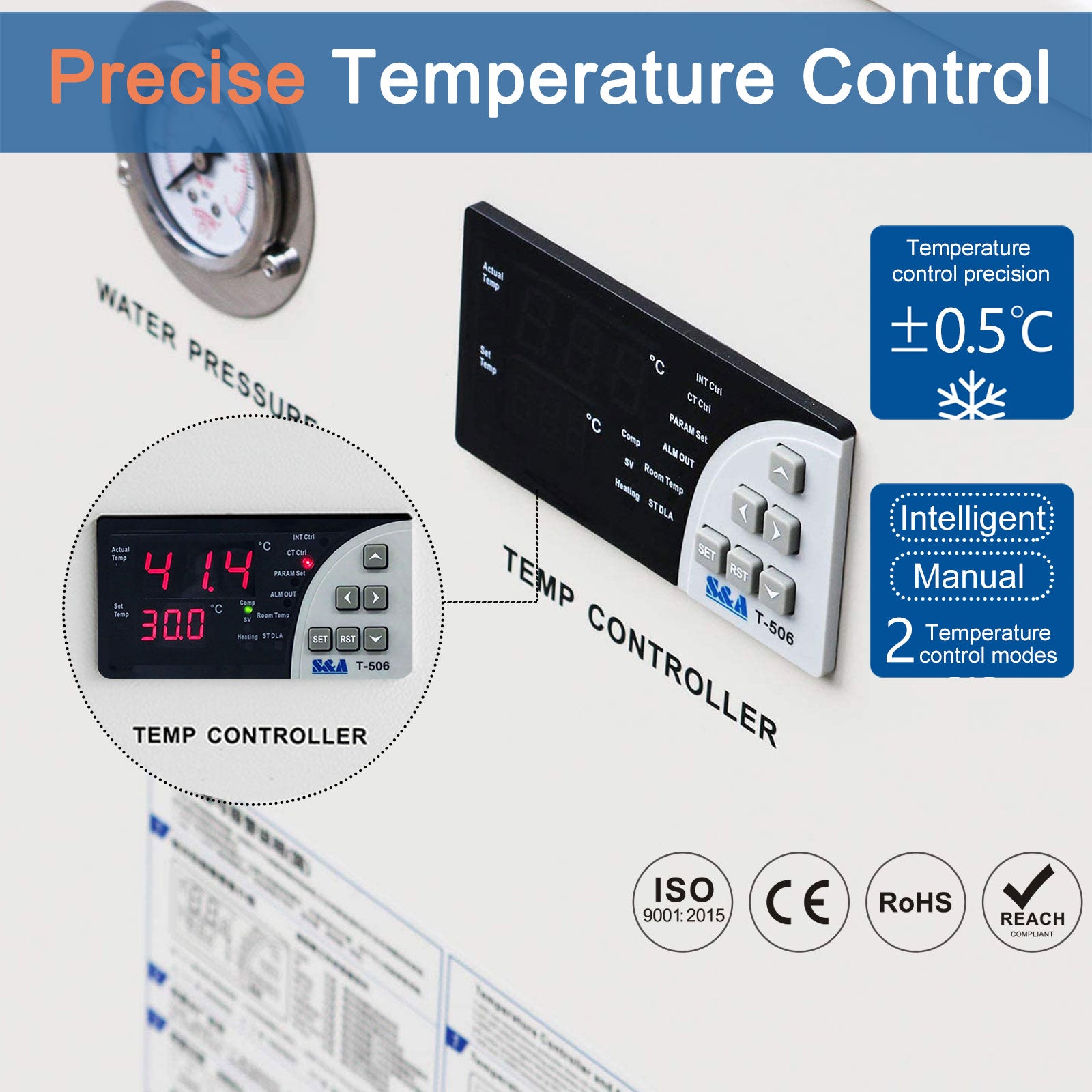

【Precise Temperature Control】S&A industrial water coolers have dual mode temperature control (automatic and intelligent),It can keeps the temperature constant within 0.3°C;Constant & Intelligent temperature mode; Automatically adjust the temperature according to the indoor environment temperature; Manually set the temperature between 5-40 degree.

【Operational Safety】Our water coolers have multiple protection and alarm functions,automatic alarm prompt in case of abnormal flow;if the working water temperature is too high, it will give an automatic alarm;Compressor overcurrent protection: protect refrigeration stability.

【2 years warranty period】Two-year warranty and lifetime professional tech support. Free spare parts and free replacement devices based on actual faults during the maintenance period.

Parameter

CW-6000 CW-6000AH|CW-6000BH CW-6000DH CW-6000AI| CW-6000BI CW-6000DI CW-6000AN   CW-6000BN CW-6000DN
Voltage AC 1P 220~240V AC 1P 110V AC1P 220~240V AC 1P 110V AC 1P 220~240V AC 1P 110V
Frequency 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz
Current 0.5~6A 0.5~5.2A 0.5-8.9A 0.6-6.1A 0.6~5.3A 0.6~9A 2.3~7.8A 2.1~6.6A 6-14.4A
Max.power consumption 1.02kW 1.04kw 0.96kW 1.06kW 1.08kW 1kW 1.34kW 1.36kW 1.51kMW
Compressor powe 0.88kW 0.88kW 0.79kW 0.88kW 0.88kW 0.79kW 0.88kW 0.88kW 0.79kW
1.17HP 1.17HP 1.06HP 1.17HP 1.17HP 1.06HP 1.17HP 1.17HP 1.06HP
Nominal cooling capacity 10713Btu/h
3.14kW
2699Kcal/h
Pump power 0.05kW 0.09kW 0.37kW 0.6kW
Max.pump pressure 12M 25M 27M 40M
Max.pump flow 13L/min 15L/min 75L/min
Refrigerant R-410a
Precision ±0.5℃
Reducer Capillary
Tank capacity 10L
Inlet and outlet Rp1/2"
N.W 35Kg 36Kg 43Kg
G.W. 44Kg 45Kg 52Kg
Dimension 59X38X74cm(LXWXH)
Package dimension 66X48X92cm(LXWXH)

Note: the working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product.

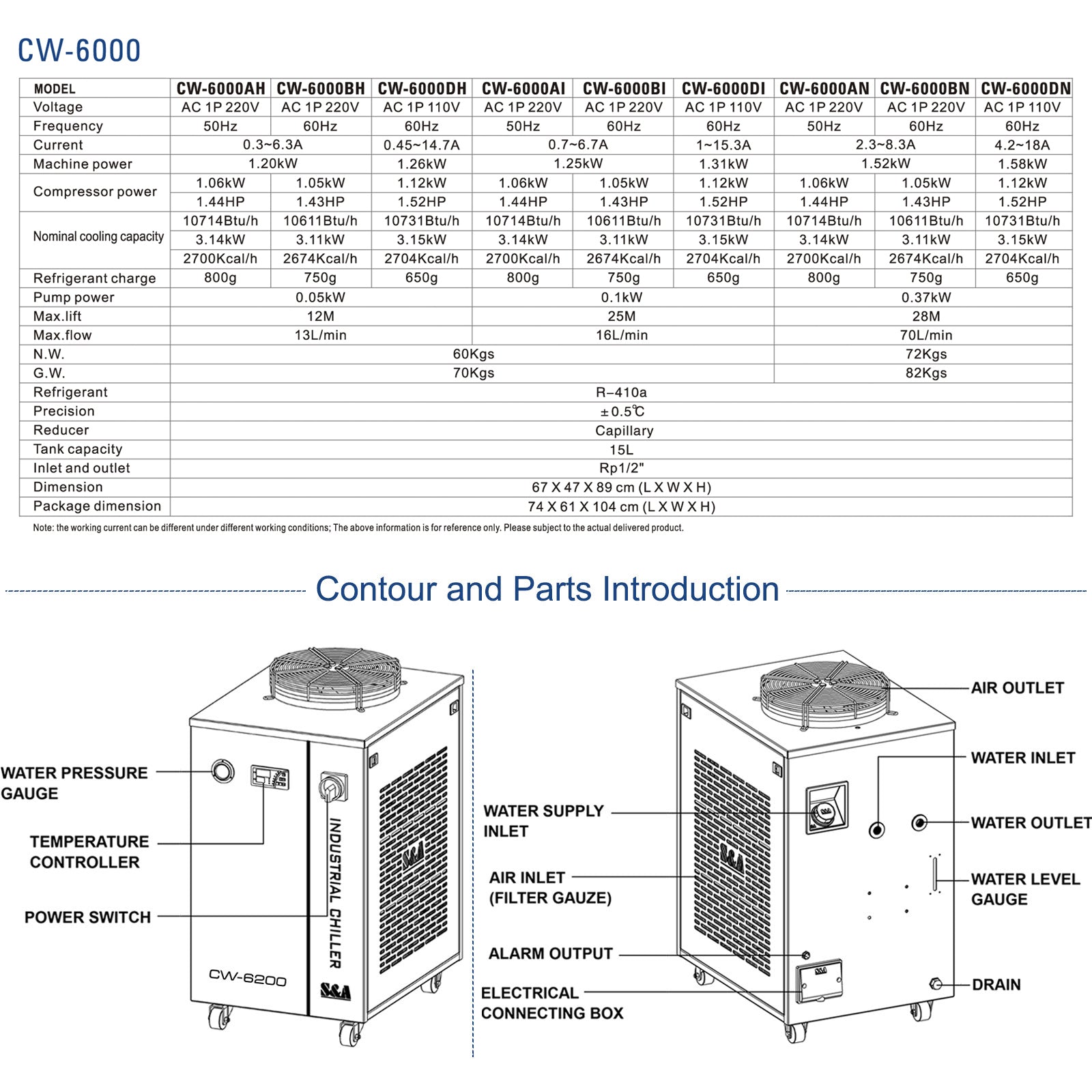

Structure

Application

 Packing List

GET IT TOUCH

You can contact our head-office directly,also you can contact our agent which is near you.Of course,free live-chat is available and you can get help immediately.


Customer Reviews

Based on 5 reviews
80%
(4)
20%
(1)
0%
(0)
0%
(0)
0%
(0)
C
Customer

I use this with my laser and my high pressure compressor and it works great

b
becky jan

Works as advertised. Keeps my laser operating at a constant safe temp. Not very nosey. Not very noticeable over the noise of the laser. Been using for two months and no problems.

A
ALFRED MARSHAL

I had a problem with my machine but the problem was taken care of promptly by replacing it. Very satisfied with my purchase.

G
G.
Good brand

The S&A brand chiller is very well made and constructed with silver solder joints and fine workmanship.

I like it very much.

R
Ross McArd
The quality of the chiller was amazing !

The chiller ran great, just didn't have enough water pressure to satisfy my needs (I am using it for an industrial induction Melter not a laser.). The other alternatives were 3 times the price! I just ordered the 6000AN larger model which should work fine for my needs.
