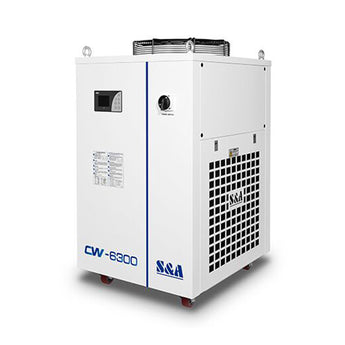

S&A Genuine CW-6300AN Industrial Water Chiller Cooling for CO2 Laser Tube, CNC Spindle,Laser Welding Machine
S&A Genuine CW-6300AN Industrial Water Chiller Cooling for CO2 Laser Tube, CNC Spindle,Laser Welding Machine
SKU:CW-6300AN
Two-year Warrnty
- MCWlaser Official Quality Inspection (100% brand new original authentic).
- Secure payments; Lifetime Tech Support (Specialists).
- Support Shipping Worldwide, US and EU stock.
- Good customer service. Please contact us at info@mcwlaser.com.
Couldn't load pickup availability
Description
The S&A CW-6300 series is a high-precision compression refrigeration small water chiller, designed with intelligent temperature control, completed configuration, perfect protection, and alarm systems. Our industrial water chillers are equipped with two temperature control modes: constant temperature and intelligent temperature control. With the intelligent mode, the water temperature is automatically adjusted based on ambient temperature changes. This one-key solution provides customers with worry-free water temperature adjustment for seasonal changes.
Parameter
MODEL |
CW-6300AN |
CW-6300BN |
CW-6300EN |
Voltage |
AC 1P 220~240V |
AC 1P 220~240V |
AC 3P 380V |
Frequency |
50Hz |
60Hz |
50Hz |
Current |
3.4~18.1A |
3.9~22.1A |
1.2~7.8A |
Machine Power |
3.44kW |
4.0kW |
4.0kW |
Compressor power |
2 64kW |
3.15kW |
2.65kW |
3.59HP |
4.28HP |
3.60HP |
|
Nominal cooling capacity |
26826Btuh |
32423Btuh |
27440Btu/h |
7.86kW |
9.5kW |
8.04kW |
|
6758Kcal/h |
8168Kcal/h |
6913Kcalh |
|
Refrigerant charge |
2150g |
2100g |
2350g |
Pump power |
0.55kW |
0.75kW |
|
Max.lift |
44M |
54M |
|
Max.flow |
70L/min |
||
Refrigerant |
R-410a |
||
Precision |
±1℃ |
||
Reducer |
Capillary |
||
Tank capacity |
40L |
||
Inlet and outlet |
Rp1" |
||
N.W. |
118Kgs |
125Kgs |
132Kgs |
G.w. |
145Kgs |
152Kgs |
149Kgs |
Dimension |
83*65x117cm(L xWxH) |
||
Package dimension |
95*85x134cm(L xWxH) |
Features
The S&A CW-6300 series is a small but powerful high-precision compression refrigeration water chiller, with intelligent temperature control, completed configuration, perfect protection and alarm system. It boasts an 8500W cooling capacity with optional environmental refrigerant and a ±1℃ precisely temperature control for consistent performance.
The intelligent temperature controller has 2 control modes, each applicable to different scenarios with various setting and display functions. Additionally, it has multiple alarm functions including compressor time-delay protection, compressor overcurrent protection, water flow alarm, and over high / low temperature alarm. It has multiple power specifications and is CE and RoHS approved, ensuring safety and quality. With a long working life and simple operation, it is an ideal solution for cooling applications. Optional heater and water filter are also available.
Tips: Cooling water additive is forbidden by express company, so we could not put it into the package.You can buy it from local.
Specification
CW-6300: Applied to cool co2 glass laser tube
CW-6300: Applied to cool co2 metal laser tube;
CW-6300: Applied to cool CNC spindle ect.;
CW-6302: Dual inlet and outlet series (option); heating device (option); filter(option)
