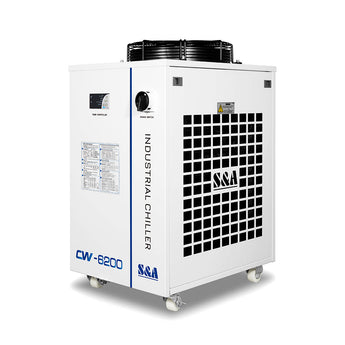

S&A Genuine CW-6200 Series (CW-6200AI/AN/BI/BN) Industrial Water Chiller
Main Parmeter
*Machine power: 1.97-2.25KW
*Tank capacity: 14L
*Cooling capacity: 5.04-5.08kW,17201-17338Btu/h
*Refrigerant charge: 1100-1200g
*Max.flow:15-75L/min
Advantage
*Powerful Cooling Performance
*Precise Temperature Control
*Alarms and Protection Function
*Constant temperature and intelligent temperature two temperature control modes
Size & Weight
*Machine Size::67×47× 89 cm (L×W× H)
*Net Weight:58-61KG
Waranty
*Worldwide Waranty 2 Years
*Free replacement parts during warranty period
Certification
*FDA Compliant
*CE Certification
*RoHS Certification
Package Include
* 1X Machine
* 1X User Manual
* 1X Notebook
* 1X Power Cord
* 1X Alarm Output Plug
* 1X Sealed Hoop
Application
1. Mainly used for cooling 300W above CO2 glass laser tubes;
2. CO2 Laser Cutting Machine, UV laser markers, Polyurethane FoamSealing Dispenser,Fiber Laser Welding Machine or equipment with cooling capacity requirements of 5.04-5.08kW or less.
3. If you are unsure, please contact us at info@mcwlaser.com.
Manual Download
English Version: Download
Cautions & Troubleshooting
The S&A CW-6200 industrial water chiller is popular for its two temperature control modes - constant temperature and intelligent temperature control. It fits cool laser welding machines
and laser cutting machines. Refrigerant charge up to 1100-1200g.The 14L water tank runs at a max of 70L/min to remove heat from the CO2 laser tube. With a cooling capacity of up to 5.08 kW and temperature error within 0.5°C.
CW-6202: Dual inlet and outlet series (option); heating device (option); filter(option)
This water chiller has been awarded a design patent certificate, as well as CE, FDA, and RoHS certifications.
Suggestion:
Intelligent temperature control mode for summer
Constant temperature control mode for winter
Features
【Powerful Cooling】Genuine S&A CW-6200 water chiller uses standard R410a refrigerant with 1100-1200g charged to keeps the laser tube up to 300W above well and cool during use; Its 15L/min- 75L/min flow rate and 1.97-2.25KW compressor cools up to 17201-17338Btu/h.
【Large Capacity Water Tank】3.7 gallon (14L) water tank features closed design to reduce water evaporation and provide long service between fills; Precision scale shows water level; Easy to observe and know when water filling is needed.
【High Quality Materials】Water inlet and outlet ports made from precision-engineered brass,it has long-term corrosion resistance;Friendly handle and customized dust-proof net;Dual cooling fans,high heat dissipating capacity.
【Precise Temperature Control】S&A industrial water coolers have dual mode temperature control (automatic and intelligent),It can keeps the temperature constant within 0.5°C;Constant & Intelligent temperature mode; Automatically adjust the temperature according to the indoor environment temperature; Manually set the temperature between 5-40 degree.
【Operational Safety】Our water coolers have multiple protection and alarm functions,automatic alarm prompt in case of abnormal flow;if the working water temperature is too high, it will give an automatic alarm;Compressor overcurrent protection: protect refrigeration stability.
【2 years warranty period】Two-year warranty and lifetime professional tech support. Free spare parts and free replacement devices based on actual faults during the maintenance period.
Parameter
| 6200 | CW-6200AI | CW-6200BI | CW-6200AN | CW-6200BN |
| Voltage | AC 1P 22 | 0~240V | AC 1P 22 | 0~240V |
| Frequency | 50Hz | 60Hz | 50Hz | 60Hz |
| Curren | 0.6~12.2A | 0.6~11.4A | 2.3~13.9A | 2.1~8.8A |
| Max.power consumption | 1.97kW | 1.95kW | 2.25kW | 1.88kW |
| Compressor power | 1.75kW | 1.7kW | 1.75kW | 1.33kW |
| 2.38HP | 2.31HP | 2.38HP | 1.78HP | |
| Nominal cooling capacity | 17401Btu/h | |||
| 5.1kW | ||||
| 4384Kcal/h | ||||
| Pump power | 0.09kW | 0.37kW | ||
| Max.pump pressure | 25M | 27M | ||
| Max.pump flow | 15L/min | 75L/min | ||
| Refrigeran | R-410a | |||
| Precision | ±0.5℃ | |||
| Reduce | Capillary | |||
| Tank capacity | 14L | |||
| Inlet and outlet | Rp1/2" | |||
| N.W. | 58Kg | 56Kg | 57Kg | |
| G.W | 70Kg | 67Kg | 68Kg | |
| Dimension | 67X47X89cm(LXWXH) | |||
| Package dimension | 73×57X105cm(LXWXH) | |||
Note: the working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product.
Structure
Application
Packing List
