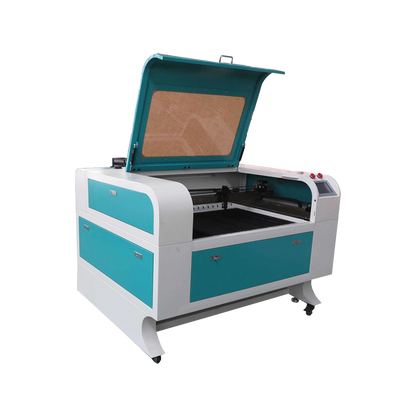

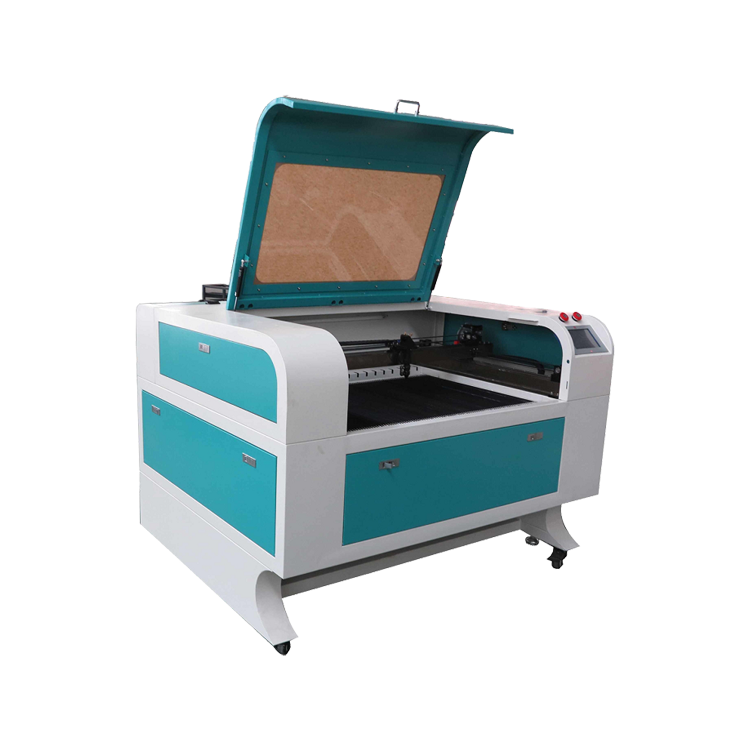

MCWlaser 60W~100W CO2 Laser engraver & Rotary Chuck 90*140cm Working Area
Description
The MCWlaser 60W-100W CO2 Laser engraver with a rotary attachment is a powerful and versatile tool for engraving and cutting a wide range of materials. It uses a high-powered CO2 laser to create precision cuts and etchings on surfaces such as wood, acrylic, leather, and more.
The included rotary attachment allows for cylindrical objects such as glasses, bottles, and pens to be engraved easily and accurately. This feature makes the MCWlaser 60W-100W CO2 Laser engraver ideal for businesses that specialize in personalized gifts or promotional items.
The laser engraver has a large work area of up to 140cm*90cm inches, which allows for larger objects to be engraved or multiple smaller objects to be engraved at once. The engraving process is controlled by the included software, which allows for precise control over the laser's speed and power.
Parameter
Power supply | AC220±10%50 HZ/AC110±10%50 HZ |
Laser type | Hermetic Co2 glass tube |
Worktable | Honeycomb or alumium knife worktable |
Cutting thickness | 18 mm (Depends on different materials) |
Applicable Materials | Acrylic,Glass,crystal,wood,leather,cloth,rubber,papermarble,ceramic,etc. |
Max moving speed | 40,000 mm/min |
Laser energy control | 1-100% set by hand or software |
Min shaping character | Character:3*3 mm; letter:2*2 mm |
perating temperature | 5C-35°C |
Data transfer interface | uSB Udisk/Ethernet |
System environment | WINDoWs 2000/ xP/Vista/Win7/Win8/win10 |
Cooling way | Water cooling and protection system |
Graphic format supported | The file which CorelDraw.AutoCad,CaDian,Illustrator and laserwork can identify |
Memory | 256 MB |
Color Separation | Separation of cutting up to 256 colors |
Package Inclusion | focus ruler,Software,VIDEO USER MENU CD,Air pump gun,Power cables,USB cables,CW5200 industrial chiller (optional》,Water Pipe,Smoke Vent-pipe,Air Blow Pipe ,exhaust fan,Tools bag |
warranty | 2 years for machine consumable items : laser tube 3 months /laser tube 10 months,lens and mirrors 3 months |
Dimensions | |
Dimensions(package) | 2120*1650*1290 mm |
Net IGross Weight | 460/550KGs |
Features

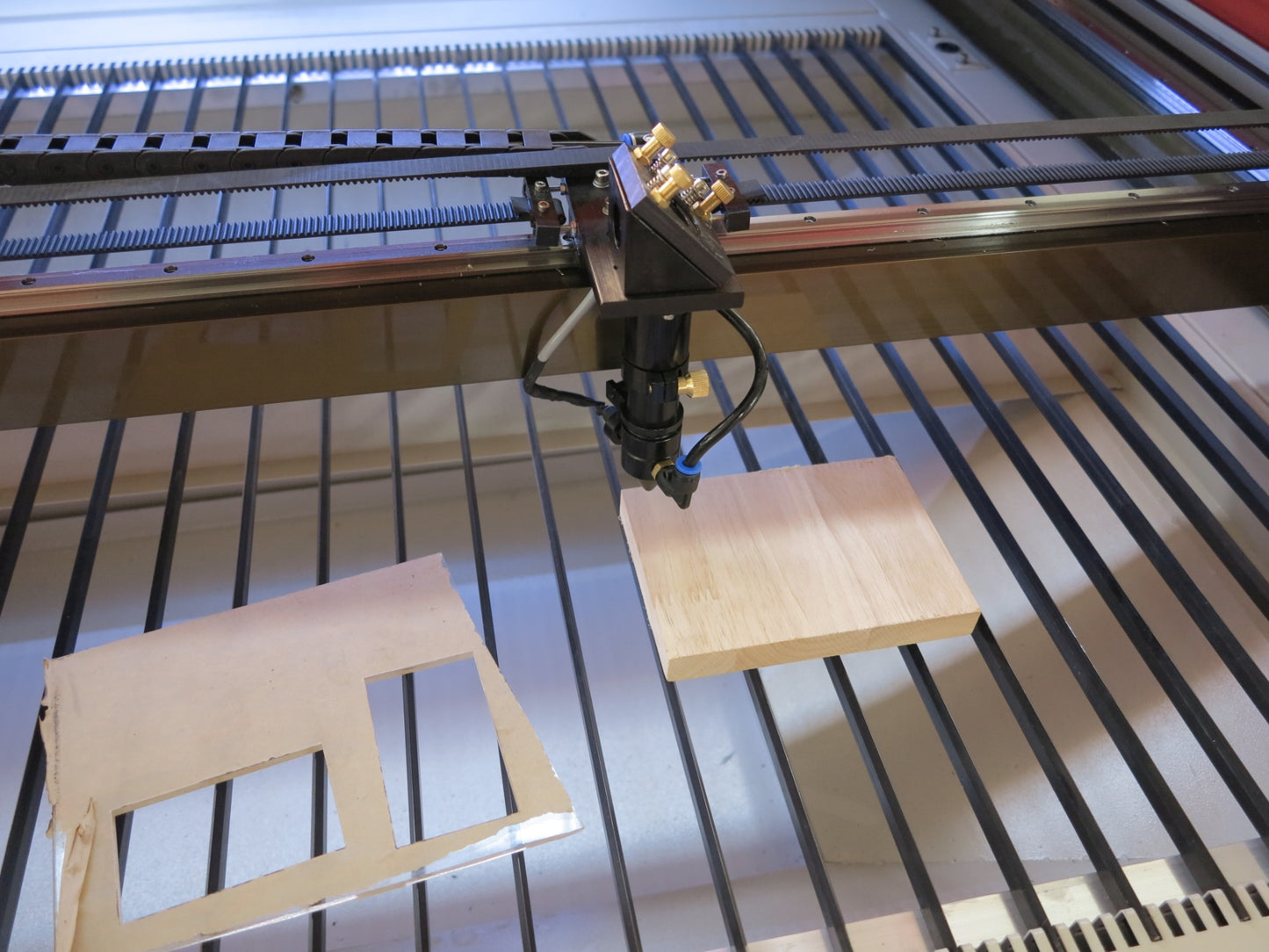

- Our machine is equipped with top-of-the-line imported linear guides and famous brand stepper motors, ensuring high precision and high speed while producing low heat and noise. This guarantees stable operation and optimal performance.
- We use a high-quality CO2 laser tube and power supply to ensure full power and a long service life, ensuring your investment lasts for years to come.
- Our machine features an upper and lower honeycomb platform that enhances its ability to deal with smoke and debris, making it capable of processing materials of varying thicknesses.
- The machine includes red light positioning, automatic blowing, water protection, and an emergency automatic stop feature to ensure safe and efficient operation.
- Our software can be easily embedded in CorelDRAW\CAD software to directly output graphic files, and it can handle a variety of graphics formats, including EMF, JPG, PLT, WMF, BMP, JPEG, and more.
- With a USB port that supports U disk function, our machine can realize off-line operation, enabling file sharing for greater flexibility and convenience.
- The color screen control panel offers multi-language selection, including English, French, German, Italian, Spanish, and more. Please note that the machine is compatible with Win 7, Win 8, Win10, and Window XP, but not Mac systems.
- Our machine features a reinforced and thickened fuselage, ensuring greater stability and a longer service life. You can rest assured that it will be transported safely.
- Optional spare parts, such as a rotary chuck, can be added to further enhance the machine's capabilities.
Applicable Industry
Advertising, art gifts, clothing, leather, toys, architectural decoration, computer embroidery, packaging and printing, paper products, shoemaking, furniture, model industries, crafts, stamp, etc.
Applicable Material
Material | Engraving | Cutting | Material | Engraving | Cutting |
Natural wood | √ | √ | Paper | √ | √ |
Acrylic | √ | √ | Mylar | √ | √ |
Glass | √ | x | Pressboard | √ | √ |
Bouble color plate | √ | √ | Rubber | √ | √ |
Bamboo | √ | √ | Plywood | √ | √ |
MDF | √ | √ | Fiberglass | √ | √ |
Cloth | √ | √ | Painted metal | √ | √ |
Leather | √ | √ | Plastic | √ | √ |
Marble | √ | x | Ceramic | √ | x |
Matte boards | √ | √ | Coated Metal | √ | x |
Stone | √ | x | Other materials | √ | √ |
