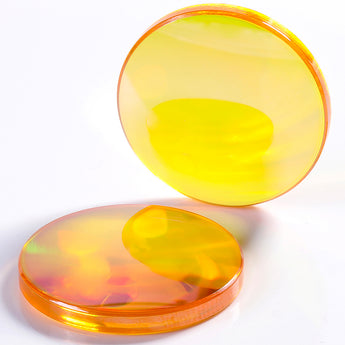

The MCWlaser Lens for CO2 Laser 10600nm 10.6um - the perfect choice for precision engraving and cutting.
1.Hight class CVD Znse material (US II-VI)
2.Our double-sided solid coating ensures extended durability and wiping resistance, while our precision slicing, polishing, and grinding processes guarantee excellent optical properties and high working efficiency.
3.With high-temperature laser resistance and a laser transmittance of up to 99.8%, our lens is the best option for your laser applications.
4.This focus lens has passed Raw Material Absorption Test, Surface Quality Test, Surface Roughness Measurement, Optical Profiling, Centering Tolerance Test, and the quality is guaranteed.
Attention:
To avoid lens breakage, follow these tips:
(1) Ensure proper air cooling to prevent overheating and cracking.
(2) Watch out for condensation water drops in the lens barrel, as they may cause breakage.
(3) Keep the lens clean and free of debris from the cut or engrave material to avoid uneven heating over time, which may cause breakage. Clean with a cotton ball dipped in absolute alcohol or acetone.
(4) When adjusting the light path, ensure that the laser does not accidentally hit the edge of the lens or the junction of the lens barrel, as this may cause breakage.
Choose MCWlas Lens for CO2 Laser 10600nm 10.6um for reliable, efficient, and high-quality laser engraving and cutting.
 Parameters
| Material | CVD znse/ ll-VIznse | Centration | <3 arc minutes | |
| Wavelength | 10.6um | Clear Aperture | >90% | |
| Transmittance | ≥99.8% | Surface Figure | <λ/2 per 1" Dia | |
| DiameterTolerance | +0/-0.13mm | Surface Quality | 40- 20 scratch and dig | |
| Thickness Tolerance | ±10.25mm | AR/AR Coating | R<0.5% per surface | |
| FL Tolerance | <±2% | Compatible Power | 0-500w | |
| Thickness | 7.87mm | Shape | Plano-convex |
How to Determine Focal Length
Focal length is the distance between the lens and the workpiece(material being cut or engraved).Before replace or install the lens, please confirm the diameter and focal length firstly. You may confirm the focal length of your lens according to the following pic.
Tips
For engraving, we recommend using a laser lens with a focal length of 38.1mm or 50.8mm. If you're planning to cut, we suggest using a laser lens with a focal length of 63.5mm, 76.2mm, 101.6mm, or 127mm.
