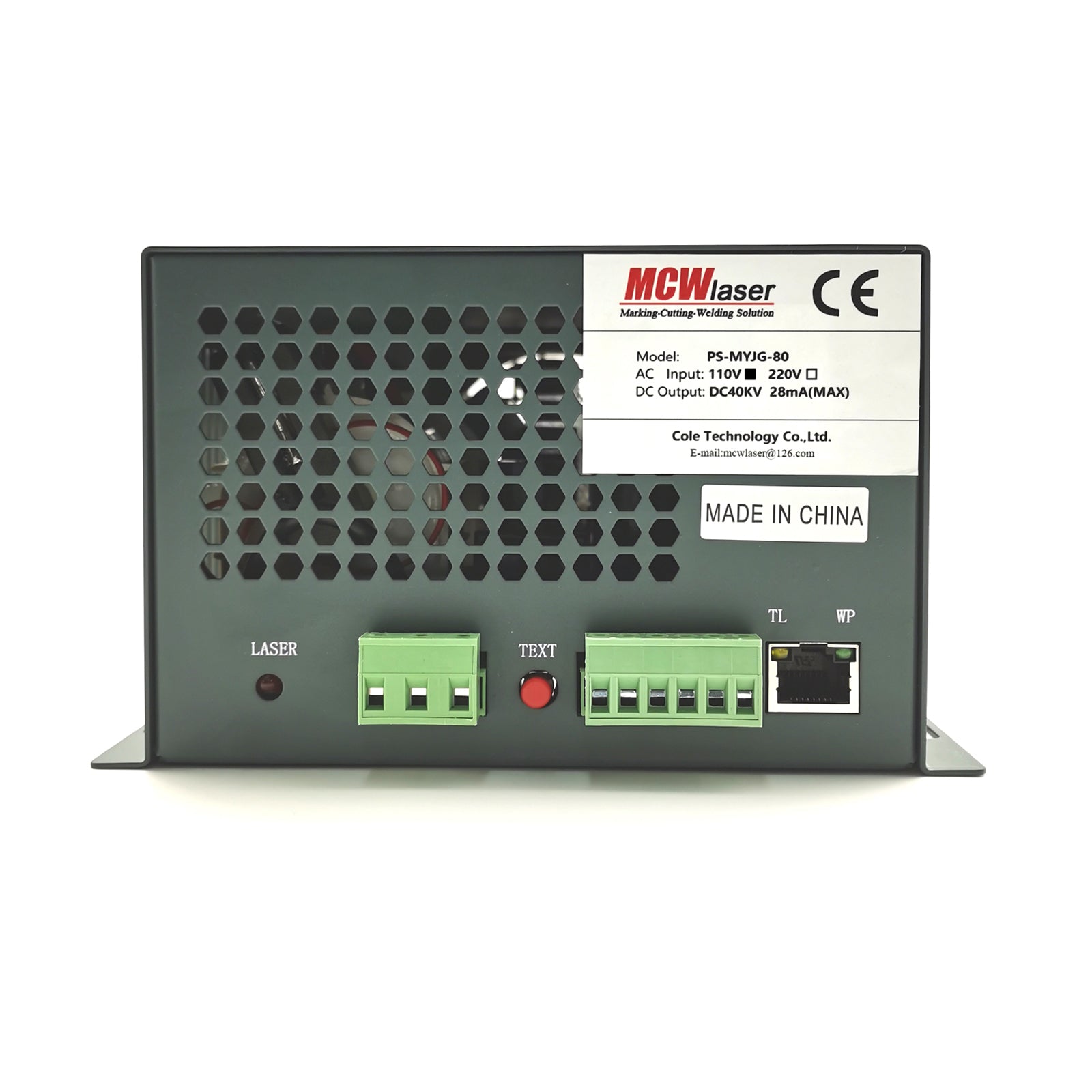

MYJG80 CO2 Laser Power Supply Including LED Display For 80W CO2 Laser Tube

$171.00 $161.00 Save 6%
Model: MYJG80 110V
Shop From: EU

Feature

  1. The Universal Model is compatible with MCWlaser 40W, 50W, 60W, and 80W CO2 laser tubes, as well as other brands with the same power output.

  2. The power supply is equipped with TTL signal and water through signal indications, as well as a laser output indication.

  3. The unit features output open circuit protection and a "TEST" button for manual laser output indication and testing.

  4. Enjoy peace of mind with our 12-month warranty.

Application

1. It was recommended for use with MCWlaser 40W 50W 60W 80W laser tube.
2. It can also replace or work with the other brand 40W 50W 60W 80W Co2 laser tube well.

Parameter


Model

MYJG50

MYJG80

MYJG100

Input

AC Voltage

110V /220V

110V / 220V

110V / 220V

AC Frequency

47~440Hz

47~440Hz

47~440Hz

Output

Max DC Voltage

25KV

26KV

28KV

Max DC Current

25mA

28mA

30mA

Voltage Range

High Level

≥3V

Low Level

≤0.7V

Efficiency

90%(full load condition)

MTBF

≥30,000 hours

Response Speed

≤1ms (The time from when the switch signal is launched to when the output current rises to 90% of the set current)

Operating Temperature

-35°~ +65°

Cooling Method

Fan Cooling(option)

High Temperature Test

Full Load,60"C, 12 hours

Start /Stop Test

500 times 7 seconds

Tips

External Ammeter

Network port for external LCD current Show information status and regulate current.
