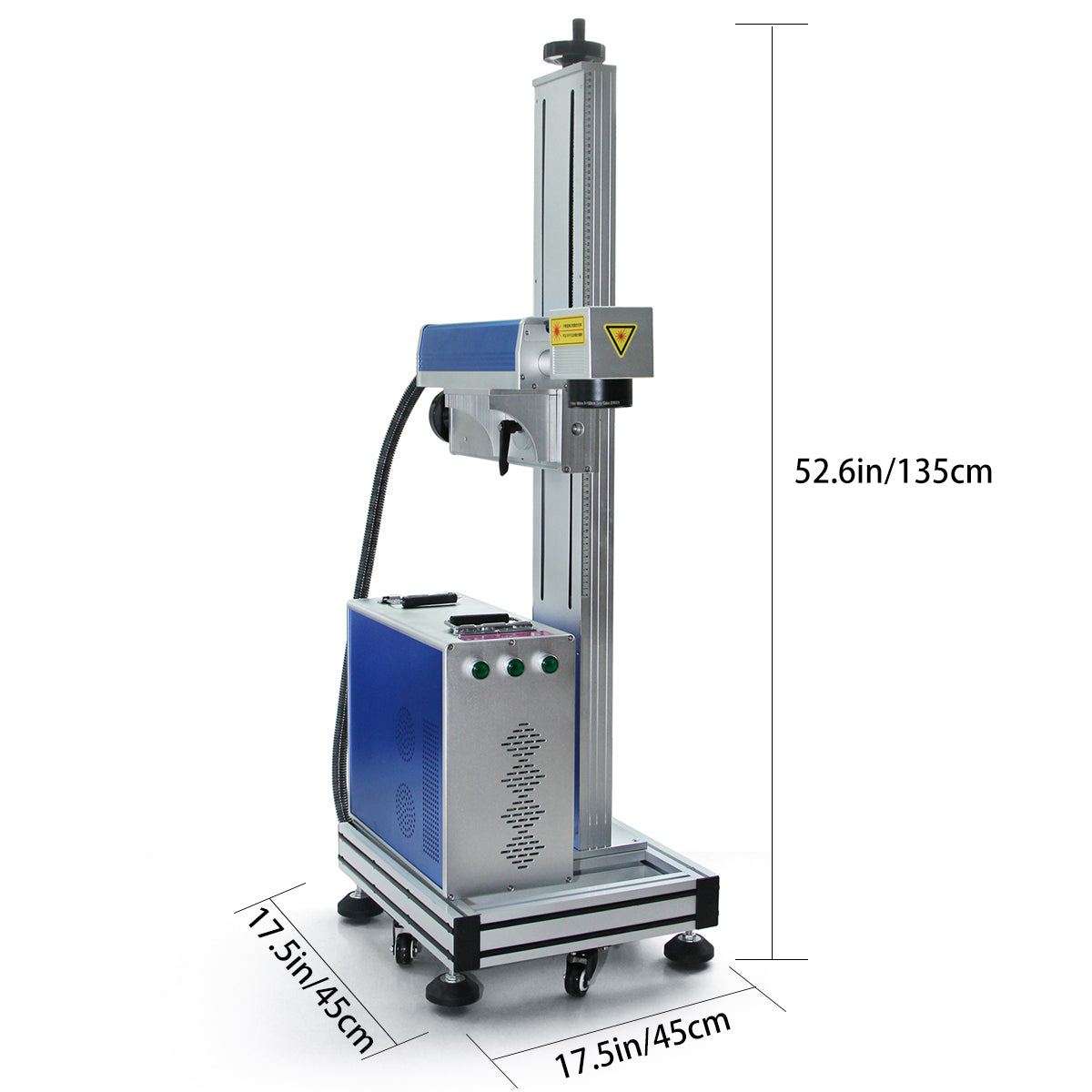

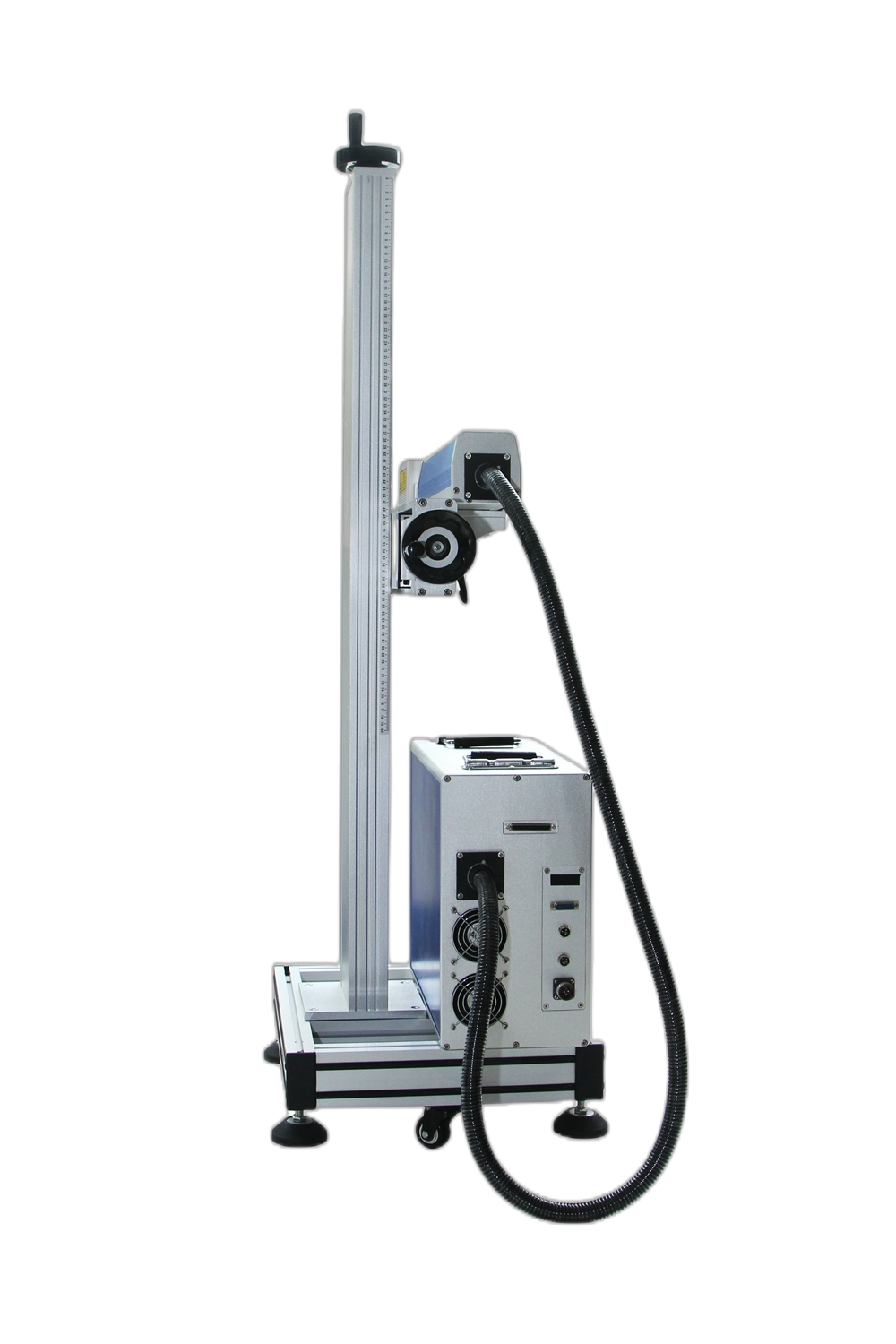

MCWlaser 20W/30W/50W Raycus Stand Type Fiber Laser Engraver Marking Machine With 8.7” X 8.7“ Working Area

MCWlaser 20W/30W/50W Raycus Stand Type Fiber Laser Engraver Marking Machine With 8.7” X 8.7“ Working Area

FLM-ZL-21R

$4,883.00 USD
$5,083.00 USD $4,883.00 USD
Sale Sold out
Power
SHIPPING FROM
  • MCWlaser Official Quality Inspection (100% brand new original authentic).
  • Secure payments; Lifetime Tech Support (Specialists).
  • Support Shipping Worldwide, US and EU stock.
  • Good customer service. Please contact us at info@mcwlaser.com.
View full details

The MCWlaser 20W/30W/50W Raycus Stand Type Fiber Laser Engraver can make dot matrices or scribbling laser encoding with high quality on fast-moving products and meet the demands of all kinds of production lines. This machine can mark letters, numbers, Chinese characters, icons, symbols, one-dimensional bar codes, two-dimensional bar codes, dates & times, serial numbers, random numbers, and other texts.

Features



【Raycus Laser Source】
The Raycus fiber laser source provides high-quality optical design, high rate of electrical-optical conversion, and higher efficiency and has a long service life of over 100,000 hours. It can achieve extremely precise and detailed engraving. Marking speed up to 7m/s.Free replacement within 2 years.

【JCZ Control Board】
The JCZ control board is designed to control the laser beam and provide precise and
accurate marking on various materials. including a high-speed digital signal processing system and a real-time monitoring system.

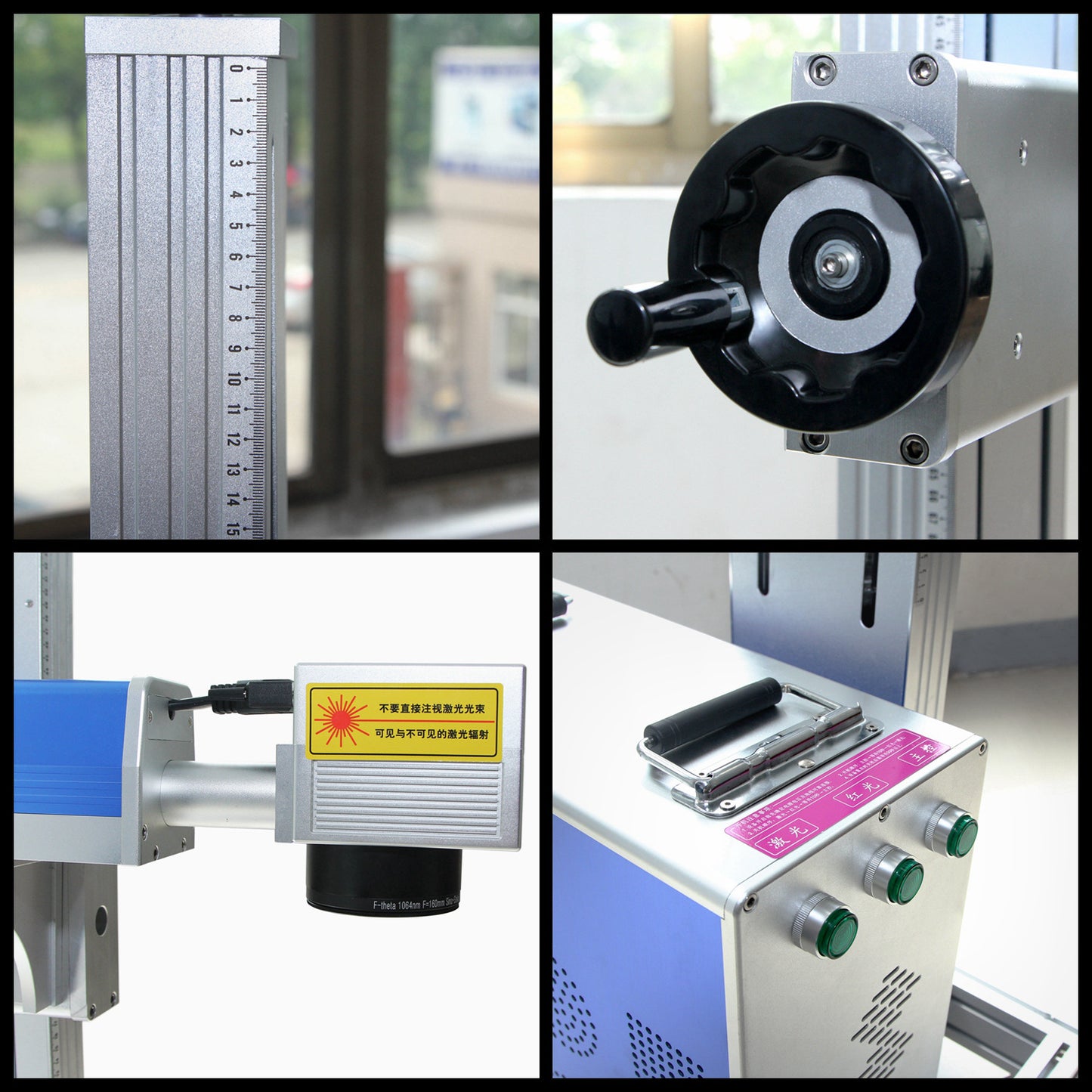

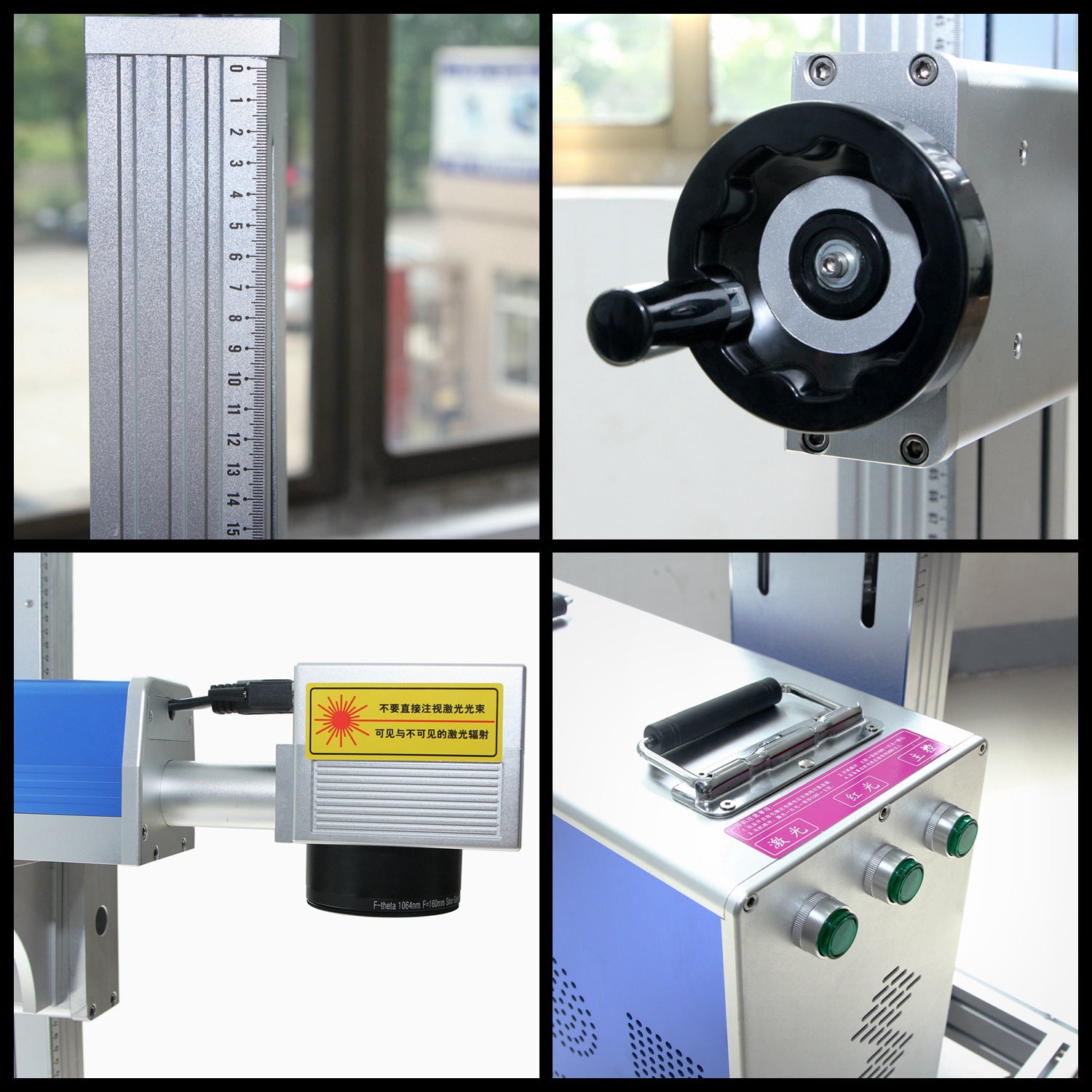

【Standby Column】
With a ruler, wheels, and lighting handle, easy to move and adjust the focal length.

【Reliable Galvanometer】
The high-speed galvanometer scanning head greatly reduces the delay .Outstanding stability and fast speed up to 7m/s (275.6in/s)
Good running stability, high positioning accuracy, fast marking speed, and strong anti-interference ability.



【Stable F-theta Lens】
F-theta lenses offer a consistent focus across the entire scanning area, ensuring uniformity in laser processing.
The flat field of focus allows for faster scanning speeds. Does not require complex adjustments as it moves across the work surface.
An industry-standard M85 threading on all F-theta lenses allows for easy mounting and simple retrofitting of OEM systems.

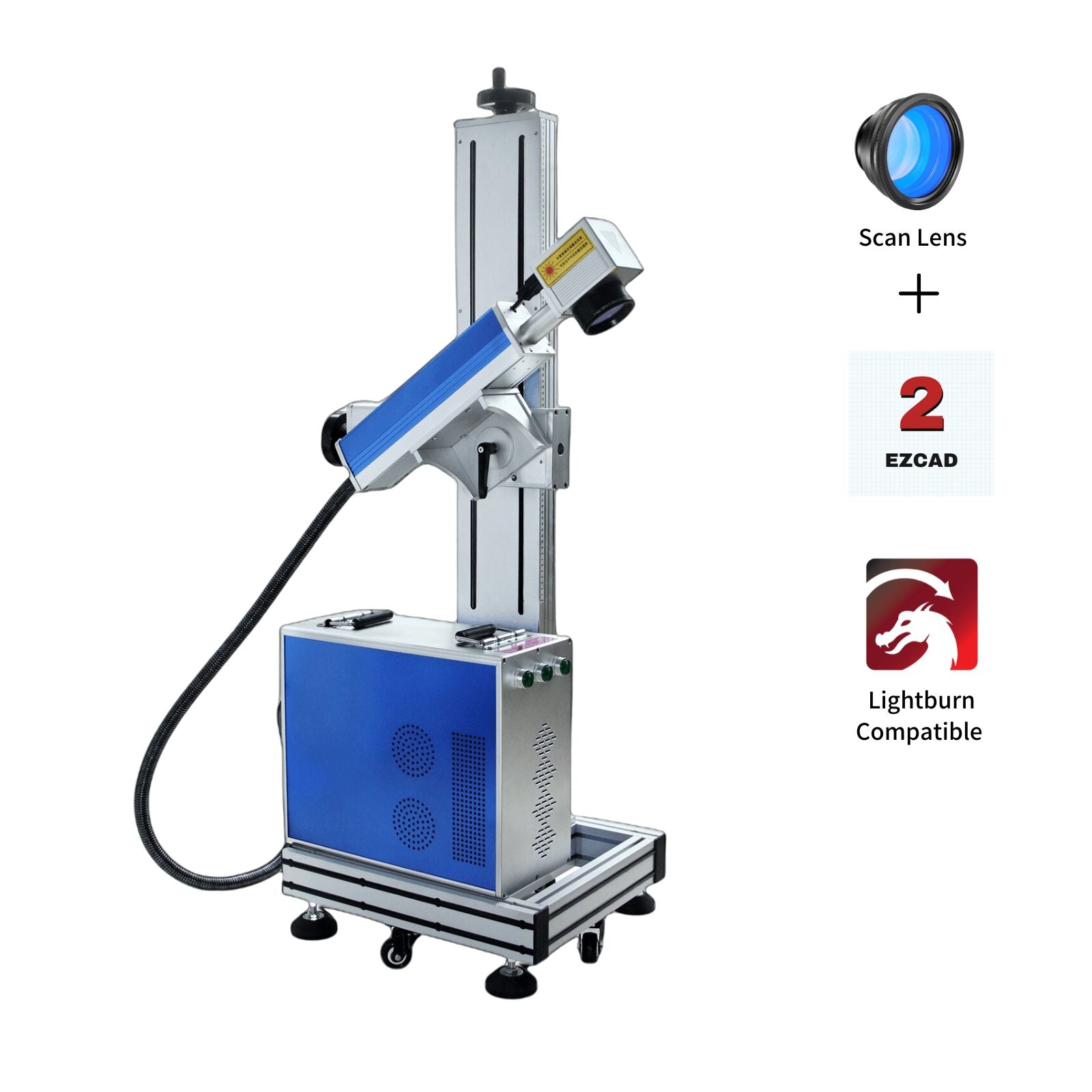

【EZCAD2.0 Software】
The newest upgraded EZCAD2.0.Compatible with Lightburn.Win7/8/10/11/XP Compatible; Coreldraw, AutoCAD, Photoshop-compatible.Supports PLT, PCX, DXF, BMP, etc. Multi-language interface, such as English, Spanish, German, French, Italian, Japanese, etc.; Easy to use.

Technische Parameter

POWER 20W/30W/50W/70W/100W
Wavelength 1064nm
Beam Quality M2<1.3
Output Power 10%-100%(continuously to be adjusted)
Output Frequency 20KHz-100KHz(continuously to be adjusted)
Power Stability(8h) <±1%rms
Focus Spot Diameter <0.01mm
Engraving Speed 800 standard characters/second
Minimum Line Width 0.012mm
Minimum Character 0.1mm
Repeated Accuracy ±0.003mm
Cooling Mode Air Cooling
Environment Temperature 10ºC~35ºC
Environment Humidity 20%-80%
Power Requirement 220V/50Hz/or 110/60Hz
Life of Laser Module 100000Hrs

Application

Marking on FMCG packaging goods and other sectors such as :
Beverages
Packing films
Breweries & Distilleries
Pharmaceutical & Medical Devices
Cable and wire
Cosmetics
Dairy
Tobacco
Automobile
Electrical & Electronics
Holograms
Labels

Certificate

The CE and FDA

Contact form

Customer Reviews

Based on 7 reviews
100%
(7)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
j
john doyle

We are incredibly pleased with this purchase. The units we already have in use from Germany & US do not compare to the function of this unit. Seller has a loyal customer with us. We hope the machine maintains its perfect performance as we hope to acquire more equipment from this excellent seller.

H
Hamed

Very good laser machine for what I need to do! I just wish I had bought it before. Very easy to assemble, except for one part where the instructions were not clear enough I had to go online to be sure. Otherwise good value for money. I recommend

p
philip oh

I used the software it came with, which worked fine, but the user interface was not terribly intuitive so upgraded to Lightburn for Galvo which works great. The youtuber Laser Everything has good tutorials on how to set that up. I was pleased at how quickly it arrived and well packaged it was. Setup was literally throwing maybe 4 bolts in to mount the head. Came with tools and the software and settings are on the included usb stick. The listing didn't specify, but my unit came with the red alignment lasers as well as a port for an optional 4th axis. Feature per dollar, this is by far the best unit on amazon at the moment. Laser source is genuine Raycus and the theta lens is 200mmx200mx290FL. The lens thread is compatible with the ones from cloudray, so I picked up a 110mm f-theta lens (ASIN B07BS61JMV) on black friday (when those guys run crazy sales) and that worked out of box (you do have to update the scan area in the software). I paid this off by the end of the first week of work on it. Came with laser safety glasses, but I recommend one with a higher OD if you're planning on daily driving it.

A
Apostol

Works well and has plenty of power to engrave stainless steel, mild steel, aluminum and more. I have not yet set up the rotary device as I am still learning Lightburn and all it does with this very nice laser. So far I have done stainless steel, mild steel, painted s

S
Seon Do

There are many things you can do with this laser. I purchased it with the intent of using it for deep engraving on firearms, which I have done, and I have been testing it out on various materials. It arrived setup together, in a wooden box, but along with it came a USB drive that has the EZCad2 program for usage along with the presets done for you already (alignment, focus, any adjustments for distortion, etc.) not for specific materials. They do have more information on their main website but just having the initial setup stuff done was a great help. I plan on purchasing another, sooner than later.
