Parameters: 1500W Laser source(continuous fiber laser), 1064nm wavelength, welding thickness less than or equal to 2mm, welding speed 0 - 120mm/s, 6m or 10(customizable) cable length, air cooling.
Powerful Laser Welding: Capable of welding a variety of metals, including stainless steel aluminum titanium copper brass nickel and more. A powerful tool that can be used to weld a variety of metal parts in a variety of applications.
Fast and Firm Welding: 3-5 times faster than other welding methods. Focused laser beam concentrated in a small area welds materials quickly and precisely.
Versatile: Fiber laser welder is often used in applications where high quality welds are required, such as in the automotive, aerospace, and manufacturing industries. Powerful tool for DIY and business use.
MCWlaser Service: 1-year warranty for the whole machine, 2-yeas warranty for the laser source. No Import Duty and Other Costs for US Customers. Lifetime online and remote support.
Advantages
High precision: The laser beam can be focused very precisely, which allows for high-quality welds with narrow weld beads.
Fast welding speeds: Fiber lasers can weld at very high speeds, which can improve productivity.
Low heat input: The laser beam has a low heat input, which minimizes the distortion of the metal being welded.
Versatility: Fiber laser welding can be used to weld a wide variety of metals, including steel, aluminum, and titanium.
Products Details
Laser Welding Gun
- Pure copper welding nozzle
- Hand-held welding head is light and flexible, which can realize welding of any part of the workpiece
- Not easy to fatigue after a long working time

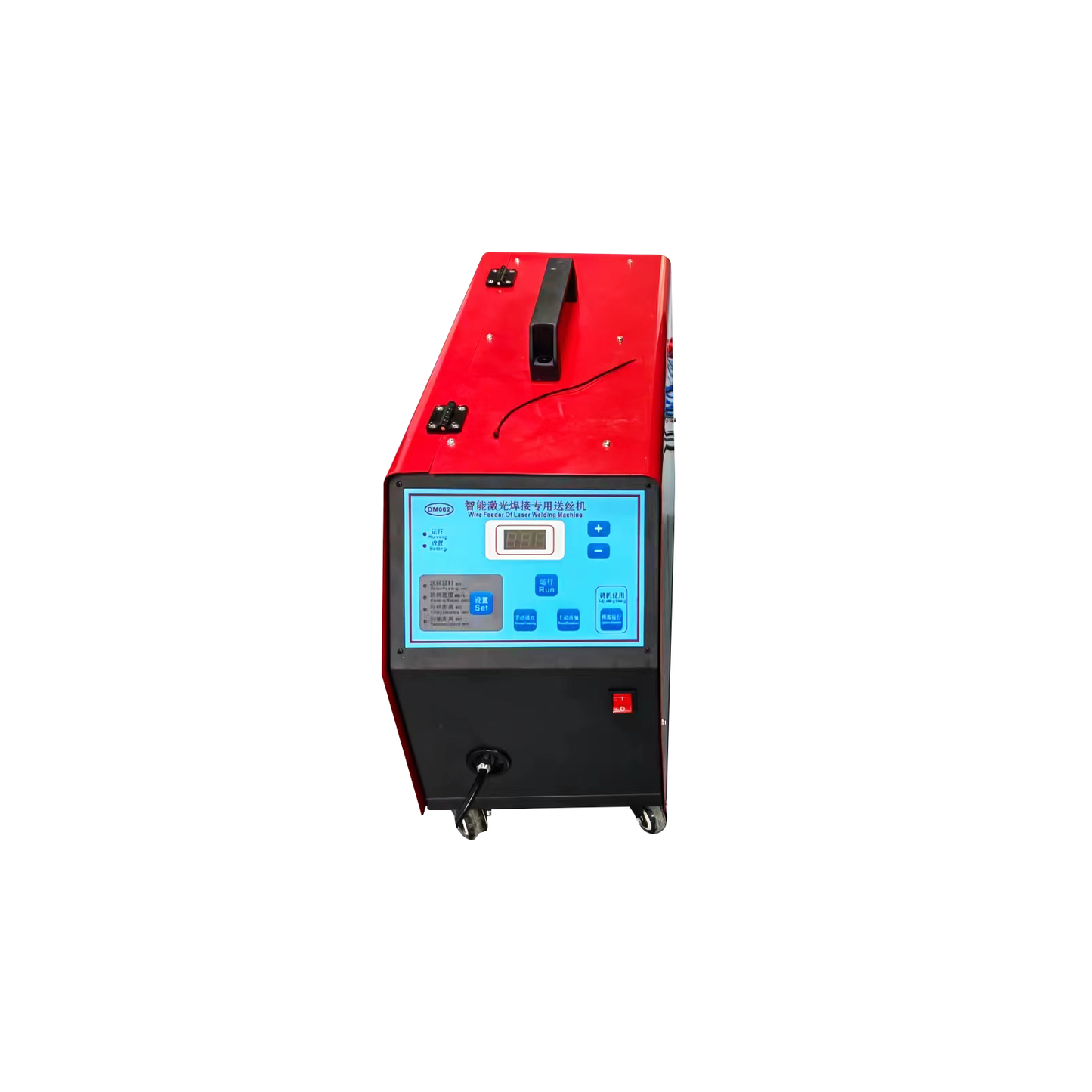

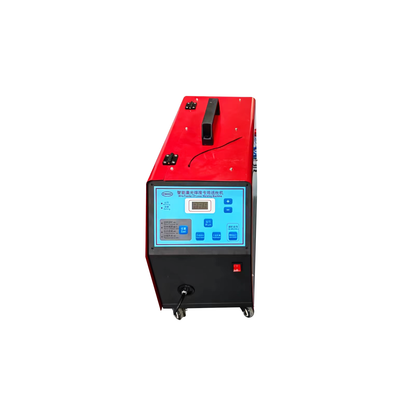

Wire Feeder
- Laser welding wire feeding system
- The wire feed speed can be easily adjusted on the display according to actual needs.
- You can turn off the feeder function when you do not need it
Technical Parameter
| Model | FWM-LX-1000H | FWM-LX-1500H |
| Laser power | 1000W | 1500W |
| Working mode | Continuous or modulate | |
| Laser wavelength | 1064NM | |
| Beam quality | M2<1.1 | M2<1.2 |
| AC110v or VAC220V±5% | ||
| Power supply | 50/60Hz 10A | 50/60Hz 16A |
| Power | ≤2300W | ≤3600W |
| Cooling system | Air cooling | |
| Fiber length | 6M; 10M | |
| Fiber length | Customizable | |
| Temperature range of working environment | 5~38 ℃ | |
| Welding thickness range | Max 2mm | Max 4mm |
| Applicable materials | Carbon steel、stainless steel、galvanized sheet, etc | |
| Weld requirements | <0.2mm | |
| Welding speed | 0~120 mm/s | |
| Size of machine | 650x330x600mm |
|
| Size of wire feeder | 560×250×350mm | |
Application Industries
Automotive: Fiber laser welding is used to weld car bodies, bumpers, and other components.
Aerospace: Fiber laser welding is used to weld aircraft parts, such as wings and fuselages.
Medical: Fiber laser welding is used to weld medical devices, such as stents and implants.
Electronics: Fiber laser welding is used to weld electronic components, such as circuit boards and connectors.
Packing List
