MC-WR Sereis MCWlaser 300W 500W Hand-held laser descaling machine for metal paint coating moulds and dies

$16,199.00
Power: 200W
  • MCWlaser Official Quality Inspection (100% brand new original authentic).
  • Secure payments; Lifetime Tech Support (Specialists).
  • Support Shipping Worldwide, US and EU stock.
  • Good customer service. Please contact us at info@mcwlaser.com.
Power: 200W

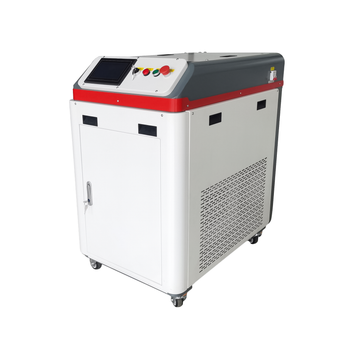

The equipment adopts a wheeled cabinet structure, making it easy to move. The upper part of the cabinet has a unique storage box design, which is convenient for storing cleaning heads, cables, and various accessories. The air-cooled structure makes the equipment easy to use and easy to maintain. The cleaning system provides 8 scanning modes (customizable) and supports 9 languages (customizable). The cleaning head is compact and lightweight, with a weight of<1.2kg. Support Modbus communication protocol for easy automation control. Single mode pulse laser beam has good quality, high peak power, controllable cleaning accuracy, and wide applicability. It can be used for cleaning surface rust, oxides, coatings, and other attachments of metal materials (steel, aluminum, copper, etc.).

Main Parameter

Laser power:200W/300W
Laser type: single mode pulse
Cooling method: Air cooling
Frequency Range: 1-1000kHz
Pulse Width: 10-500ns
Maximum monopulse energy: 1.5~2mJ
Scan mode: 8 scan modes
System language: switch between 8 languages (customizable)
Adjustable Scanning Range: 0-145mm, continuous adjustable, two-axis support 8 scanning modes
Overall dimensions (length, width and height) : About 336mm*756mm*774mm
Anti-Reflection Protection:Yes
Machine weight: About 170KG
Cleaning head weight: < 1.25Kg

Product Advantages


1. Widely used, suitable for various industrial processing scenarios
2, small laser cleaning head, light and easy to take, can work for a long time
3, trolley design, easy to move, electricity can run
4, non-contact cleaning, no consumables, no damage, no pollution
5, non-contact cleaning, no damage to the parts matrix, 360 degrees no dead Angle, precise cleaning without consumables

Parameter

Operating environment
Content 200/300W
Power supply voltage Single-phase 220V±10%, 50/60Hz AC
Whole unit power consumption 200W ≤1500W
300W ≤2000W
Operating environment temperature 5°C to 40°C
Humidity of working environment ≤80%
Optical Parameters
Content Parameter
Power No Stability <5%
Laser working mode Pulse
Pulse width 10-500ns adjustable
Maximum single pulse energy 1.5~2mJ
Power regulation range (%) 0-100 (Gradient adjustable)
Frequency adjustment range (KHz) 1-1000(Gradient adjustable)
 Fiber Length 5m/10m optional
Cooling method Air Cold
Cleaning Head Parameter
Scanning range(LENGTH*W) 200W 0-145mm, continuous adjustable, two-axis support 8 scanning modes
300W 0-145mm, continuous adjustable, two-axis support 8 scanning modes
Scan Frequency Maximum not less than 300Hz
Field mirror focal length(Mm) 200W 210mm (optional160Mm/254Mm/330Mm/420Mm)
300W 210mm (optional160Mm/254Mm/330Mm/420Mm)
Depth of focus About 5Mm
Mechanical Parameters
Content Parameter
Machine size (Length, width and height) About 336mm*756mm*774mm
Whole unit weight About 170KG
After packagingWeight About 195KG
Cleaning head weight <1.25Kg


Machine Size

Product structure

( 1 ) Structure of Cleaning Head

( 2 ) Overall Dimension




(3)Set interface

Language switch: Set the system language mode, currently supports 9 kinds including Chinese, Traditional Chinese, English, Russian, Japanese, Spanish, German, Korean, French, etc.;

(4)Operation interface:

The operation interface provides 8 cleaning modes, which can be switched by clicking the scanning mode option on the interface ( circular switching): Linear Mode, Rectangular 1 Mode, Rectangular 2 Mode, Circular Mode, Sine Mode, Helix Mode, Free Mode and Ring.

The database number can be selected on the operation interface of each mode,14 and the laser cleaning parameters can be displayed and set, including: laser power,   laser frequency, pulse width (valid for pulsed laser) or duty cycle (valid for continuous laser), scanning mode, scanning speed , the number of scans and the scan range (width, height).

Application

The Portable Handheld Pulse Laser Cleaning Machine is a tool designed for removing contaminants, rust, paint, and other unwanted materials from surfaces using laser technology. Offers higher precision and control over the depth of material removal. It is effective for selective cleaning applications where specific contaminants need to be removed without affecting the underlying substrate.

Its applications can be found in various industries. Some common applications include:
Metal Surface Cleaning(including Rust and Paint Removal),Industrial Maintenance,Historical Artifact Restoration,Automotive Industry,Aerospace Industry,Electronics Manufacturing, Construction Industry, Nuclear Industry, Shipbuilding and Maritime Applications,Oil and Gas Industry

GET IT TOUCH

You can contact our head-office directly,also you can contact our agent which is near you.Of course,free live-chat is available and you can get help immediately.


Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
L
Laura Barlow

This Laser Cleaning Machine Laser Cleaner is the best paint removal I have ever seen.

Before purchasing, we checked with the MCWlaser salesman about the suitability of the machine for my work. They have been very helpful in answering our questions.

Finally, I need to say that this machine can clean very cleanly AND efficiently. In the pictures and videos we are removing rust and paint from wooden boards.

B
BARRACK ODIRIN

Having just started my own laser ablation business, I do not have much room to work with. The 300W pulsed laser clening machine is a powerful laser, not only having the strength to deal with surface rusting, it can removal automotive paints as well. In the video section I am working on an removing paint on car , and the rust also is no problem. The effect is amazing. Everyone in need should try it!


Applications

Paint On Wall

Paint On Wooden Furniture

Graffiti On Wall

Paint On Marble

Weld Seam

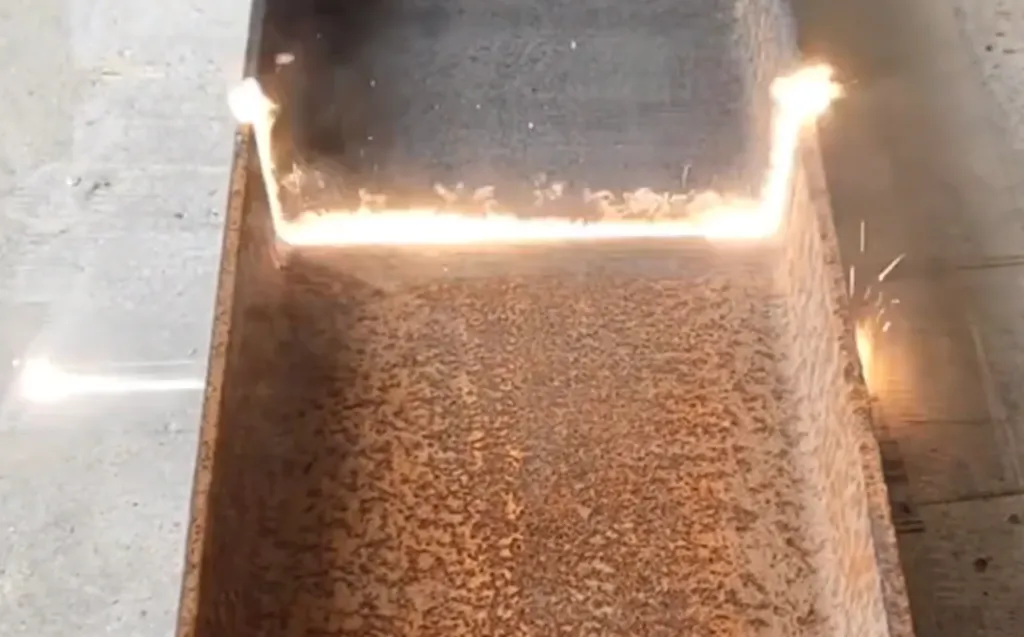

Rust On Metal Round Tub
