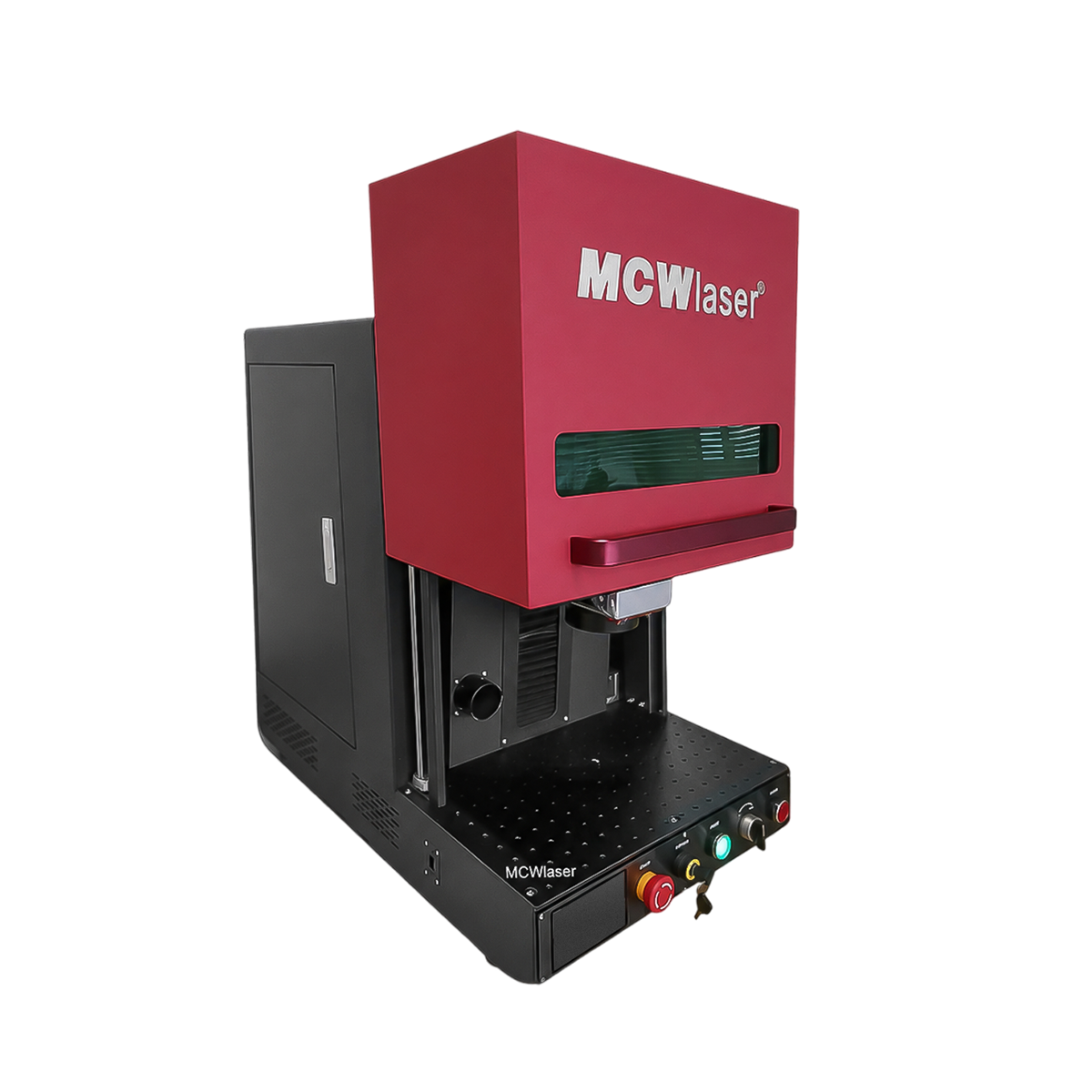

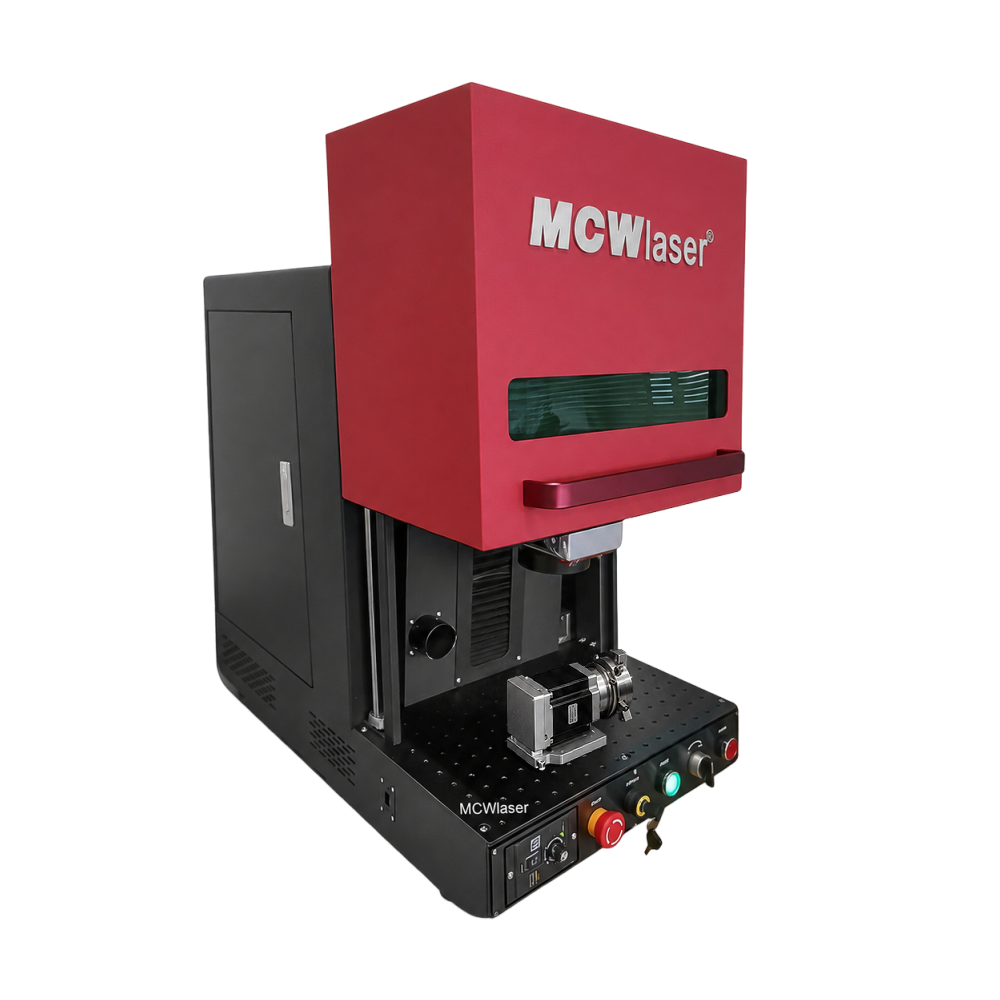

MCWlaser 30W/60W/80W/100W MOPA M7 Enclosed B Type Fiber Laser Engraver Marking Machine With 5.9” X 5.9“Working Area & D69 Rotary Axis
Main Parmeter
Laser Power: 30W/60W/80W/100W
Laser Source: JPT MOPAM7
Frequency: 1-4000kHz
Maximum Pulse Energy: 2.0mJ
Pulse Duration: 2-500ns
Lens: 150x150mm lens by default.
70x70mm/110x110mm/150x150mm/175x175mm/200x200mm/300x300mm optional
Wavelength: 1064nm
Rotary Axis: Three-jaw D69mm by default.
Marking Speed: 7000mm/s
Software: EZCad2, compatible with Lightburn;
Compatible System: Windows XP/Mista/Win7/Win8/Win10/Win11
Advantage
1. MOPA JPT M7 laser source has advanced beam quality
2. Reliable galvanometer marking speed up to 7m/s.
3. Latest upgraded EZCAD 2.0 Software (compatible with Lightburn).
4. Stable F-theta lens
5. Double red dot positioning can quickly find focus.
6. 2-year warranty.

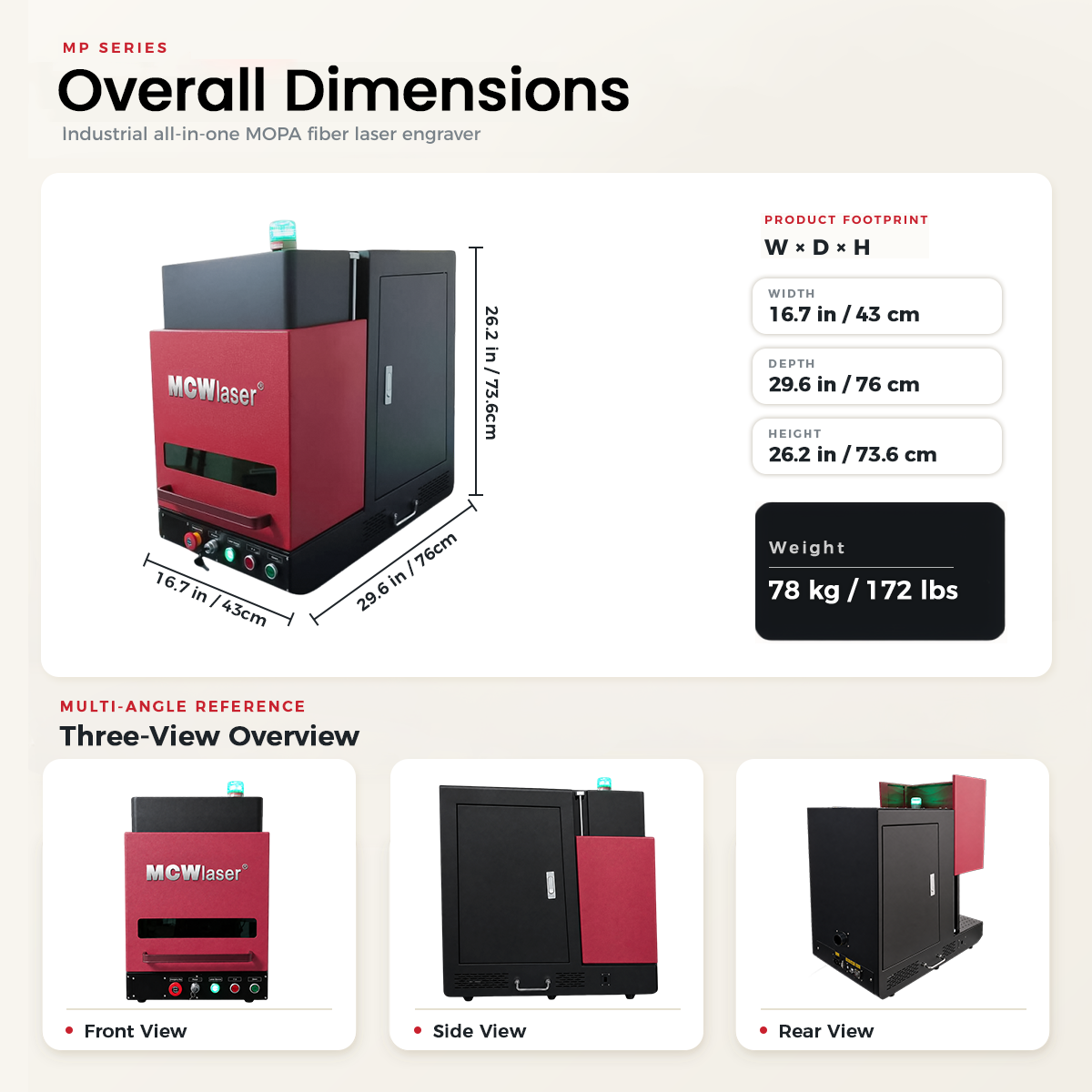

Size & Weight
Machine Size: 43x76x73.6cm/16.7x26.2x 29.6in(L×W×H)
Net Weight: 78Kg
Waranty
Worldwide Waranty 2 Years
Free replacement parts during warranty period
Certification
FDA Compliant
CE Certification

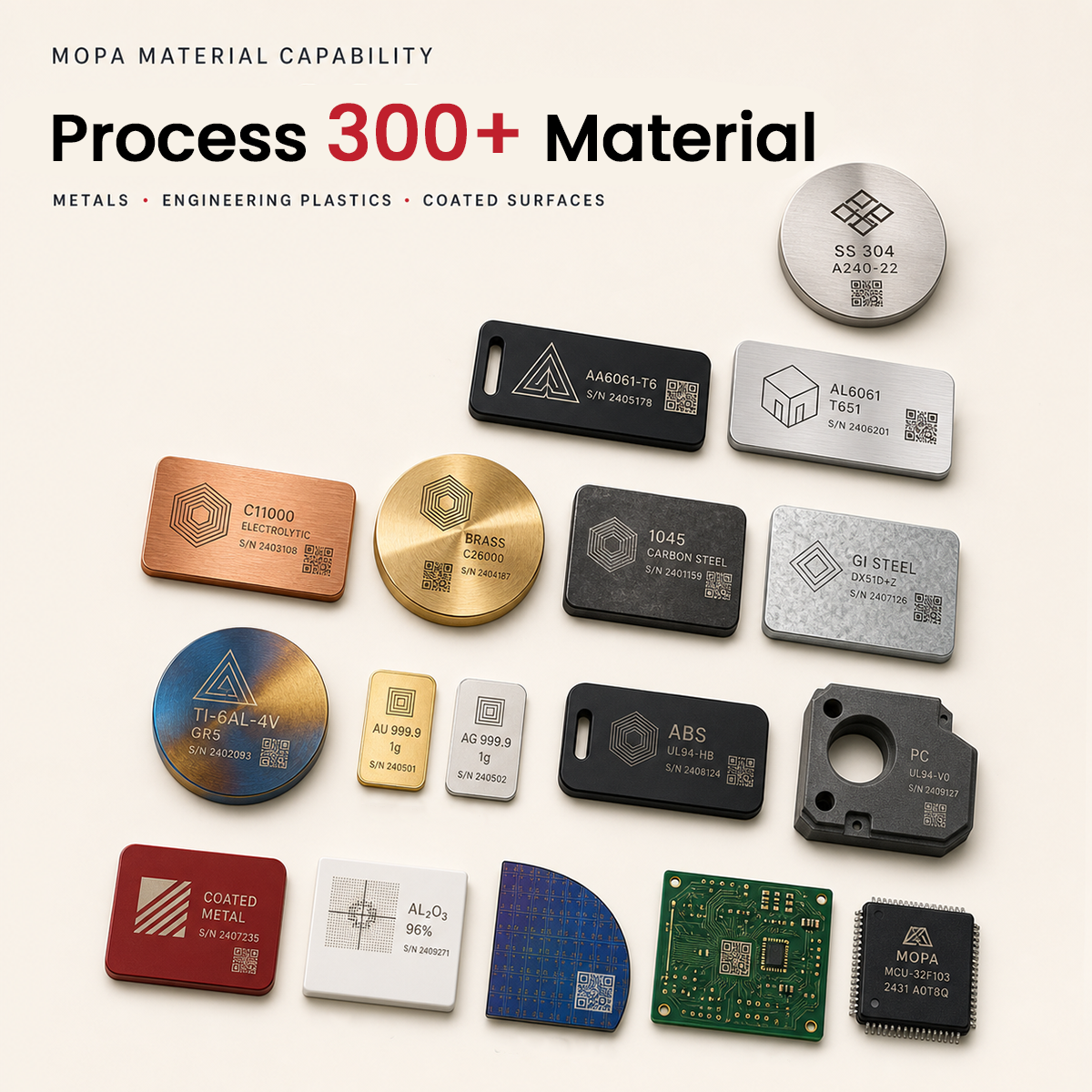

Application
It is mainly used in for the fine marking process of metal and non-metal materials, such as deep engraving, thin metal sheet cutting, anode stripping, coating striping semiconductor and electronics industries, plastic and other sensitive materials marking, and PVC plastic pipe industry. It is for especially stainless steel color making and aluminum oxide blackening.

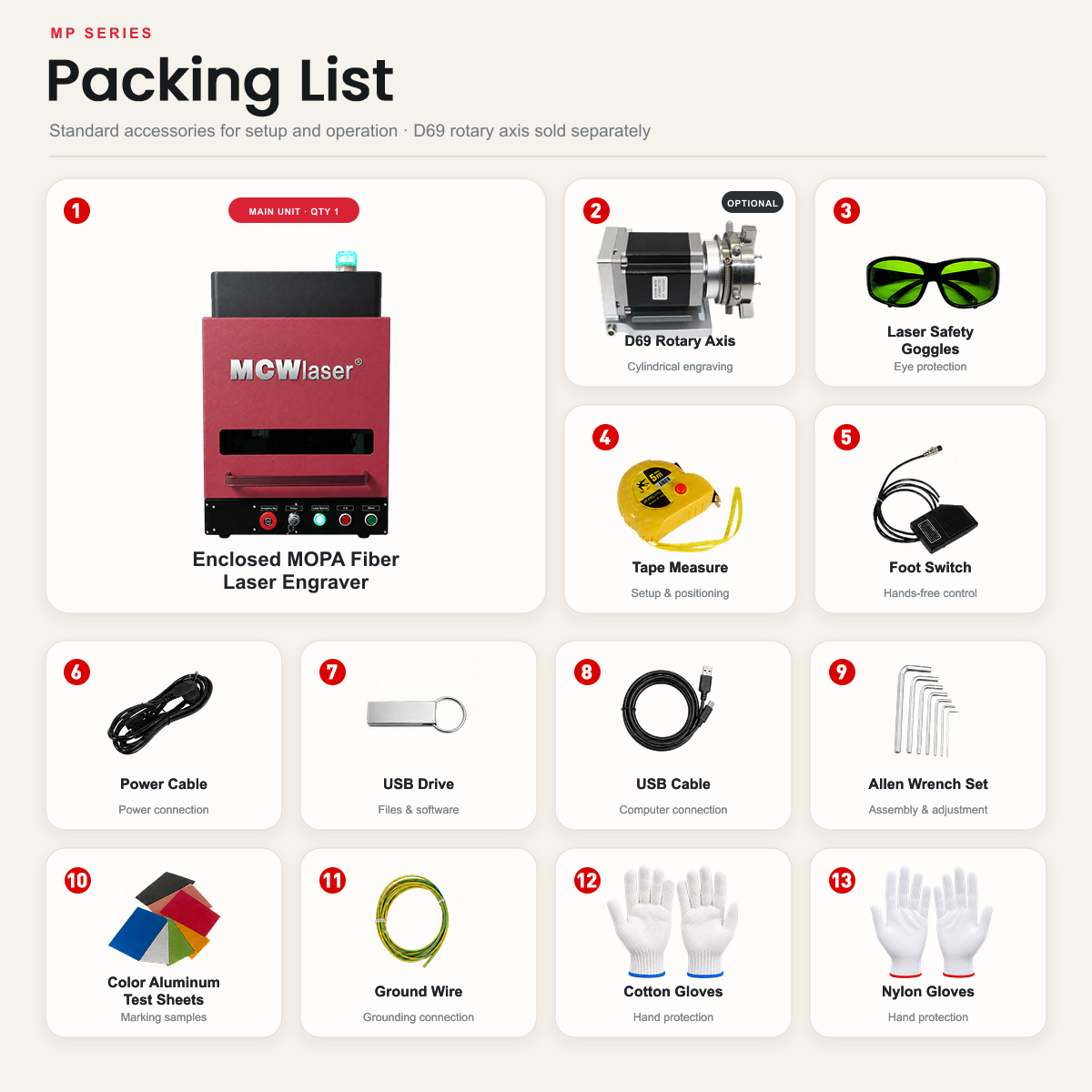

Package Include
1. Fiber Laser Marking Machine
2. Rotary Axis (D69 by default)
3. Laser Safety Goggles
4. Tape Measure
5. Foot Switch
6. Power Cable
7. USB Drive
8. USB Cable
9. Allen Wrench
10. Color Aluminum Sheet
11. Cable
12. Lens(Marking Area 150x150mm by default)
Manual Download
English Version: Download
MCWlaser 30W/60W/80W/100W MOPA M7 Enclosed B Type Fiber Laser Engraver Marking Machine With 5.9” X 5.9“Working Area & D69 Rotary Axis
The working frequency of MOPA JPT M7 laser source can reach 1-4000kHz, the pulse width is 2-500ns,wide adjustable range, wider application.
It adopts a high-speed photodiode for fast focusing and dual red light equipment, which can focus easily.
It is mainly used in for the fine marking process of metal and non-metal materials, such as stainless steel color making, aluminum oxide blackening, anode stripping, coating striping semiconductor and electronics industries, plastic and other sensitive materials marking, and PVC plastic pipe industry.
Certified by FDA and CE, enjoy a two-year warranty and free technical support service.
Parameter
Laser Power | 30W | 60W | 80W | 100W |
Marking Area | 200x200mm by default,70×70mm,110×110mm150×150mm175*175mm ,220x220mm,300x300mm,optional |
|||
Laser Type | MOPA JPT M7 | |||
Beam Quality | M2<1.4 | M2<1.5 | M2<1.5 | M2<1.4 |
Repetition Rate(frequency) | 1~4000kHz | |||
Pulse Duration | 1~250ns | 2~500ns | 2~500ns | 2~500ns |
Maximum pulse energy | 0.8mJ | 1.5mJ | 2mJ | 1.5mJ |
output Power Adjustment range | 1~100% | |||
output Power Stability | <5% | |||
Laser Wavelength | 1064nm | |||
spectral width@3dB | <15nm | |||
output Beam Diameter | 7±0.5mm | |||
Polarization Orientation | Random | |||
Marking Speed | ≤7ms(275.6in/s) | |||
control Board & Softwre | Genuine JCzBoard;EZCAD2.0(Standard) | |||
operating system | Compatible with Windows xPNMista/7/8/10/11 | |||
supported Graphics Formats | PIT,BRMP.JPG.GIF.TGA,PNG.TIF,AI,DXF.DST,ETC. | |||
Marking Interface | Compatible with Windous XP/Mista/7/8/10/11 | |||
communication for Automation | TCP1P,1O,RS232 | |||
operation temperature | 0~40℃ | |||
Cooling Method | Air cooling | |||
Electrical Requirements | 110V-240V/50Hz-60H |
Feature
【 JPT MOPA M7 Laser Source】
Repetition Rate (Frequency):1-4000kKHz.Pulse Duration: 2-500ns. With independently adjustable pulse frequency and width to offer great versatility applicable to a wide range of materials.
Excellent beam quality, excellent processing performance; Good choice for highly precise & fine marking; Stable Power Output and Higher Marking Speed; safer.
Long Service Life of 100,000 Hours; Free Replacement within 2 Years.
【JCZ Control Board】
The JCZ control board is designed to control the laser beam and provide precise and accurate marking on various materials.
The JCZ control board is equipped with advanced technology, including a high-speed digital signal processing system and a real-time monitoring system.
Suitable for Fiber Laser and MOPA Laser
【Double Red Dot Positioning System】
The red point positioning system can quickly find the focal length without any tools.Just look at whether the two red dots on the surface of the marked product coincide to accurately locate.
Correct Working Distance; Easy to work with.
【Reliable Galvanometer】
The high-speed galvanometer scanning head greatly reduces the delay .Outstanding stability and fast speed up to 7m/s (275.6in/s)
Good running stability, high positioning accuracy, fast marking speed, and strong anti-interference ability.
【Stable F-theta Lens】
F-theta lenses offer a consistent focus across the entire scanning area, ensuring uniformity in laser processing.
The flat field of focus allows for faster scanning speeds. Does not require complex adjustments as it moves across the work surface.
An industry-standard M85 threading on all F-theta lenses allows for easy mounting and simple retrofitting of OEM systems.
【EZCAD2.0 Software】
The newest upgraded EZCAD2.0.Compatible with Lightburn.Win7/8/10/11/XP Compatible; Coreldraw, AutoCAD, Photoshop-compatible.Supports PLT, PCX, DXF, BMP, etc. Multi-language interface, such as English, Spanish, German, French, Italian, Japanese, etc.; Easy to use.
