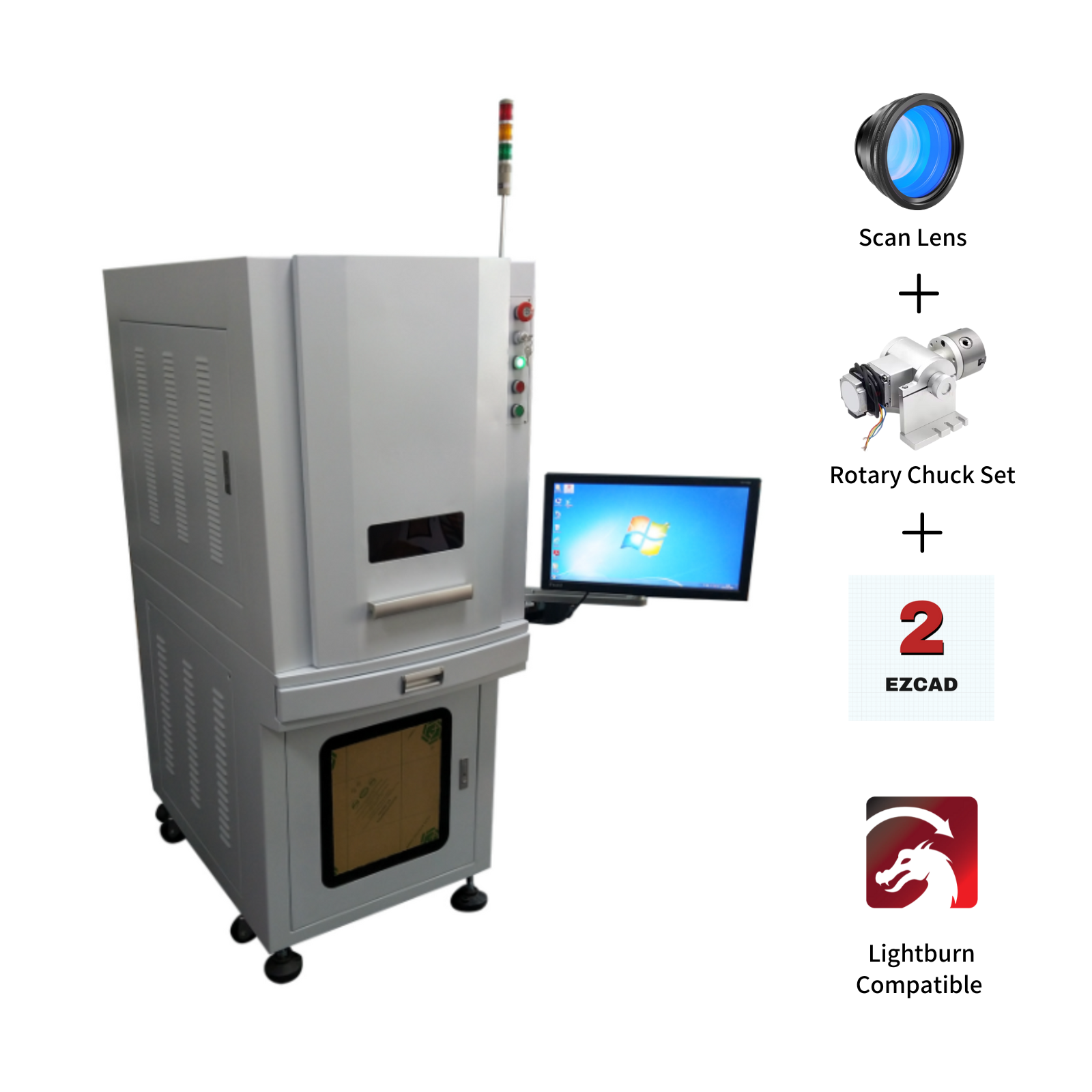

80W MOPA Laser Engraver Fiber Marking Machine Enclosed & Cabinet B Type

$8,899.00 $8,499.00 Save 4%
LASER POWER: 80W+110V
LENS (Marking Area): 70x70mm
ROTAYR AXIS: No Rotary Axis

Description

Introducing the MCWlaser MOPA JPT M7 Fiber Laser Making Machine - Your Ultimate Solution for Metal Engraving and Marking Needs!

  1. Effortless Operation: Experience easy and convenient usage with our user-friendly interface.
  2. Rapid and Accurate Focus: Benefit from the imported high-speed Galvanometer fast focus system, coupled with the double red light device for effortless and precise focusing.
  3. Versatile Applications: Mark and engrave various metal materials and select non-metal materials with exceptional precision.
  4. Certified Quality: FDA and CE certifications ensure the highest standards of quality and safety.
  5. Peace of Mind: Enjoy a worry-free experience with our 2-year warranty and lifetime free technical support.
  6. Convenient Delivery: Experience our seamless door-to-door service with free delivery to your desired location.

Features

Introducing the Enhanced Features of MCWlaser MOPA JPT M7 Fiber Laser Making Machine:

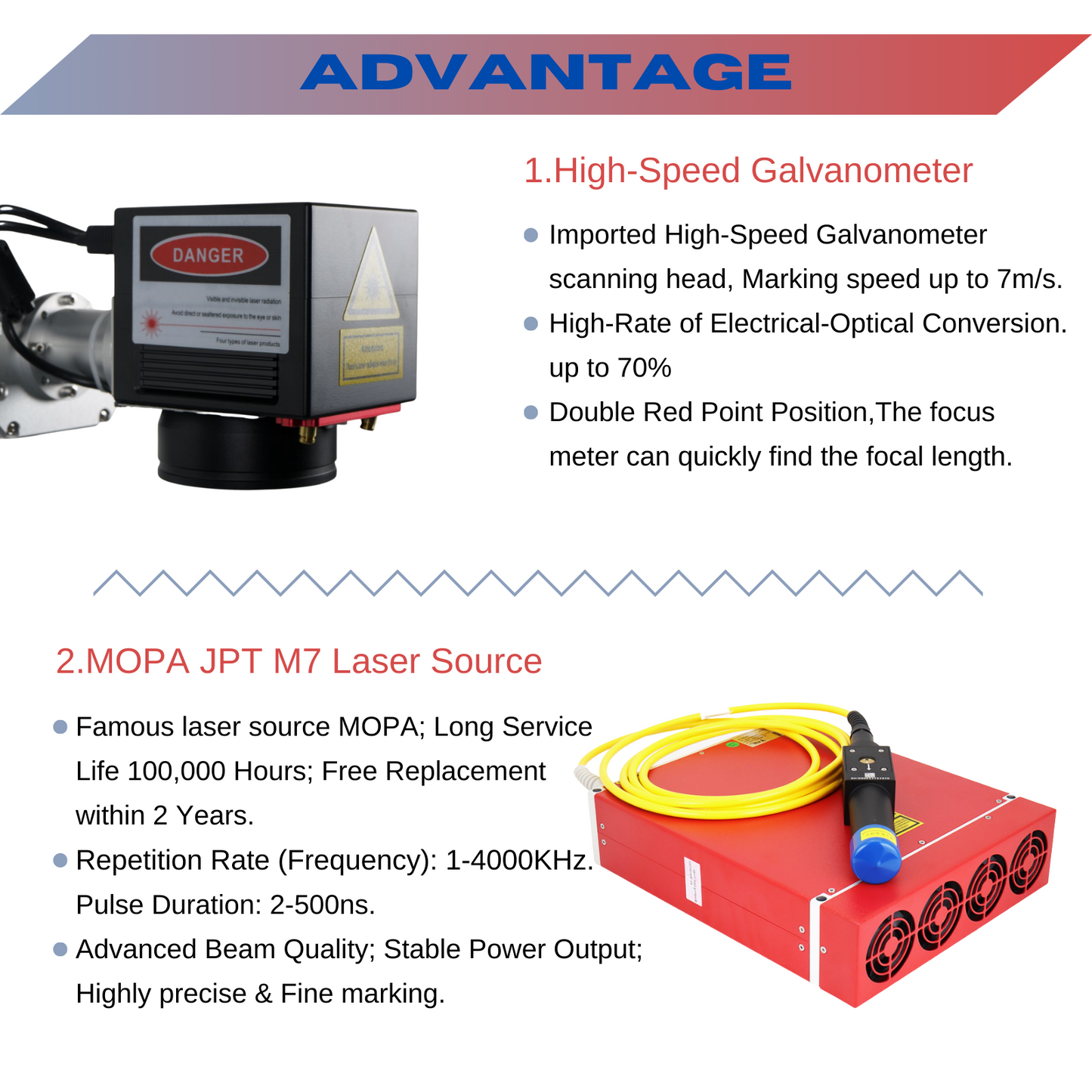

  1. Advanced Laser Source: The MOPA JPT M7 laser source ensures superior beam quality, stable power output, and higher marking speed. With a remarkable service life of 100,000 hours, it offers exceptional durability. Enjoy the added peace of mind with a free replacement within 2 years.

  2. Reliable Galvanometer: Our imported high-speed galvanometer scanning head enables marking speeds of up to 7m/s. Experience a high rate of electrical-optical conversion of up to 70%, ensuring precision, efficiency, and an extended lifespan.

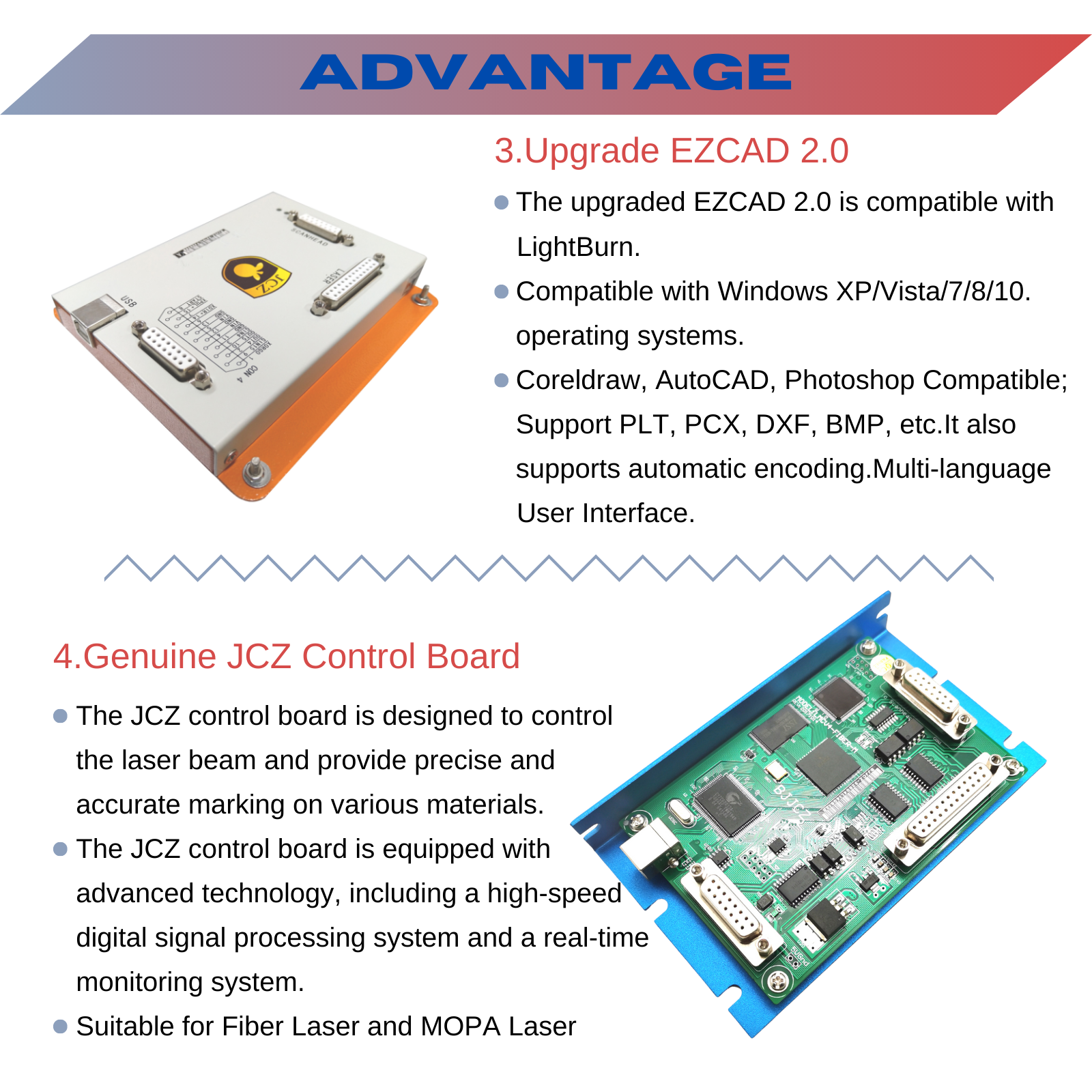

  3. Cutting-Edge Controller and Software: Equipped with the newest upgraded EZCAD 2.0 controller (compatible with Lightburn), our machine supports multiple languages and provides an intuitive operating experience. Compatible with Windows XP/Vista/7/8/10, it ensures seamless integration into your existing setup.

  4. Stable F-theta Lens: Benefit from energy uniformity and minimal attenuation with our stable F-theta lens. It offers a small focus spot, enabling deep edge marking. Choose from various working area options: 70×70mm, 110×110mm, 150×150mm, 175×175mm, 200×200mm, 220×220mm, and 300×300mm, to suit your specific requirements.

  5. Red Light Positioning: Our machine features a double red point position system, allowing the focus meter to quickly determine the focal length. Simply observe the surface of the product to be marked and ensure the two red dots overlap for precise positioning.

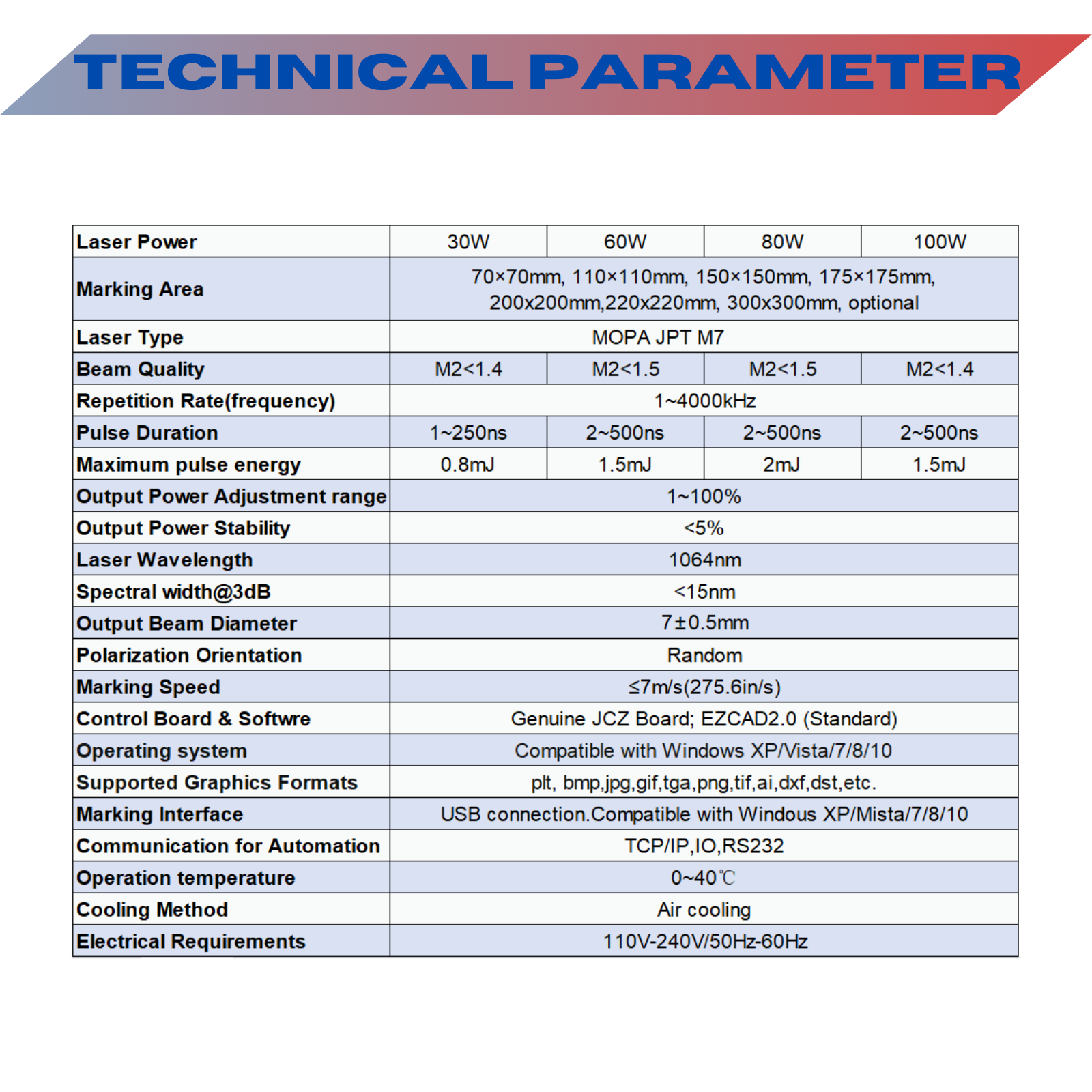

Technical parameters

Application

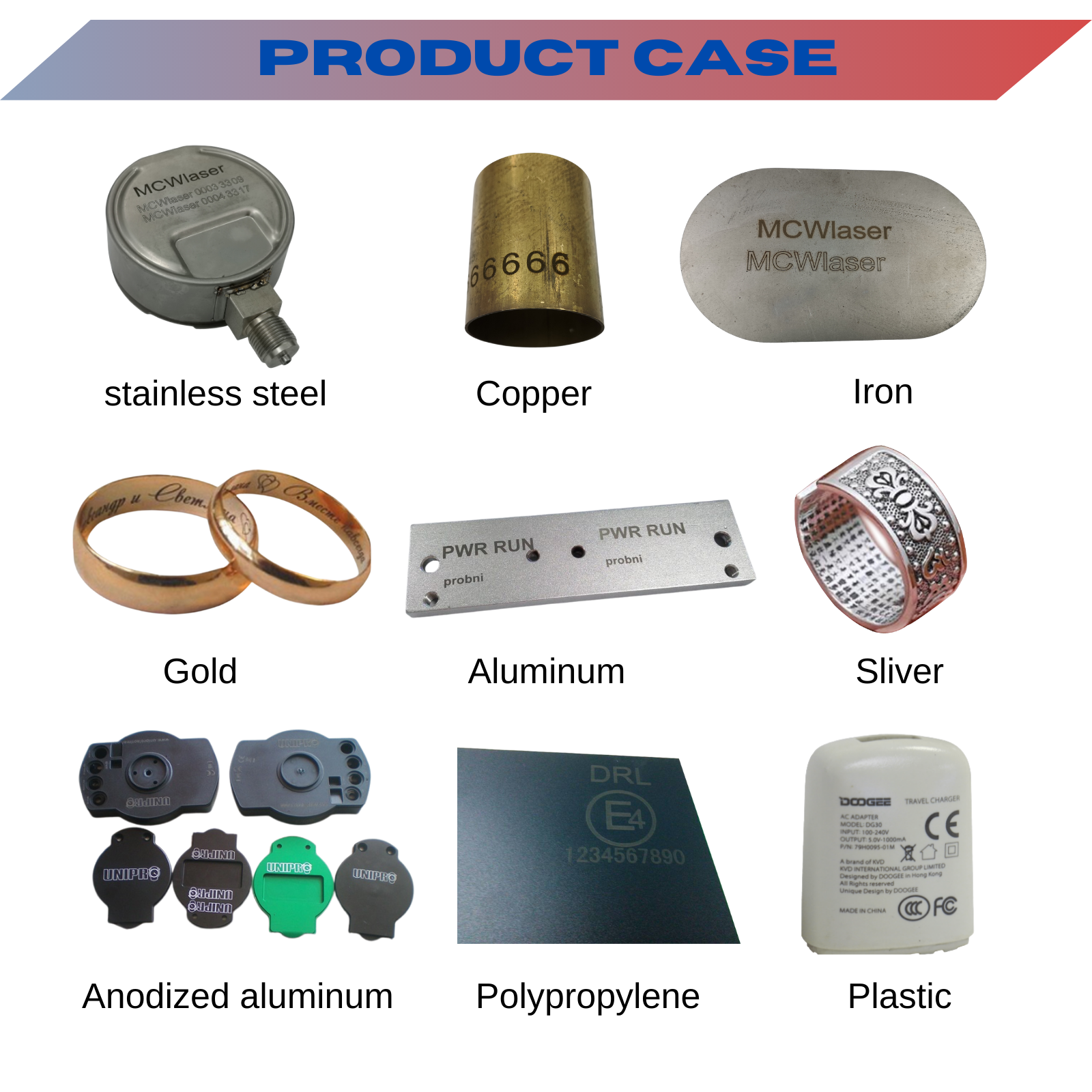

Applicable Material: Carbon Steel, Aluminum, Stainless Steel, Brass, Copper,Gold, Silver, etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES,Leather,etc. Not sure,contact with us.

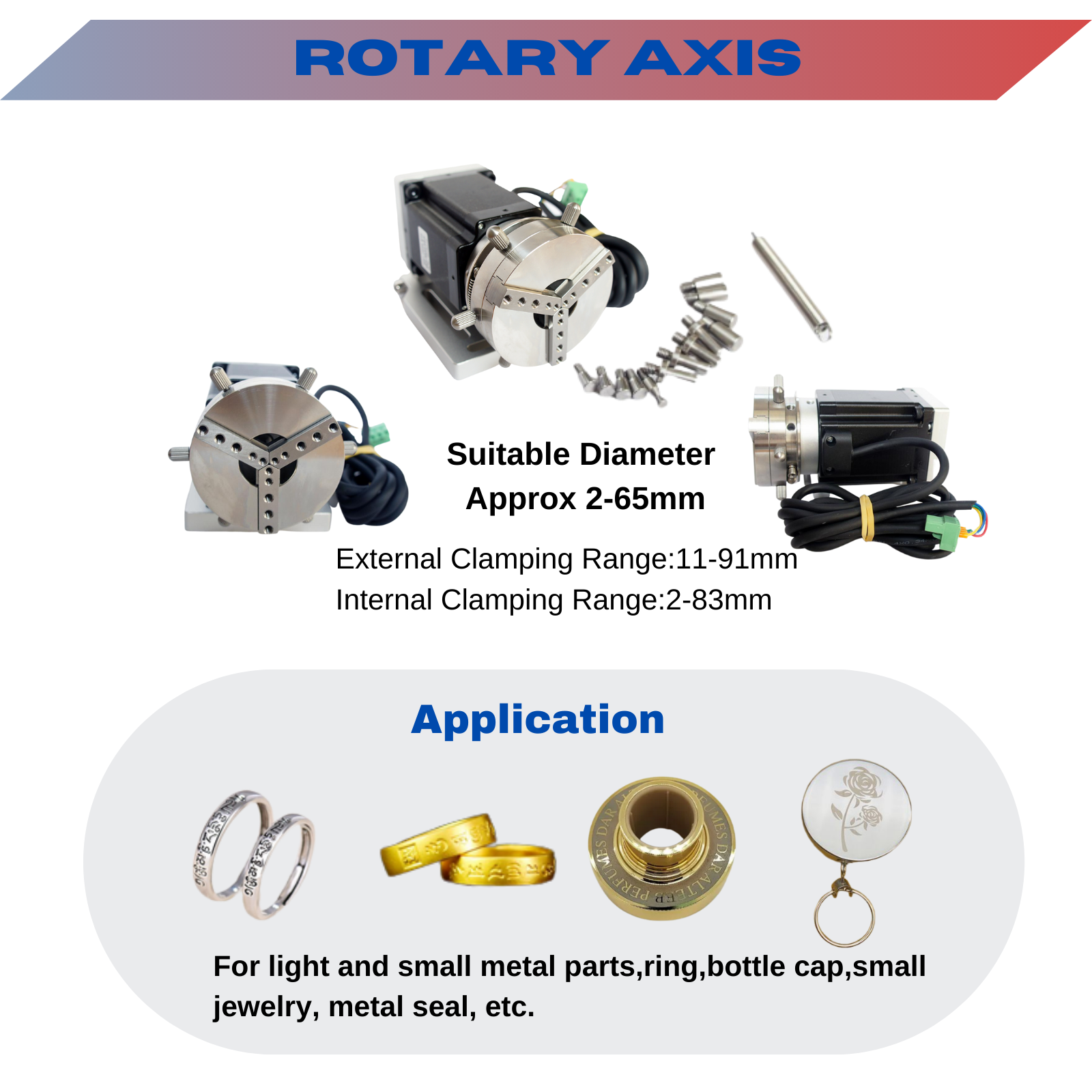

D69 Rotary axis

• 69mm (2.71in) Three-jaw.
• External Clamping Range:11-91mm.
• Internal Clamping Range:2-83mm.
• Axis Height:50mm(elevation angle 90 degree).
• Rotary Chuck Size (L×W×H):130×90×90mm
• Mounting Hole Size:50×50mm(M5 M6 Screws)
• Stainless steel material; Quick clamping. Synchronous wheel drive;Effectively eliminate jtter. Rotary spring clamping, fast mounting and dismounting to improve work efficiency.
• ​​​​Industrial standard interface,use aviation plug fits various board card.
• Be mainly for Small Jewelry and Hardware, such as rings, pen,bottle cap,etc.

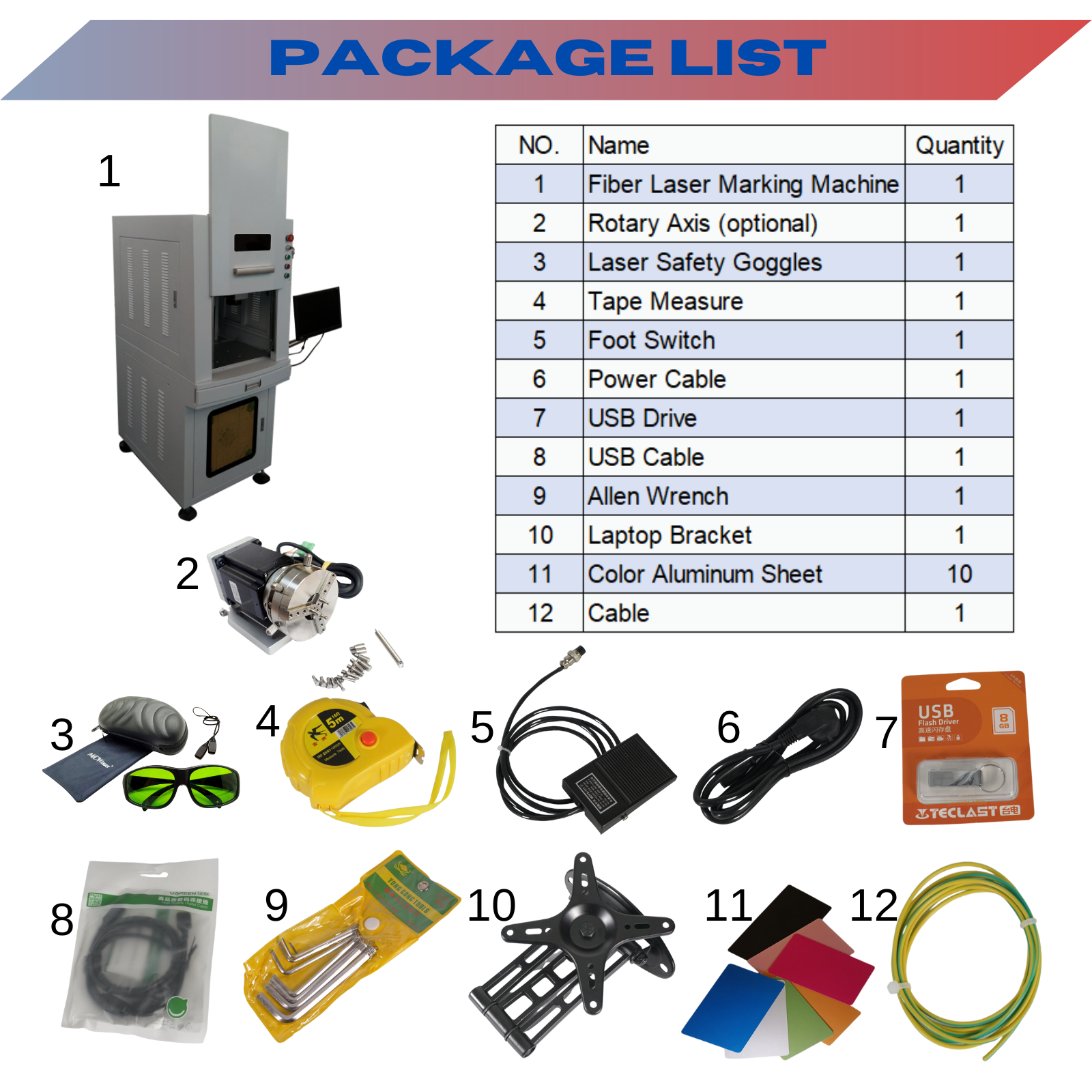

Package List

LASER POWER
LENS (Marking Area)
ROTAYR AXIS
