- Reliable and Durable Pulsed Laser: The 100W laser cleaning machine has high optical pulse energy, stable output and strong applicability. Safe cleaning of fine parts and uniform rust removal quality.
- Eifficient and Precise Cleaning: The machine has a self-developed electronic control system, can avoid excessive ablation during cleaning of both ends, and achieve efficient and precise cleaning without damaging substrate.
- Portable: Light weight, backpack style and compact structure design, which makes it able to use in narrow space, outdoor and other scenarios.
- Easy to Use Control Panel: The parameters can simply and flexibly be adjusted through the control panel, simple and convenient. 9 different languages support.
- Applications: Mechanical Processing, Cultural Relics Restoration, Mold Cleaning, Food Processing, Electronic Circuits and other industries. With the characteristics of precise positioning, it can achieve efficient cleaning of a variety of modeling workpieces.
Technical Parameters
| Operating Environment | |
| Model | MC-100-HY |
| Supply voltage | Single phase220V±10%、50/60Hz AC |
| Power consumption | ≤ 500W |
| Working environment temperature | 5℃~40℃ |
| Working environment humidity | ≤80% |
| Optical Parameters | |
| Average laser power | ≥100W |
| Power instability | ≤ 2% |
| Laser Working Mode | Pulse |
| Pulse width | 10-500ns |
| Maximum monopulse energy | 1.2mJ |
| Beam quality | ＜2.0 |
| Power regulation range（%） | 10- 100( Gradient Adjustable) |
| Repeat frequency（kHz） | 1-3000 (Gradient Adjustable) |
| Fiber length | 1.5m |
| Cooling mode | Water Cooling |
| Cleaning Head Parameters | |
| Scan range (length * width) | 0- 100mm ，continuously adjustable； |

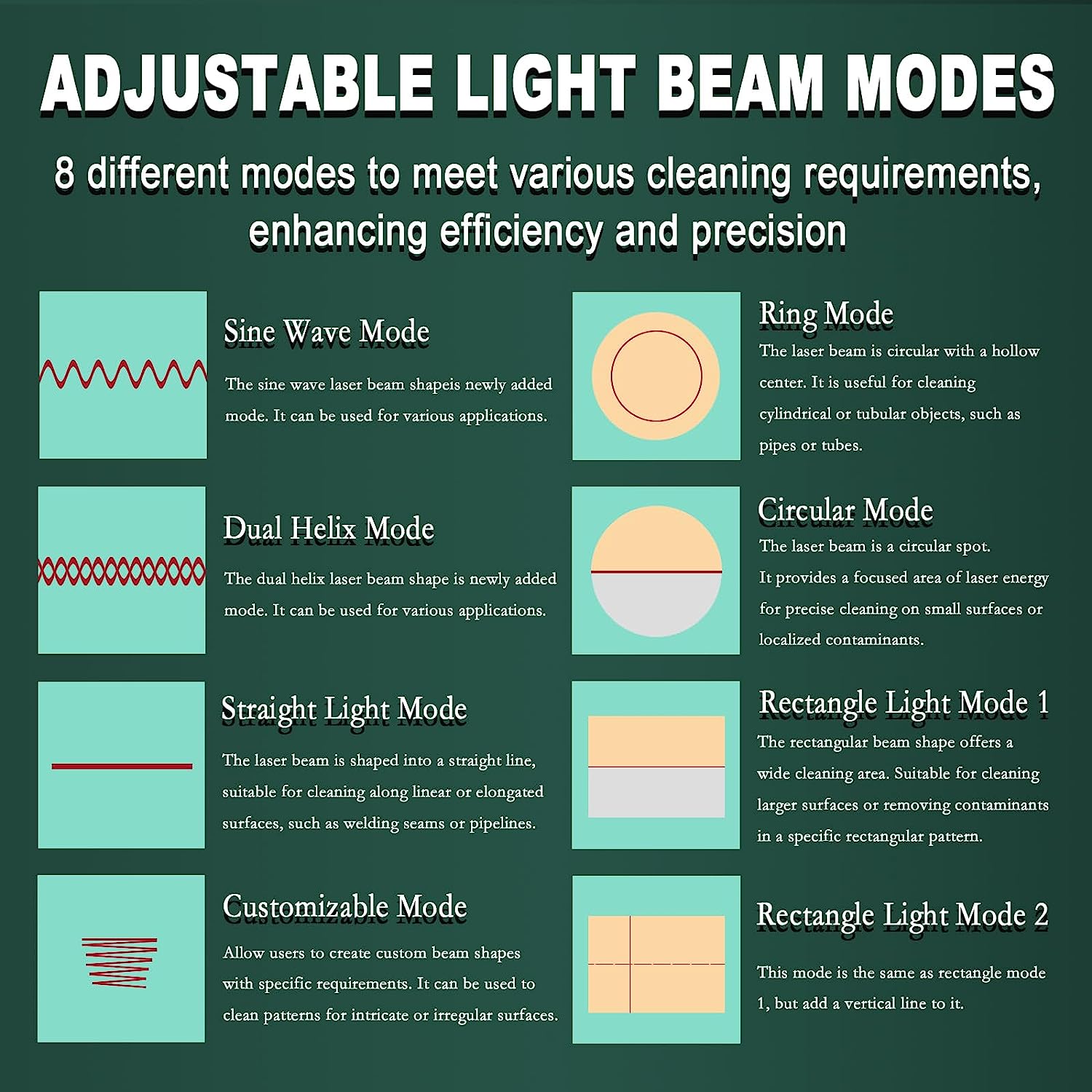

| Biaxial: supporting 8 scanning modes； | |
| Scanning frequency | 10Hz~300Hz continuously adjustable |
| Field mirror focal length（mm） | 160mm（Optional 210mm/254mm/330mm/420mm） |
| Focal Depth | 5mm |
| Mechanical Parameters | |
| Machine size（LxWxH） | 336mm×129mm×540mm |
| Machine Weight | 16Kg（Battery included） |
| Cleaning head weight | ＜0.75Kg |
| Mode of operation | Handheld/automated |
Product Details
Backpack Design
Total weight about 16kg. Portable for on-site cleaning. Convenient for complex scenarios.
Easy-to-use Control Panel
Touch screen control panel, easy to set up the parameters with your fingers. 9 language modes provided to meet your needs.
Air Cooling
Air cooling is reliable and have a longer lifespan. Quiet fan design will reduce the noise when the machine is running.
Lightweight Cleaning Head
Lightweight cleaning head. Laser output shapes can be set, for precise cleaning. Non-contact cleaning.
Simple operation,plug and work
Safe and environmental friendly,No chemical pollution,no noise, energy-saving.
High-Precision Cleaning
It is effective for selective cleaning applications where specific contaminants need to be removed without affecting the underlying substrate.

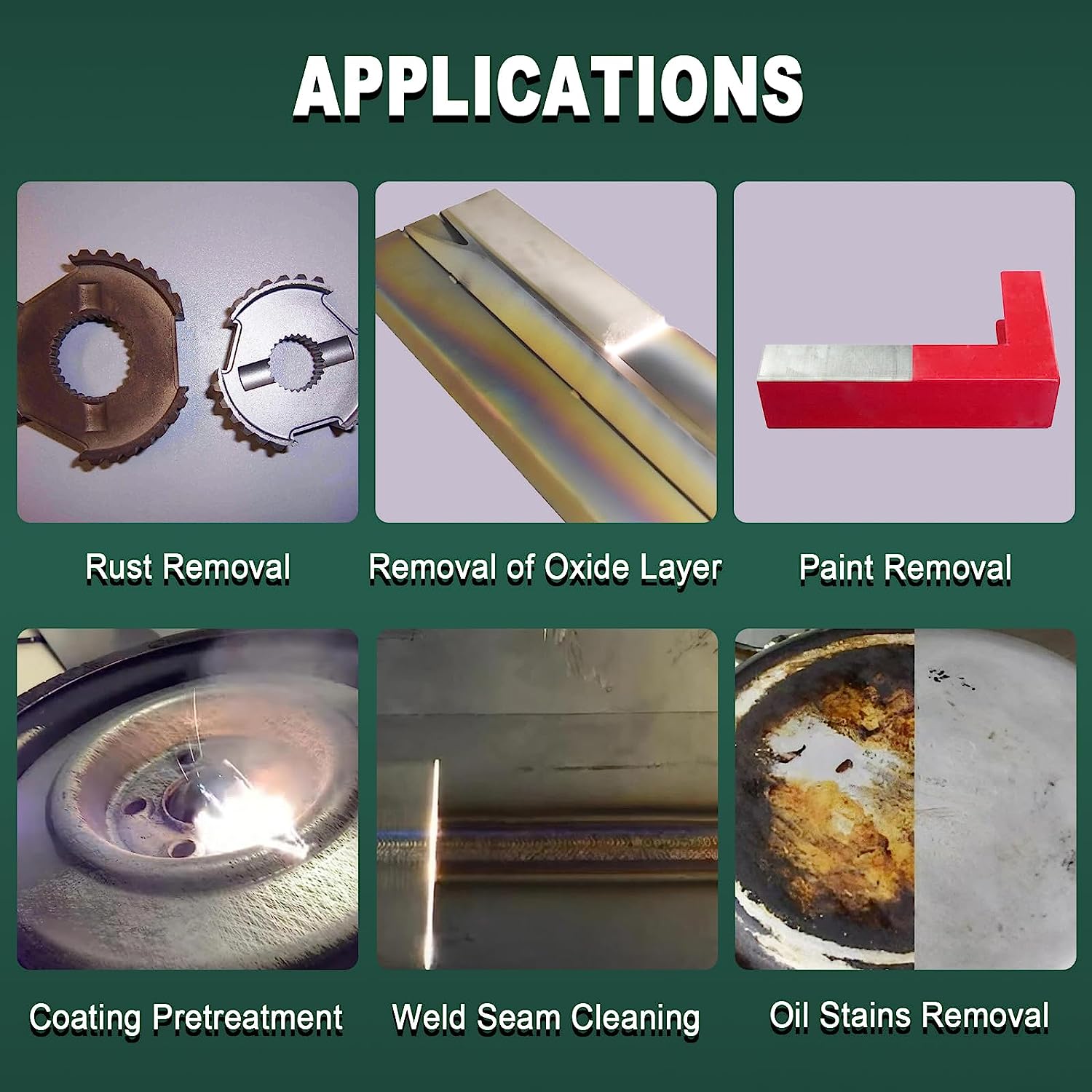

Applications
The Portable Handheld Pulse Laser Cleaning Machine is a tool designed for removing contaminants, rust, paint, and other unwanted materials from surfaces using laser technology. Offers higher precision and control over the depth of material removal. It is effective for selective cleaning applications where specific contaminants need to be removed without affecting the underlying substrate.
Its applications can be found in various industries. Some common applications include:
Metal Surface Cleaning(including Rust and Paint Removal),Industrial Maintenance,Historical Artifact Restoration,Automotive Industry,Aerospace Industry,Electronics Manufacturing, Construction Industry, Nuclear Industry, Shipbuilding and Maritime Applications,Oil and Gas Industry
GET IT TOUCH
You can contact our head-office directly,also you can contact our agent which is near you.Of course,free live-chat is available and you can get help immediately.
Customer Reviews
I have been using this unit for about 4 months now and have to say its has been very helpful cleaning auto parts and components that are greasy, and have the grime, I also use it to remove rust and paint from some old cast iron antique furniture my wife purchased, and it got rid of all the rust without hurting the base metal. I chose to go with this unit (pulsed laser cleaner) so I could have more control over the settings and make sure I did not damage the base metal of the object I'm cleaning, and this unit has a lot of parameters that you can adjust to make sure of that. I also like the compact size, and i got the battery version so I did not have to be plugged into the wall all the time, its nice that they have that option. Overall I'm really happy with the unit, and am still finding uses for it that I didn't even think of!
The cleaning effect of the product is very good. I checked the instructions and videos that MCWlaser sent me. It was very easy to get started.
I used it to clean rusted rebar and some iron fittings. it makes short work out of everything I put in front of it so far. removes rust easily and without damage.
I was tempted to spend a lot more money for a higher power system, but this one does a great job even running off of 110v.
The seller was also very patient and answered my questions. All in all highly recommended!
After much research, we found this product within our budget. It arrived well-packaged and was easy to get started with. It’s removed the rust on all sorts of tools and other objects, bare metal and painted. The largest project so far was painting, which takes more time. I want to use it on trailer and car restoration in the future. It has performed as expected. We are pleased with the purchase and would recommend this product.
Applications
Paint On Wall
Paint On Wooden Furniture
Graffiti On Wall
Paint On Marble
Weld Seam
Rust On Metal Round Tub
Paint On Metal Cans
Oxides On Metal
Paint On Car
Rust On Metal Parts
Rust On Metal Wheels
Rust On Screws
