MCWlaser 100W/200W Pulsed Laser Cleaning Machine Handheld Laser Rust Removal Machine Metal Rust, Oil Stain, Paint, Coating Removal

MCWlaser 100W/200W Pulsed Laser Cleaning Machine Handheld Laser Rust Removal Machine Metal Rust, Oil Stain, Paint, Coating Removal

MC-JPT-100

$13,150.00 USD
$14,699.99 USD $13,150.00 USD
Sale Sold out
Power
  • MCWlaser Official Quality Inspection (100% brand new original authentic).
  • Secure payments; Lifetime Tech Support (Specialists).
  • Support Shipping Worldwide, US and EU stock.
  • Good customer service. Please contact us at info@mcwlaser.com.
View full details

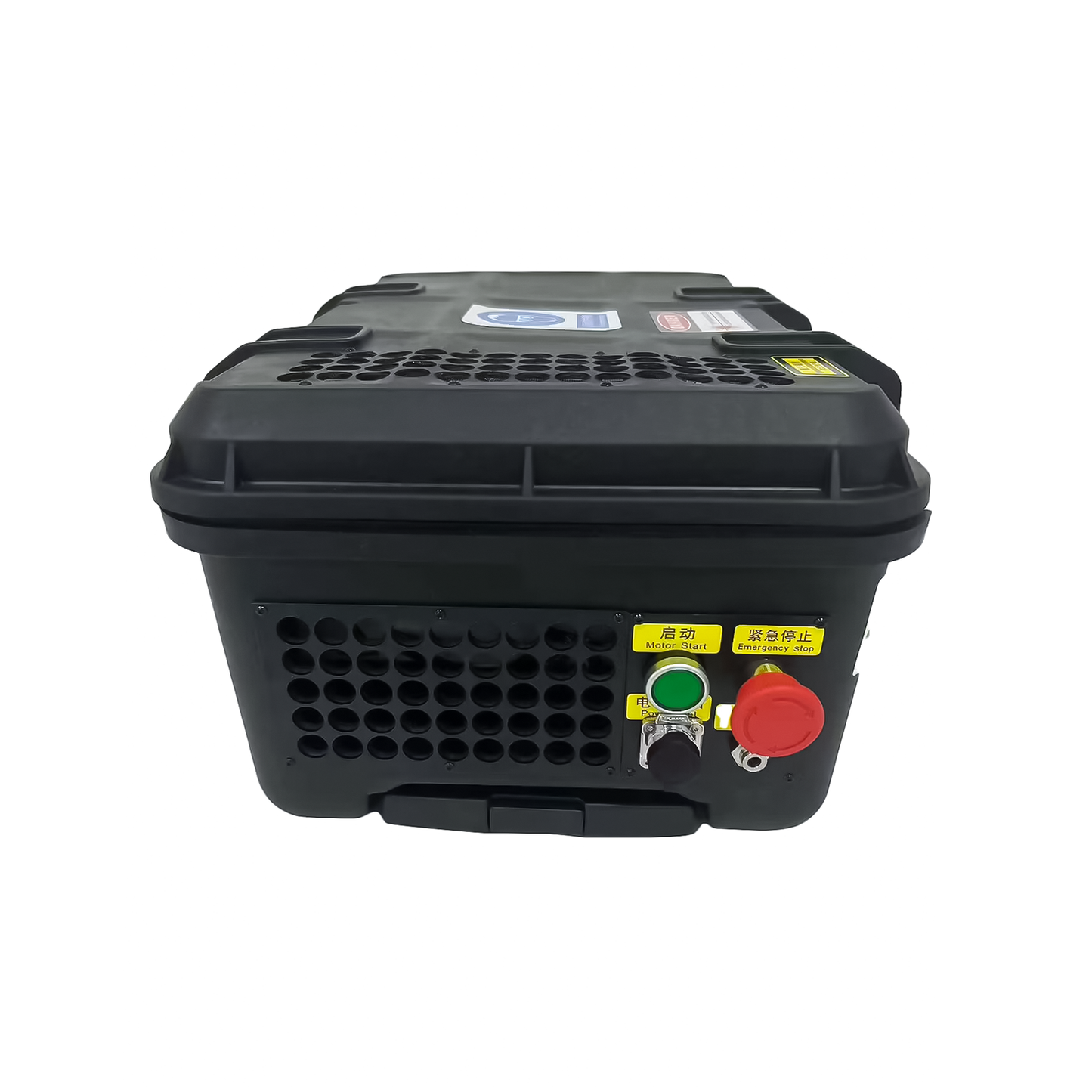

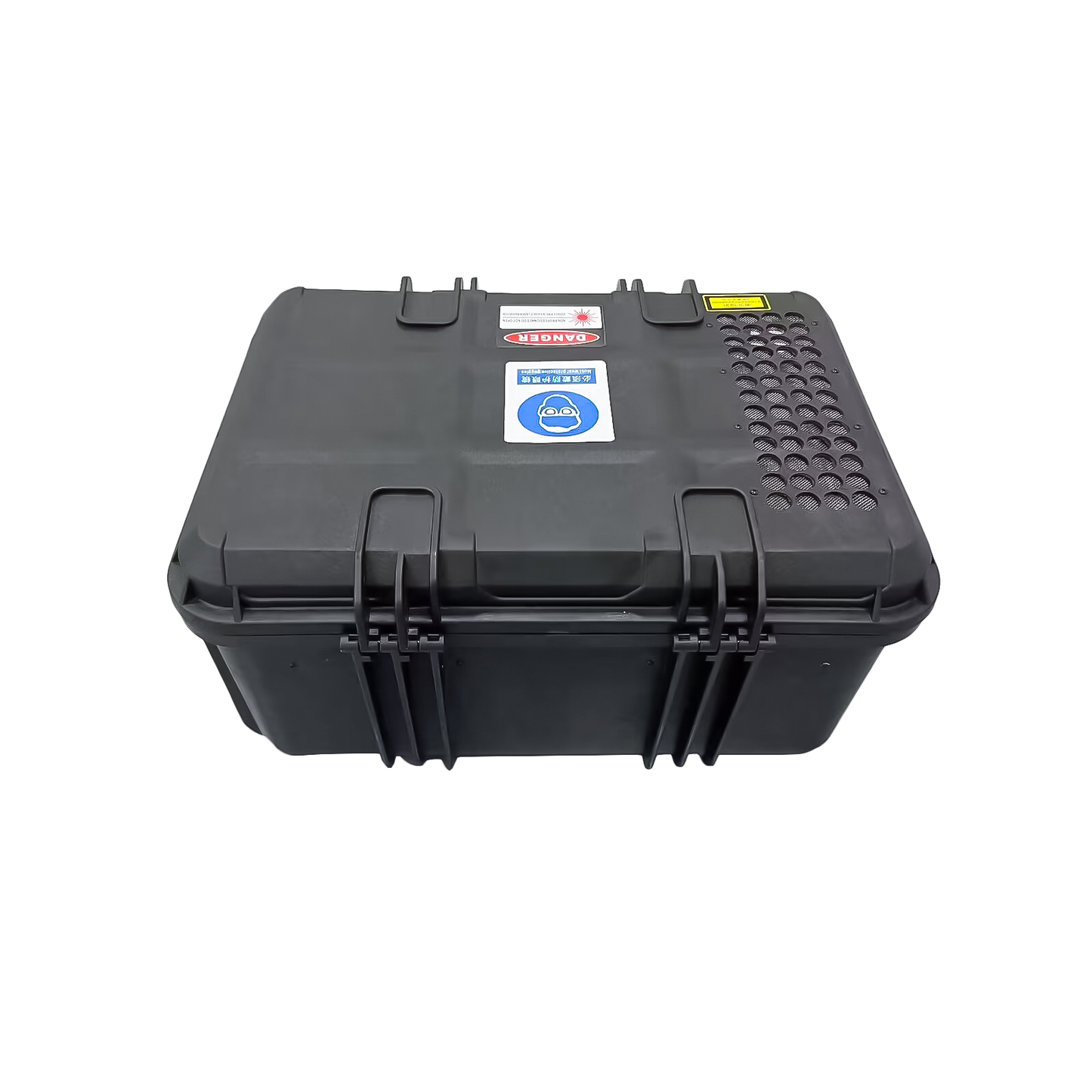

MCWlaser 100W/200W Pulsed Laser Cleaning Machine Handheld Laser Rust Removal Machine
This powerful cleanner boasts a formidable 100W/200W JPT MOPA pulsed laser source, engineered to swiftly and effectively remove rust, paint, oil, grime, and other unwanted substances from various surfaces.
When working outdoors, the outer coating of the optical fiber cable has a step-on-proof, waterproof, and dust-proof design, which is more durable.Externally suitable for 220V power supply, it can be started after connecting to the power supply.

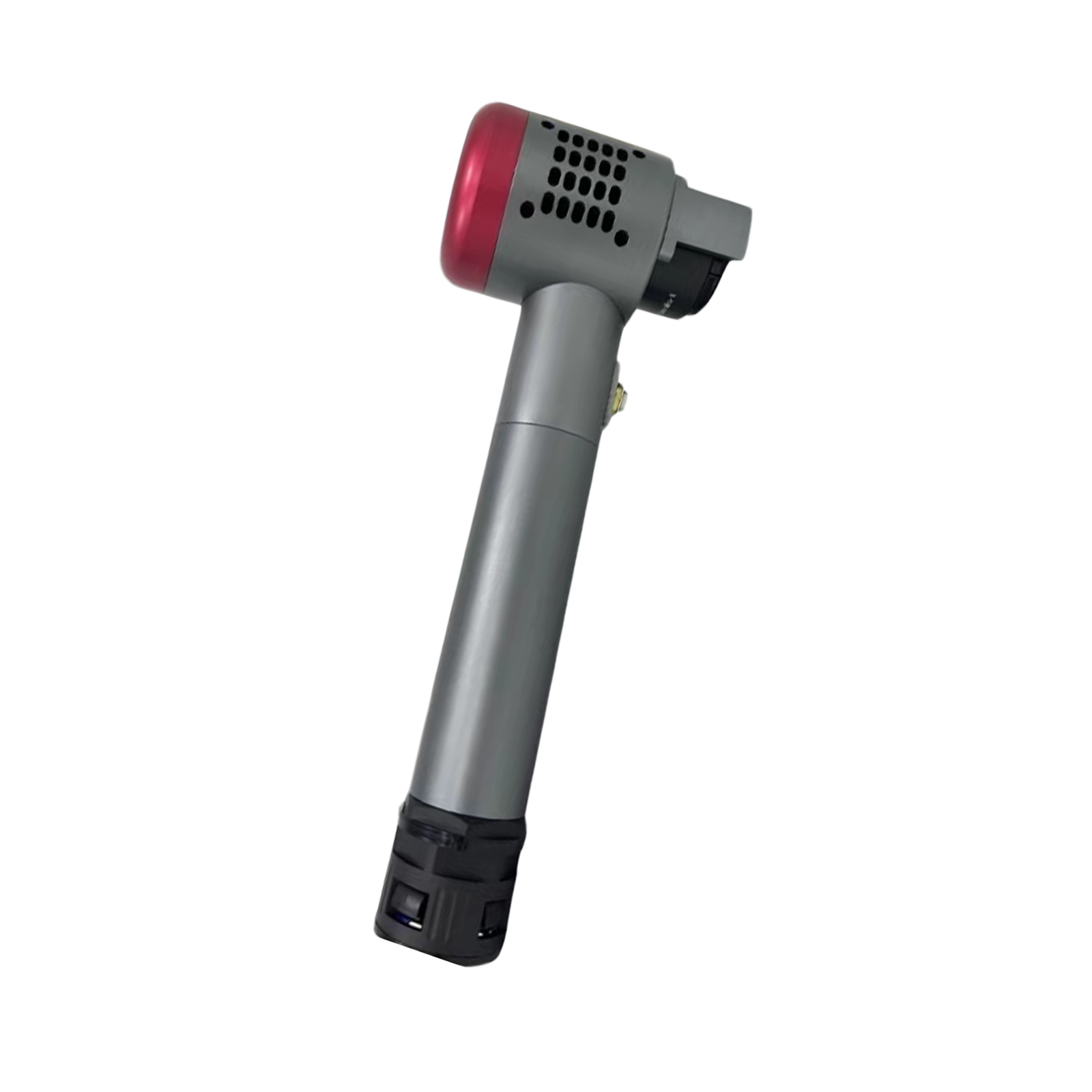

The hand-held laser head uses three red beams for focusing, which is convenient for the operation of entering the cleaning surface more quickly when working.Ordinary people can operate at any time.

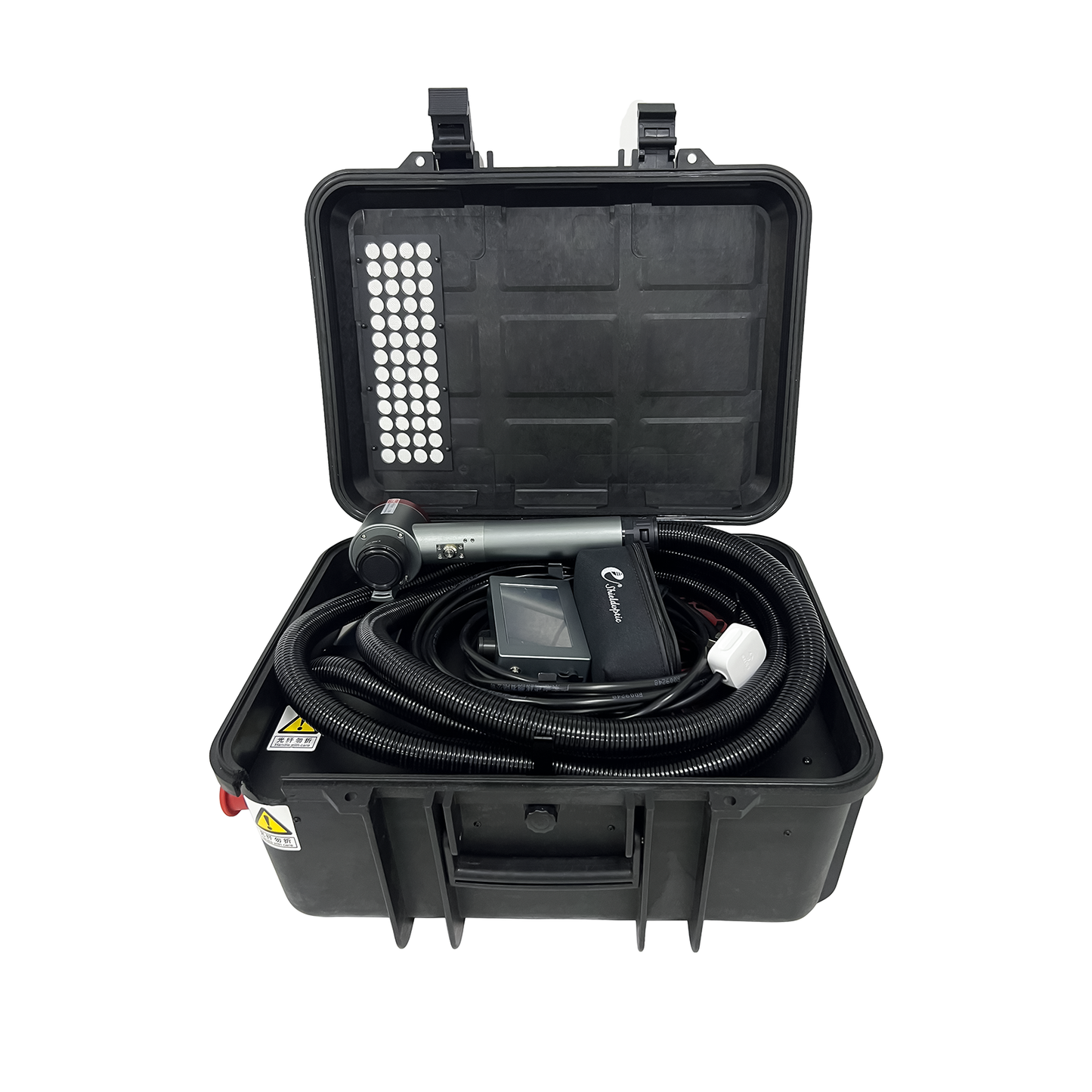

The surface laser cleaning equipment, which is easy and convenient to carry, can better serve users in the process of cleaning complex surface workpieces.

Features

1. 100W/200W JPT MOPA pulsed laser source: It has high optical pulse energy, stable output and strong applicability. Safe cleaning of fine parts and uniform rust removal quality.
2.Non-contact cleaning method: Minimal impact on base material; Low energy consumption and low noise level. Portable, lightweight, flexible, adjustable, which can efficiently remove rust, stains, and oil on the surface of the work-pieces.

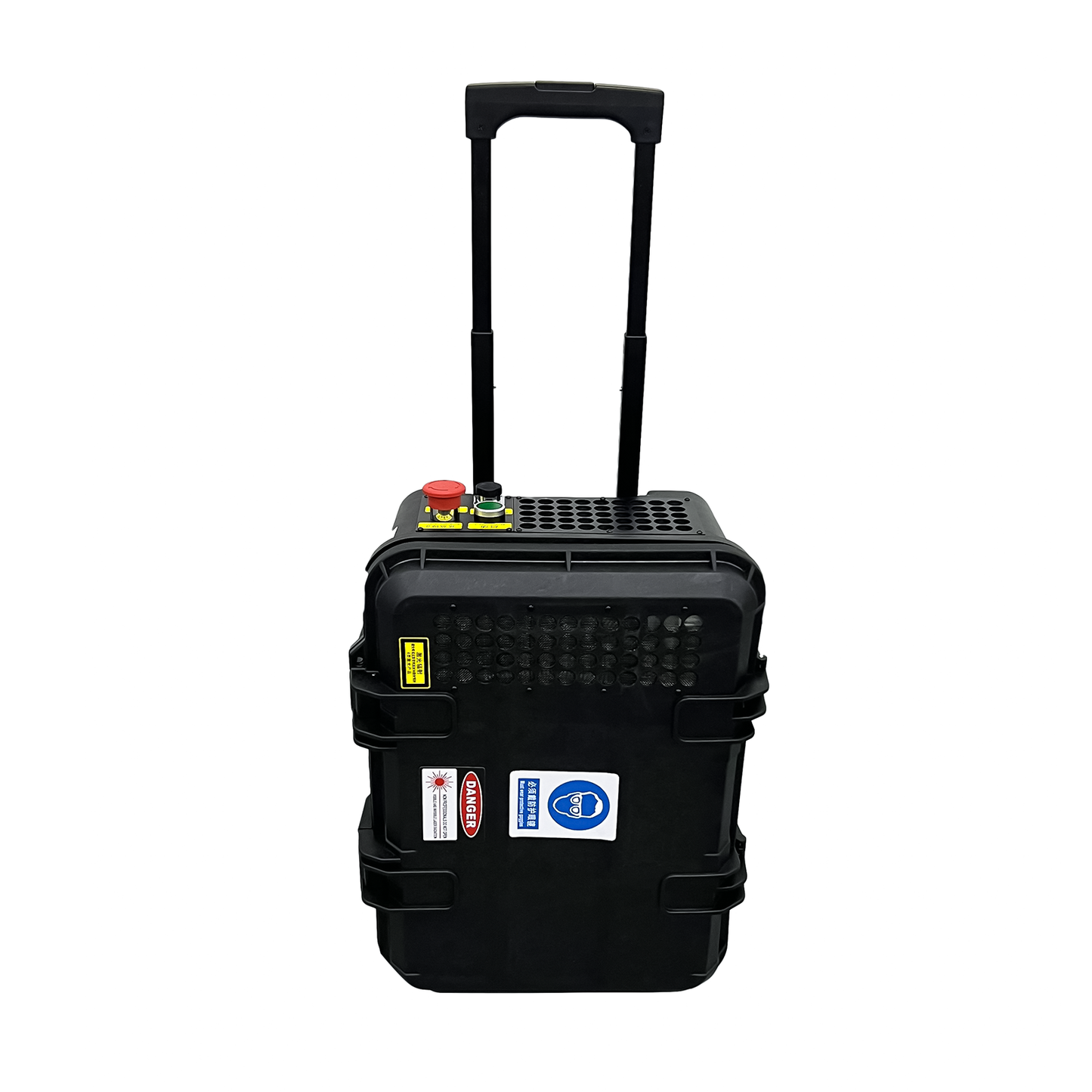

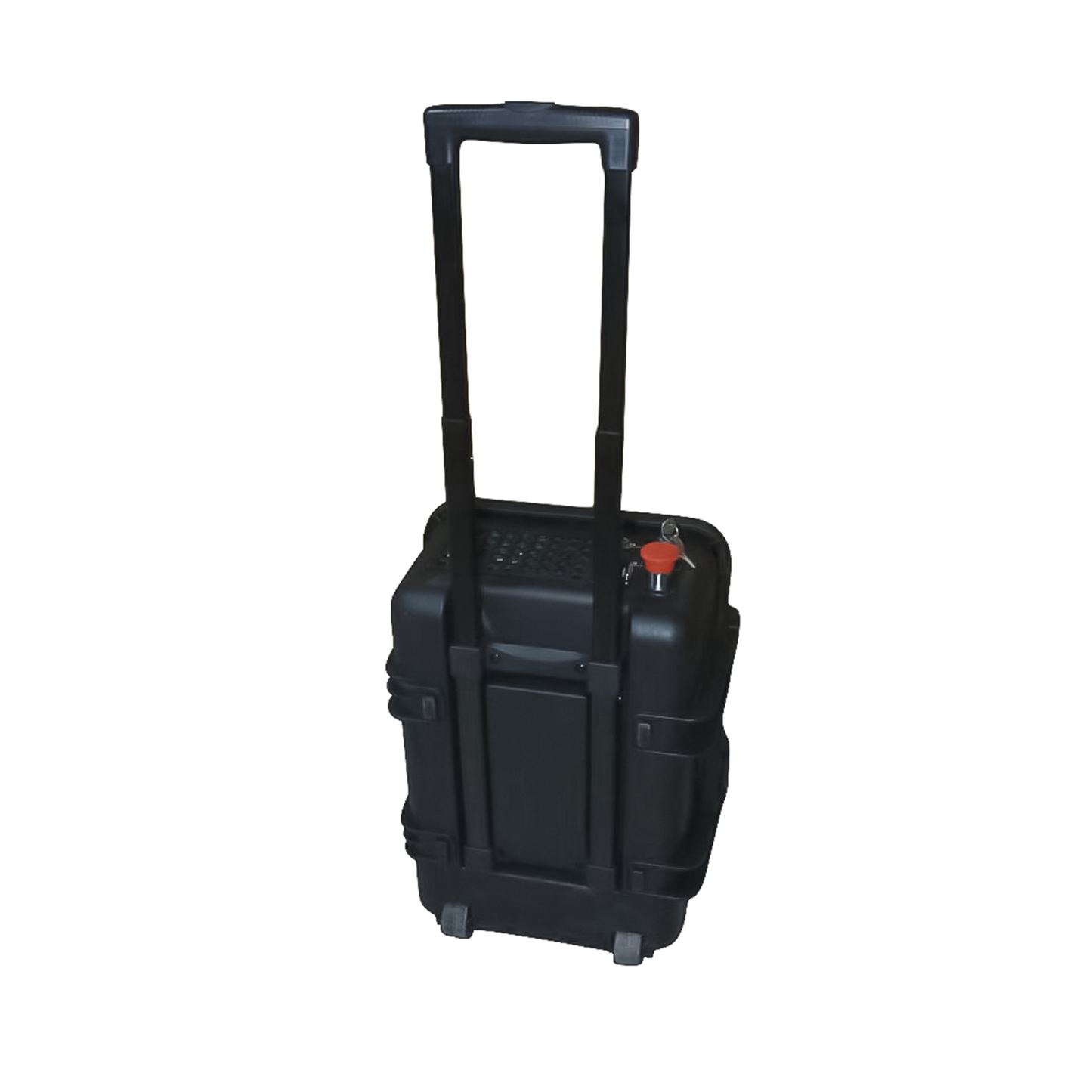

3.Laser Cleaning Host with pulleys, can easily carry.
4.Technical Support and Customer Service: We provide online and remote technical support, phone support based on US. Please feel free to contact us if you have any issues about the laser cleaning machine.

Technical Parameters

Operating Environment
Model MC-100-JPT MC-200-JPT
Supply voltage 100-240 volts AC; 50/60Hz AC
Power consumption ≤ 800W ≤ 1500W
Working environment temperature 5℃~40℃
Working environment humidity ≤80%
Optical Parameters
Average laser power ≥100W ≥200W
Power instability ≤ 2%
Laser Working Mode Pulse
Pulse width 10-500ns  13-500ns
Maximum monopulse energy 1.2mJ 2mJ
Power regulation range（%） 0- 100( Gradient Adjustable)
Repeat frequency（kHz） 1-3000 (Gradient Adjustable)
Fiber length 5m 3m
Cooling mode Air Cooling
 Cleaning Head Parameters
Scan range (length * width) 0- 100mm ，continuously adjustable；

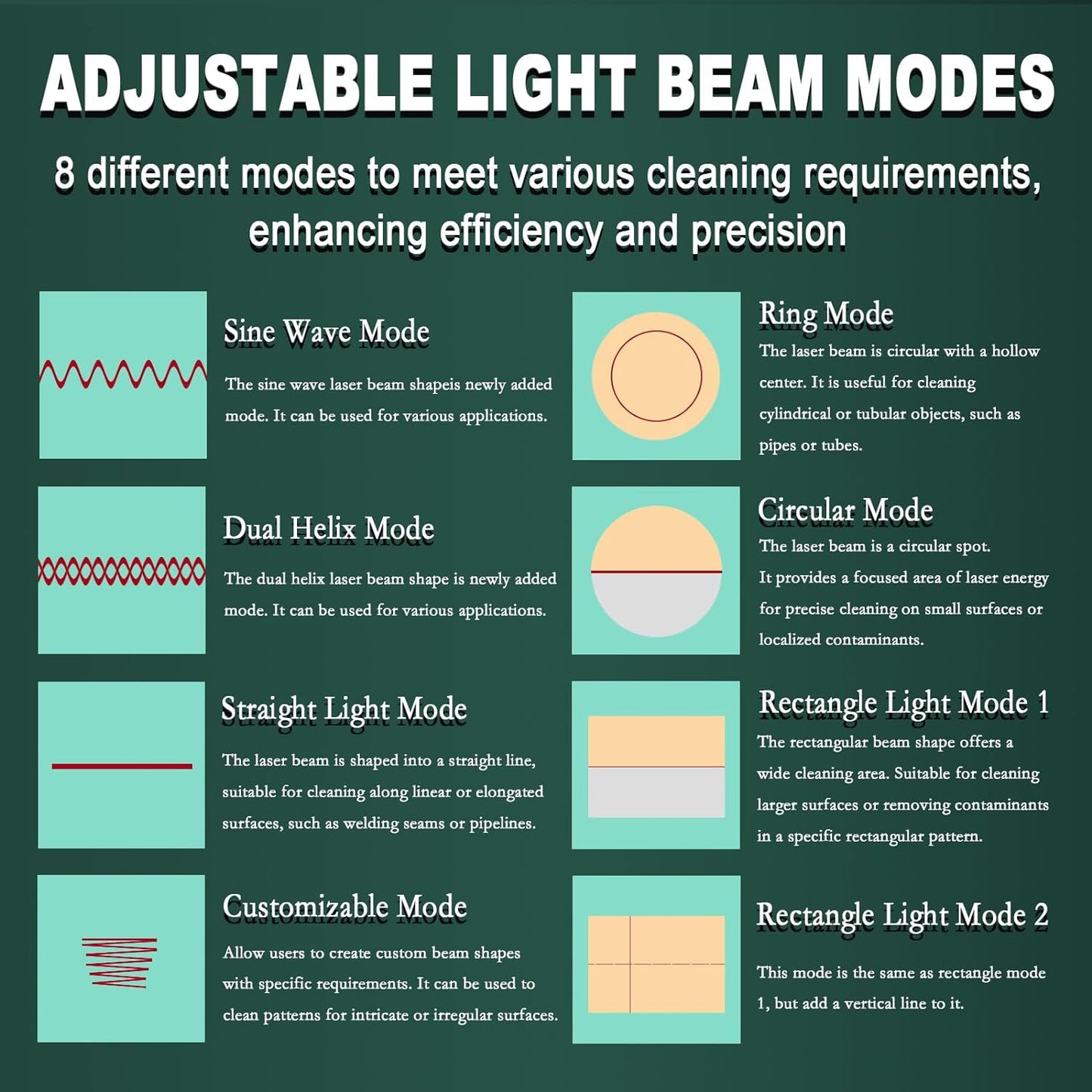

Biaxial: supporting 8 scanning modes；
Field mirror focal length（mm） 160mm（optional 210mm/254mm/330mm/420mm） 210mm（optional 160mm/254mm/330mm/420mm）
 Mechanical Parameters
Machine size (LxWxH） 617mmx469mmx291mm 500mmx390mmx255mm
Machine size Ind packaging (LxWxH） 950mmx580mmx500mm 600mmx480mmx380mm
Machine weight 28Kg 19Kg
Machine weight ind packaging  48Kg 25Kg
Cleaning head weight  ＜0.75Kg ＜0.9Kg
Mode of operation  Handheld/automated

Applications

Mechanical Processing, Cultural Relics Restoration, Mold Cleaning, Food Processing, Electronic Circuits and other industries. With the characteristics of precise positioning, it can achieve efficient cleaning of a variety of modeling work-pieces.

Packing List

Laser cleaning machine*1
Laser protective glasses *1
163 focal length lens *1
254 focal length lens *1
Handheld control card *1
Power cord* 1
USB Type-C cable* 1
