MCWlaser 50W JPT Enclosed B Type Fiber Laser Engraver Marking Machine With 5.9” X 5.9" Working Area and D69 Rotary For Metal Deep Engraving
MCWlaser 50W JPT Enclosed B Type Fiber Laser Engraver Marking Machine With 5.9” X 5.9" Working Area and D69 Rotary For Metal Deep Engraving
SKU:FLM-FBD-51R-JPT
- MCWlaser Official Quality Inspection (100% brand new original authentic).
- Secure payments; Lifetime Tech Support (Specialists).
- Support Shipping Worldwide, US and EU stock.
- Good customer service. Please contact us at info@mcwlaser.com.
Couldn't load pickup availability
Main Parmeter
Laser Power: 50W
Laser Source:JPT
Frequency: 1-600kHz
Maximum Pulse Energy: 1.5mJ
Pulse Duration: 200ns
Lens: 220x220mm lens by default.
70x70mm/110x110mm/150x150mm/175x175mm/200x200mm/300x300mm optional
Wavelength: 1064nm
Rotary Axis: Ring D69mm by default.
D80/D100mm/D125mm rotary axis optional
Marking Speed: ≤7m/s
Software: EZCad2, compatible with Lightburn;
Compatible System: Windows XP/Mista/Win7/Win8/Win10/Win11
Advantage
1. JPT laser source has advanced beam quality
2. Fully enclosed safe cabinet
3. Reliable galvanometer marking speed up to 7m/s.
4. Latest upgraded EZCAD 2.0 Software (compatible with Lightburn).
5. Stable F-theta lens
6. Double red dot positioning can quickly find focus.
7. 2-year warranty.
Size & Weight
Machine Size: 43x76x73.6cm/16.7x26.2x 29.6in(L×W×H)
Net Weight: 78Kg

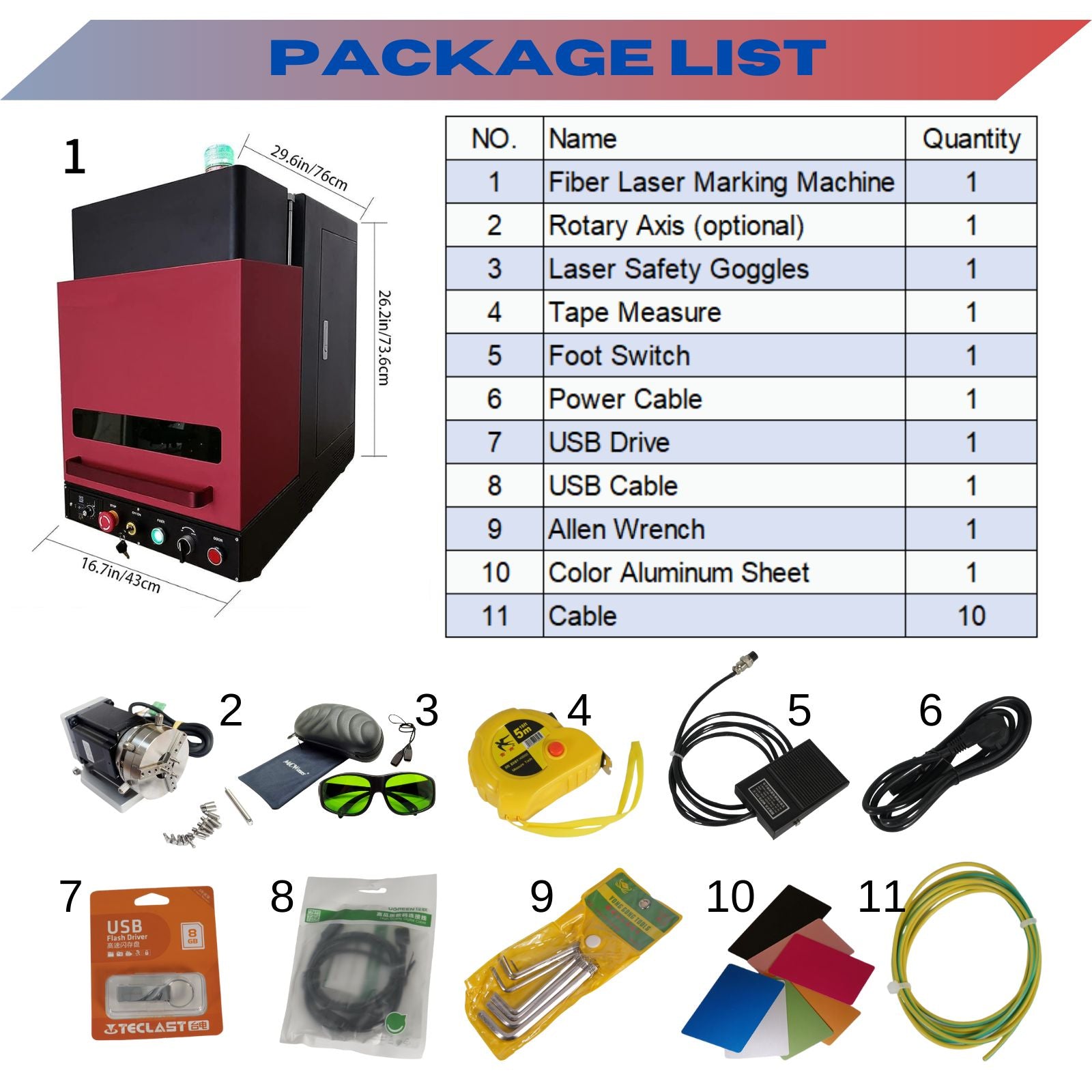

Package Include
1. Fiber Laser Marking Machine
2. Rotary Axis (D69 by default)
3. Laser Safety Goggles
4. Tape Measure
5. Foot Switch
6. Power Cable
7. USB Drive
8. USB Cable
9. Allen Wrench
10. Color Aluminum Sheet
11. Cable
12. Lens(Marking Area 150x150mm by default)
Waranty
Worldwide Waranty 2 Years
Free replacement parts during warranty period
Certification
FDA Compliant
CE Certification
Application
It is mainly used in for the fine and deep marking process of metal and non-metal materials. Such as Stainless,Artificial,Aluminum,Gold,Silver,Brass,Titanium,Tungsten,Steel,Leather,Acrylic,Hard plastics,Brick,Granite,Marble,Tile,ABS,PVC,ceramic, stone etc.
It is widely used for marking jewellery, keyboards of cell phone, auto parts, electronic components,electronic appliance, communication apparatus, sanitary wares, buckles, kitchenware, sanitary equipment's, hardware tools, knife, glasses, clock, cooker, stainless steel products etc.
Manual Download
In English:Download

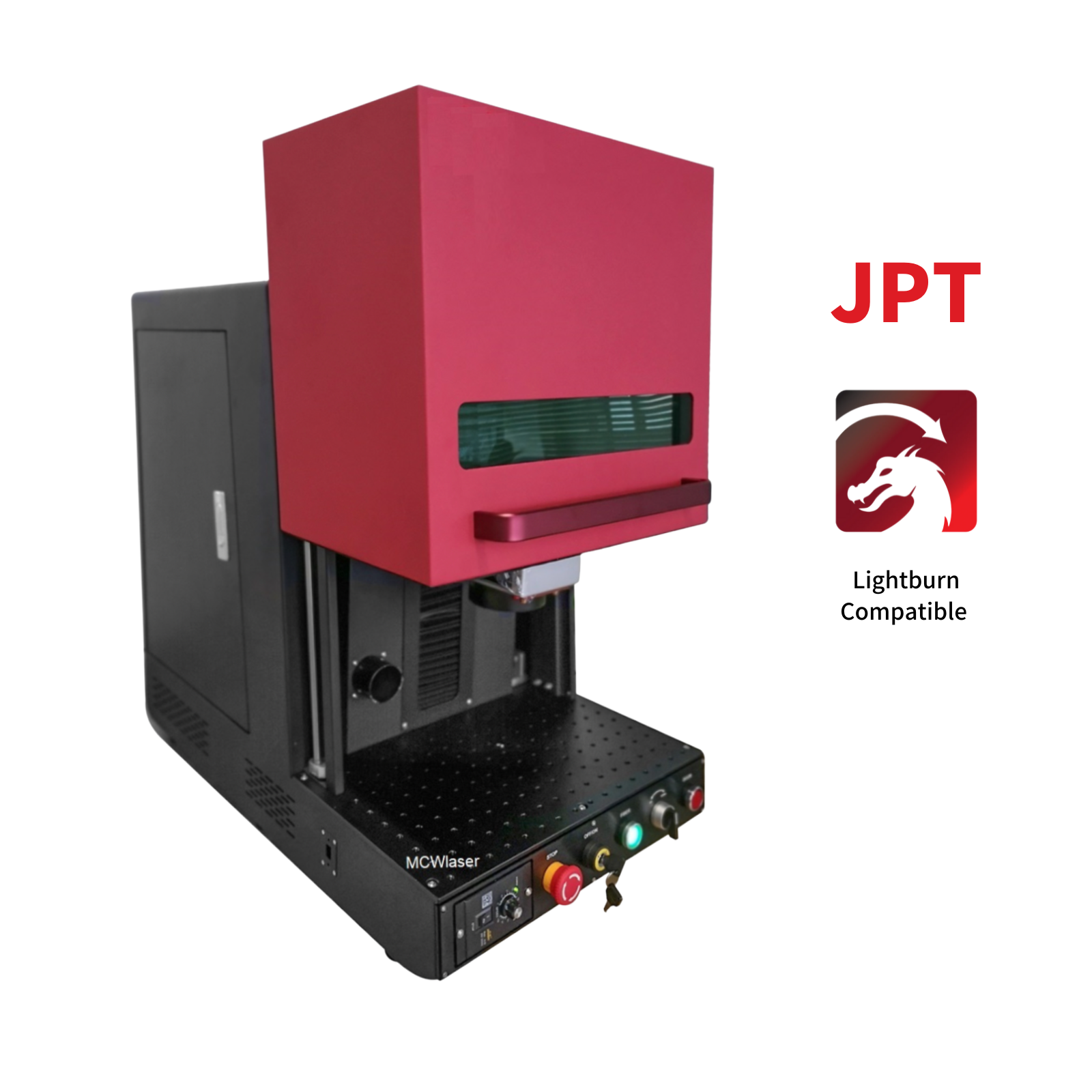

MCWlaser 50W Enclosed JPT Fiber Laser Engraver Marking Machine Type B
1. Totally-Closed Type with Observation Window.High-Rate of Electrical-Optical Conversion up to 70%; Imported laser scanning system, high marking speed max 7m/s; Re-position precision is 0.002mm; Repetition Rate Frequency 1-600kHZ; Pulse Duration 200ns
2. Double Red Dot Positioning. The focus meter allows you to quickly find the focal length by simply checking if the two red dots overlap on the surface of the product to be marked.
3. US and EU stock, free shipping, and import Duty; 4 to 6 working days to delivery; 2-Year Warranty and free replacement parts; Support customers to pick up on-site at our U.S. Warehouse. Need to pick it up on-site at our U.S. Warehouse.
Features
【JPT LP+ Laser Source】
Excellent beam quality, stable performance, and higher efficiency.Repetition Rate Frequency: 1-600kHZ; Maximum Pulse Energy: 1.25mJ;Pulse Duration: 200ns.
LP+series has perfect laser characteristics and good pulse shape control ability. Compared with Q-switched fiber lasers, the LP series lasers have more flexibility, can achieve lower and higher frequencies, and have a smaller opening delay.
Lifetime above 10,0000 hours,2-Year Warranty, and free replacement within the warranty period.
【JCZ Control Board】
The JCZ control board is designed to control the laser beam and provide precise and accurate marking on various materials.
The JCZ control board is equipped with advanced technology, including a high-speed digital signal processing system and a real-time monitoring system.
Suitable for Fiber Laser and MOPA Laser
【Stable F-theta Lens】
F-theta lenses offer a consistent focus across the entire scanning area, ensuring uniformity in laser processing.
The flat field of focus allows for faster scanning speeds. Does not require complex adjustments as it moves across the work surface.
An industry-standard M85 threading on all F-theta lenses allows for easy mounting and simple retrofitting of OEM systems.
【EZCAD2.0 Software】
The newest upgraded EZCAD2.0.Compatible with Lightburn.Win7/8/10/11/XP Compatible; Coreldraw, AutoCAD, Photoshop-compatible.
Supports PLT, PCX, DXF, BMP, etc. Multi-language interface, such as English, Spanish, German, French, Italian, Japanese, etc.; Easy to use.
Technische Parameter
Laser Power | 50W |
Marking Area | 150×150mm by default,70x70mm110×110mm,optional |
Laser Type | JPT (MOPALP+) |
Repetition Rate(frequency) | 1-600kHz |
Pulse Duration | 200ns |
outputPowerAdjustment range | 10%-100% |
Marking Speed | ≤7m/s(275.6in/s) |
Engraving Depth | ≤1mm(0.024in) |
Laser Wavelength | 1064nm |
Minimum Line Width | 0.01mm(0.0004in) Depends on the material |
Minimum Character | 0.2mm (0.0008in) Depends on the material |
Repeating precision | 0.002mm |
Control Board & Softwre | Genuine JCz Board;EZCAD2.0(Standard) |
Operating system | Compatible with Windows XPMsta/7/8/10/11 |
ommunication | Standard USB2.0 |
Supported Graphics Formats | plt, bmp.Jjpg.gif,tga,png,tif,ai,dxf,dst,etc. |
Marking lnterface | USB connection.Compatible with Windous XP/Mista/7/8/10/11 |
Communication for Automation | TCPAP,IO,RS232 |
Electrical Requirements | 110V-240V 50Hz-60Hz |
Power Consumption | 1000W |
Size

Packing List


Application
It is widely used in a variety of metals and some non-metallic materials marking; Typical materials include Aluminium Gold Silver Platinum Silver Titanium Brass Tungsten Carbide Nickel Stainless Steel Chrome Copper and nonmetals like ABS, PBT, Silicon, ABS, PS, Polymer and so on.
Certificate
FDA and CE certifications ensure product safety and compliance.
Introducing the MCWlaser 50W Enclosed JPT Fiber Laser Engraver Marking Machine Type B - the ultimate solution for easy and efficient metal and non-metal marking and engraving.
With its imported high-speed galvanometer fast focus and double red light device, focusing is made easy for you. The machine is certified by FDA and CE, ensuring high-quality output. Not only that, you can rest assured with our 2-year warranty and lifetime free technical support, even if you experience some challenges along the way.
Here are some features of the machine that you should know about:
-
JPT Laser Source: This state-of-the-art laser source offers advanced beam quality, stable power output, and a higher marking speed. It has a long service life of up to 100,000 hours, and comes with a free replacement within 2 years.
-
Reliable Galvanometer: The machine's imported high-speed galvanometer scanning head allows for a marking speed of up to 7m/s. It has a high electrical-optical conversion rate of up to 70%, ensuring high-precision, high-efficiency, and a long life span.
-
Controller and Software: The machine features the newest upgraded EZCAD 2.0 controller, which is compatible with Lightburn. It supports multiple languages, making it easy to operate, and is compatible with Windows XP/Vista/7/8/10.
-
Stable F-Theta Lens: The machine's stable F-theta lens offers energy uniformity and little attenuation, resulting in a small focus spot for deep edge marking. The machine is available in various working areas: 70×70mm, 110×110mm, and 150×150mm - pick the one that suits your needs best.
-
Red Light Positioning: Finally, the machine's double red point positioning system helps you quickly find the focal length. Simply look at the surface of the product to be marked to see if the two red dots overlap.
Choose the MCWlaser 50W Enclosed JPT Fiber Laser Engraver Marking Machine Type B for superior marking and engraving results.
