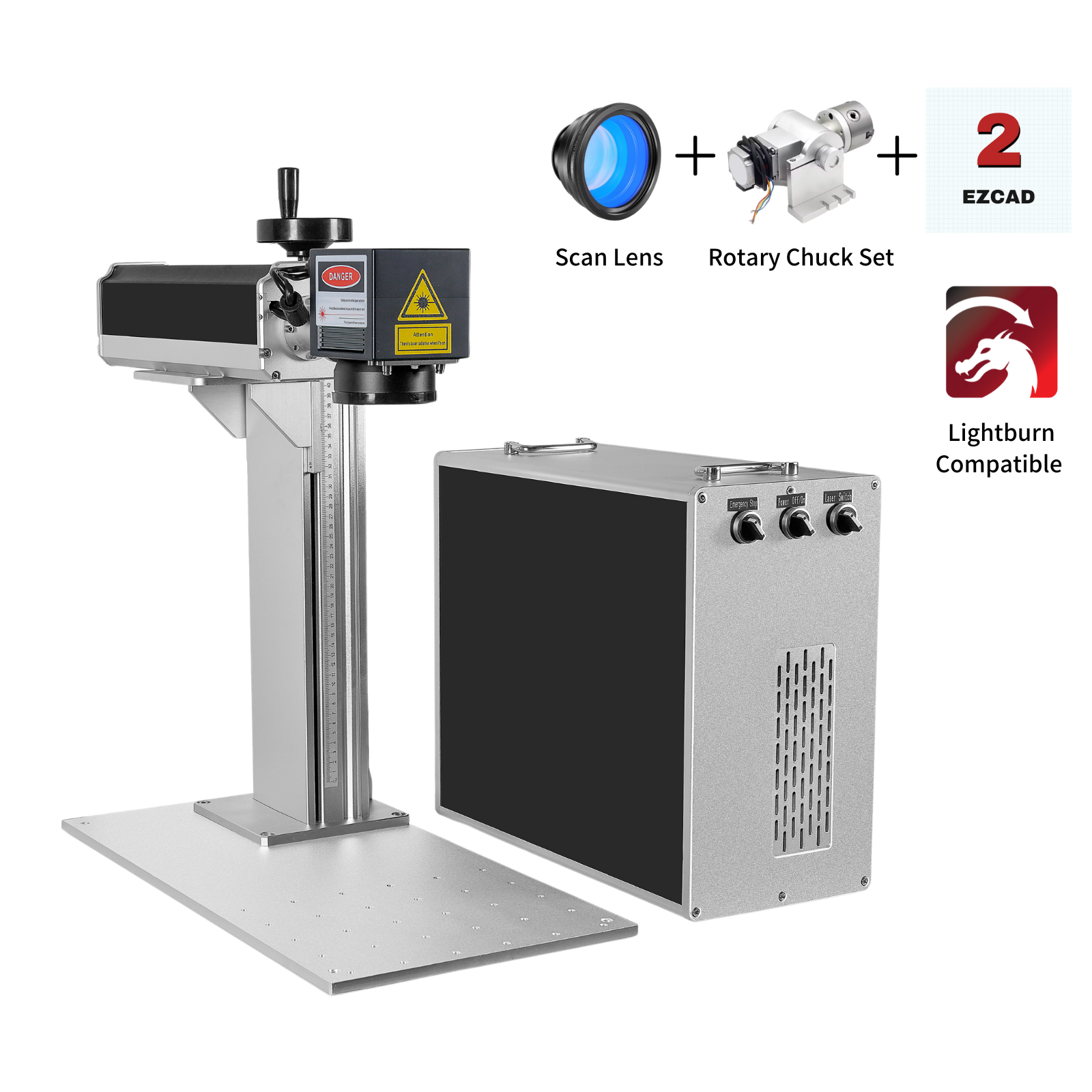

MCWlaser 50W JPT Split Type Fiber Laser Engraver Marking Machine With 8.7” X 8.7“ Working Area and D80 Rotary For Metal Deep Engraving

$6,699.00 $4,989.00 Save 26%
SHIPPING FROM: China/5-9 Days
  • MCWlaser Official Quality Inspection (100% brand new original authentic).
  • Secure payments; Lifetime Tech Support (Specialists).
  • Support Shipping Worldwide, US and EU stock.
  • Good customer service. Please contact us at

Main Parmeter

Laser Power: 50W
Laser Source:JPT
Frequency: 1-600kHz
Maximum Pulse Energy: 1.5mJ
Pulse Duration: 200ns
Lens: 220x220mm lens by default.
70x70mm/110x110mm/150x150mm/175x175mm/200x200mm/300x300mm optional
Wavelength: 1064nm
Rotary Axis: Three-jaw D80mm by default.
D69/D100mm/D125mm rotary axis optional
Marking Speed: ≤7m/s
Software: EZCad2, compatible with Lightburn;
Compatible System: Windows XP/Mista/Win7/Win8/Win10/Win11


1. JPT laser source has advanced beam quality
2. Reliable galvanometer marking speed up to 7m/s.
3. Latest upgraded EZCAD 2.0 Software (compatible with Lightburn).
4. Stable F-theta lens
5. Double red dot positioning can quickly find focus.
6. 2-year warranty.

Size & Weight

*Machine Size:30.5x60x66cm/11.9x23.4x 26in(L×W×H)
*Net Weight:55Kg

Package Include

1. Fiber Laser Marking Machine
2. Rotary Axis (D80 by default)
3. Laser Safety Goggles
4. Tape Measure
5. Foot Switch
6. Power Cable
7. USB Drive
8. USB Cable
9. Allen Wrench
10. Laptop Bracket
11. Color Aluminum Sheet
12. Cable
13.Lens(Marking Area 220x220mm by default)


Worldwide Waranty 2 Years
Free replacement parts during warranty period


FDA Compliant
CE Certification


It is mainly used in for the fine and deep marking process of metal and non-metal materials. Such as Stainless,Artificial,Aluminum,Gold,Silver,Brass,Titanium,Tungsten,Steel,Leather,Acrylic,Hard plastics,Brick,Granite,Marble,Tile,ABS,PVC,ceramic, stone etc.
It is widely used for marking jewellery, keyboards of cell phone, auto parts, electronic components,electronic appliance, communication apparatus, sanitary wares, buckles, kitchenware, sanitary equipment's, hardware tools, knife, glasses, clock, cooker, stainless steel products etc.

Manual Download

In English:Download
In German:Download

SHIPPING FROM: China/5-9 Days


【JPT LP+ Laser Source】
Excellent beam quality, stable performance, and higher efficiency.Repetition Rate Frequency: 1-600kHZ; Maximum Pulse Energy: 1.25mJ;Pulse Duration: 200ns.

LP+series has perfect laser characteristics and good pulse shape control ability. Compared with Q-switched fiber lasers, the LP series lasers have more flexibility, can achieve lower and higher frequencies, and have a smaller opening delay.

Lifetime above 10,0000 hours,2-Year Warranty, and free replacement within the warranty period.

【JCZ Control Board】
The JCZ control board is designed to control the laser beam and provide precise and accurate marking on various materials.

The JCZ control board is equipped with advanced technology, including a high-speed digital signal processing system and a real-time monitoring system.

Suitable for Fiber Laser and MOPA Laser

【Double Red Dot Positioning System】
The red point positioning system can quickly find the focal length without any tools.
Correct Working Distance; Easy to work with.

【Reliable Galvanometer】
The high-speed galvanometer scanning head greatly reduces the delay .Outstanding stability and fast speed up to 7m/s (275.6in/s)
Good running stability, high positioning accuracy, fast marking speed, and strong anti-interference ability.


【Stable F-theta Lens】
F-theta lenses offer a consistent focus across the entire scanning area, ensuring uniformity in laser processing.
The flat field of focus allows for faster scanning speeds. Does not require complex adjustments as it moves across the work surface.
An industry-standard M85 threading on all F-theta lenses allows for easy mounting and simple retrofitting of OEM systems.

【EZCAD2.0 Software】
The newest upgraded EZCAD2.0.Compatible with Lightburn.Win7/8/10/11/XP Compatible; Coreldraw, AutoCAD, Photoshop-compatible.Supports PLT, PCX, DXF, BMP, etc. Multi-language interface, such as English, Spanish, German, French, Italian, Japanese, etc.; Easy to use.

Technische Parameter

Laser Power 50W
Marking Area 220x220mm(8.7×8.7in)by default,110×110mm(4.3×4.3in),150×150mm(5.9×5.9in),
175×175mm(6.9x6.9in),200x200mm(7.9 X 7.9in)
Laser Type JPT Laser Source
Maximum pulse energy 1.5mJ
Repetition Rate(frequency) 1-600kHz
Pulse Duration 200ns
Output Power Adjustment Range 10%-100%
Marking Speed ≤7m/s(275.6in/s)
Engraving Depth ≤1mm(0.024in)
Laser Wavelength 1064nm
Minimum Line Width 0.01mm(0.0004in) Depends on the material
Minimum Character 0.2mm(0.0008in) Depends on the material
Repeating precision 0.002mm
Control Board & Softwre Genuine JCZ Board;Newest Version Ezcad2 Software
Operating system Compatible with Windows xPMista/7/8/10
Communication Standard USB2.0
Supported Graphics Formats plt,bmp.jipg.gif,tga,png,tif,ai,dxf,dst,etc.
Marking lnterface USB connection.Compatible with Win 7/8/10/11/XP
Communication for Automation TCP/IP,IO,RS232
Electrical Requirements 110V-240V/50Hz-60Hz
Power Consumption 1000W

Packing List


Both for Industry and business; Mainly used for metal material (typical: Steel, stainless steel, silver, gold,copper, alloy, aluminum, etc); part non-metal material (typical: ABS, PVC, PES, plastic, ceramic, leather, etc. )


FDA and CE certifications ensure product safety and compliance.
